RD-200
Standalone RFID proximity reader
Installation guide
The RD-200 is a standalone RFID (Radio Frequency Identification) proximity reader,
designed to connect to PIMA's HUNTER-PRO Series intruder alarm systems and be used to
arm and disarm the panels.
The users can arm the systems to all arming modes: Full, "Home 1" and "Home 2"
The RD-200 connects to the panel over the panel's BUS.
The RD-200 box has a built-in tamper switch.
The RD-200 cannot be used to arm/disarm partitions!
Mounting guidelines
1.
Remove the decorative cover (it is supplied
inserted half way).
2.
Mount the reader's box. See F igure 1.
Screws are not supplied.
3.
Place the decorative cover on the reader and
push it all the way.
If you need to remove the cover after installation,
insert a flat screwdriver between the reader's top and
the mounting surface and rotate the screwdriver so it
pushes the cover away from the surface.
Connecting the RD-200
Connect the RD-200 to HUNTER-PRO Series' BUS and TMPR input, as described in the
next table and diagram.
BUS
"KEYPAD"
RD-200
terminals
1 -
Brown
2 +
Red
3 IN
Orange
4 OUT
Yellow
1
In system versions up to 6.32 the RD-200 can only be used to arm to full mode and the LEDs don't
give indication on the zone status
Tamper switch
"KEYPAD"
RD-200
terminals
TMPR1
White
GND (-)
Black
44.5mm

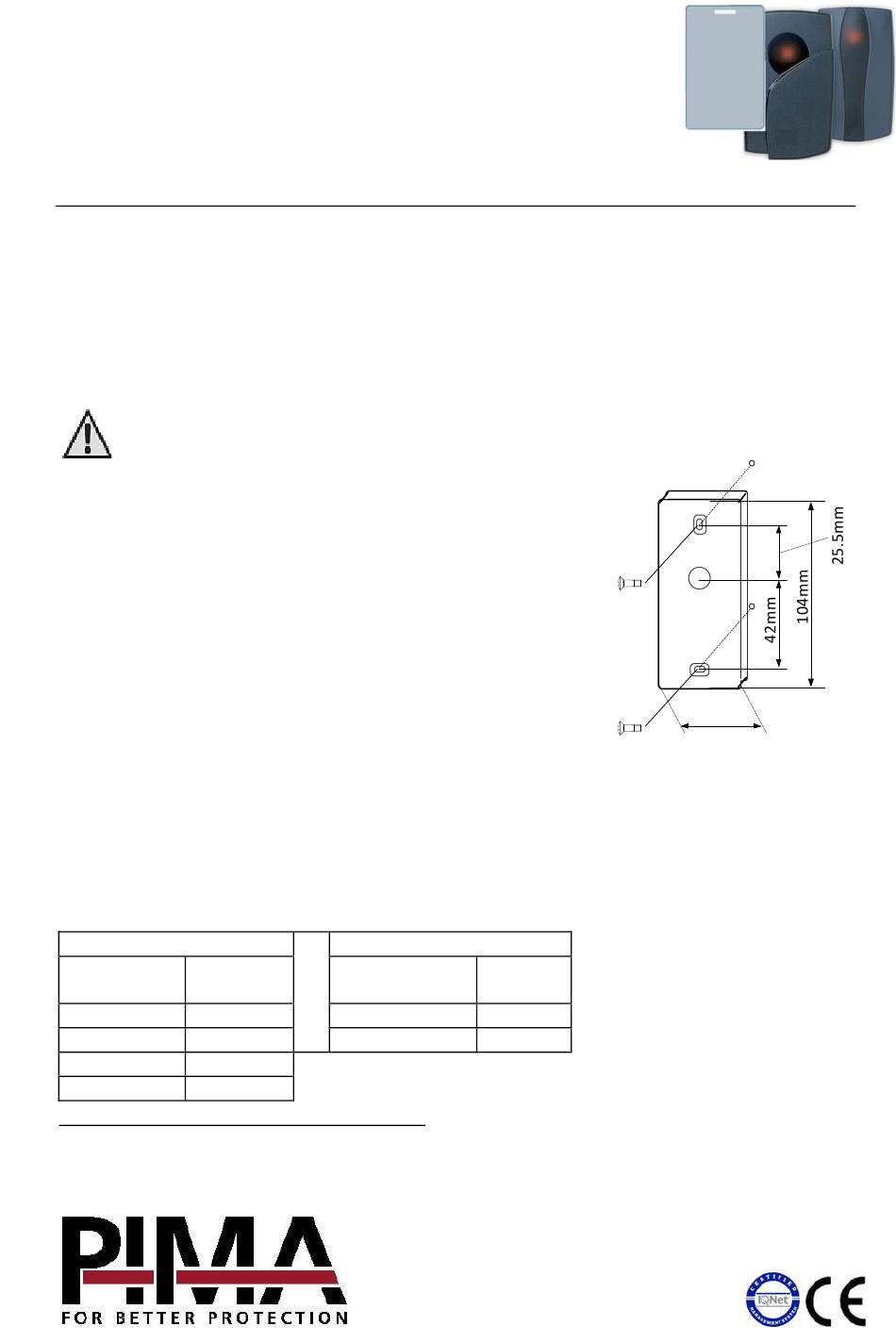

Figure 1.
Mounting diagram
1
.
