Installation & Programming Guide
net4pro-i is a PIMA XPort
series (832/896/8144) to CMS (Central Monitoring Station) via LAN/WAN. It carries a static
IP number, which can only be programmed through PIMA's software, Comax, and it is
programmed with a dedicted cable (p/n 3411079) that is not included in the package.
W
'
HAT
S IN THE PACKAGE
The package contains the net4pro-i, mounted on a metal plate, and a 4-wire serial cable for
connecting the unit to the control panel.
I
NSTALLATION
The net4pro-i is supplied ready to be attached inside the control panel case. Before installing
it, make sure it is not connected to power!
1. Unscrew the upper-right control panel's PCB screw, attach the net4pro-i metal plate to
the case and screw the plate to the PCB (see the images below)
2. Connect the 4-wire cable between the net4pro-i and the PCB SERIAL connector
3. Connect the net4pro-i to the LAN/WAN using a network cable
PIMA Electronic Systems Ltd.
net4pro-i
®
based Network Interface Card for connecting the Hunter-Pro
?
P/N 4410272 A1, XX en (June 2009)
1
Advertisement
Summary of Contents for Pima net4pro-i
- Page 1 (p/n 3411079) that is not included in the package. ’ S IN THE PACKAGE The package contains the net4pro-i, mounted on a metal plate, and a 4-wire serial cable for connecting the unit to the control panel. NSTALLATION The net4pro-i is supplied ready to be attached inside the control panel case.

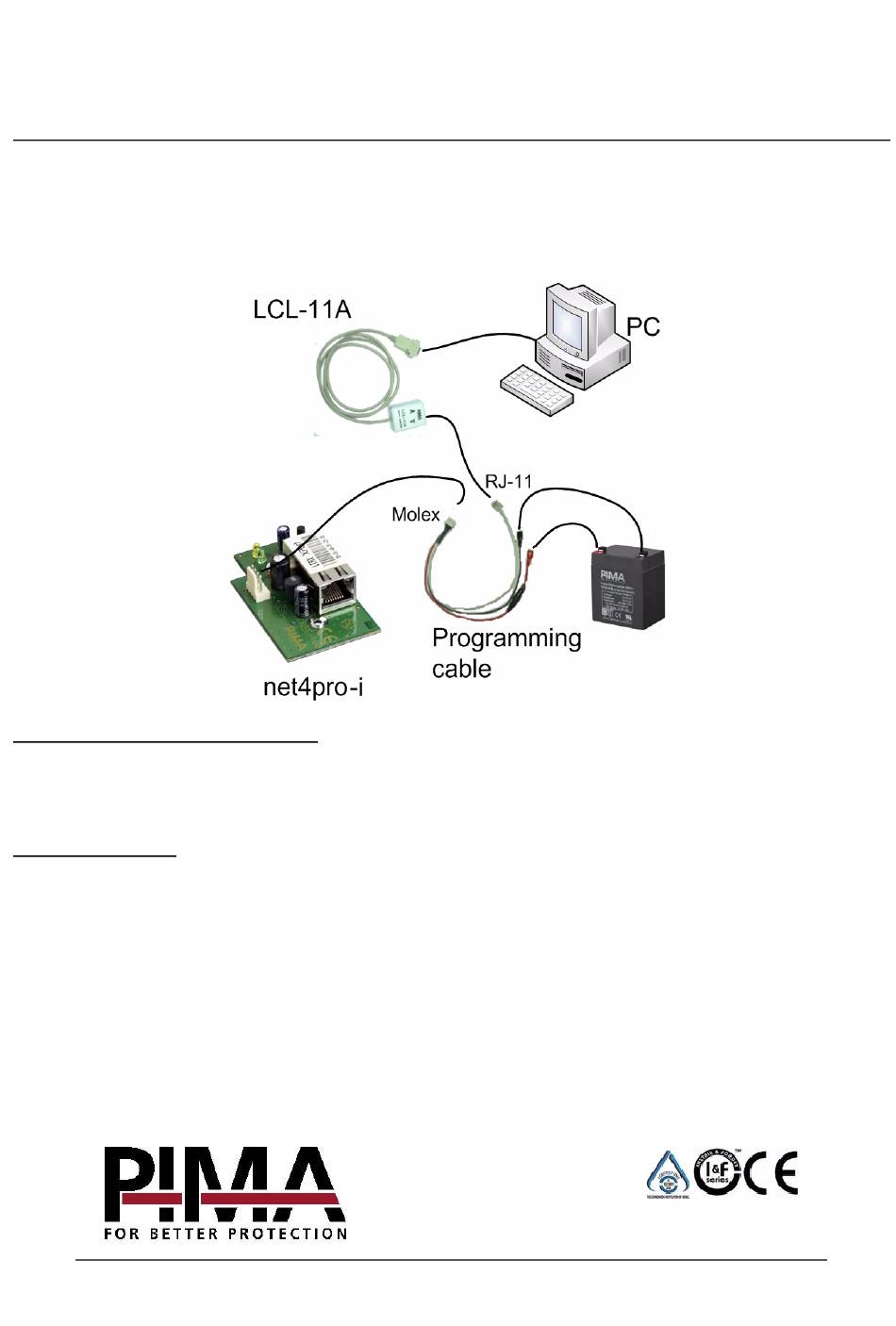

- Page 2 ROGRAMMING THE WITH OMAX 1. Connect the programming cable to the net4pro-i (using a Molex connector), to a PC with Comax installed in it, via LCL-11A (using RJ-11 connector) and to the battery (beware of polarity). 2. Run Comax, choose net4pro-i module and enter the parameters (see next).
- Page 3 3. Net mask: The target PC network mask 4. Remote IP: The target PC IP number 5. Remote port: The port through which the target PC receives data from the net4pro-i 6. Encryption key: Use the same key of the NETsoft/PIMAnet Pro Note: In case the net4pro-i is connected to DHCP server, do not change the default IP 000.000.004.000...
