B.One Eazy
Model: B.One Eazy 1.0
USER MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1.0 and is the answer not in the manual?

Questions and answers

Summary of Contents for B.One Eazy 1.0

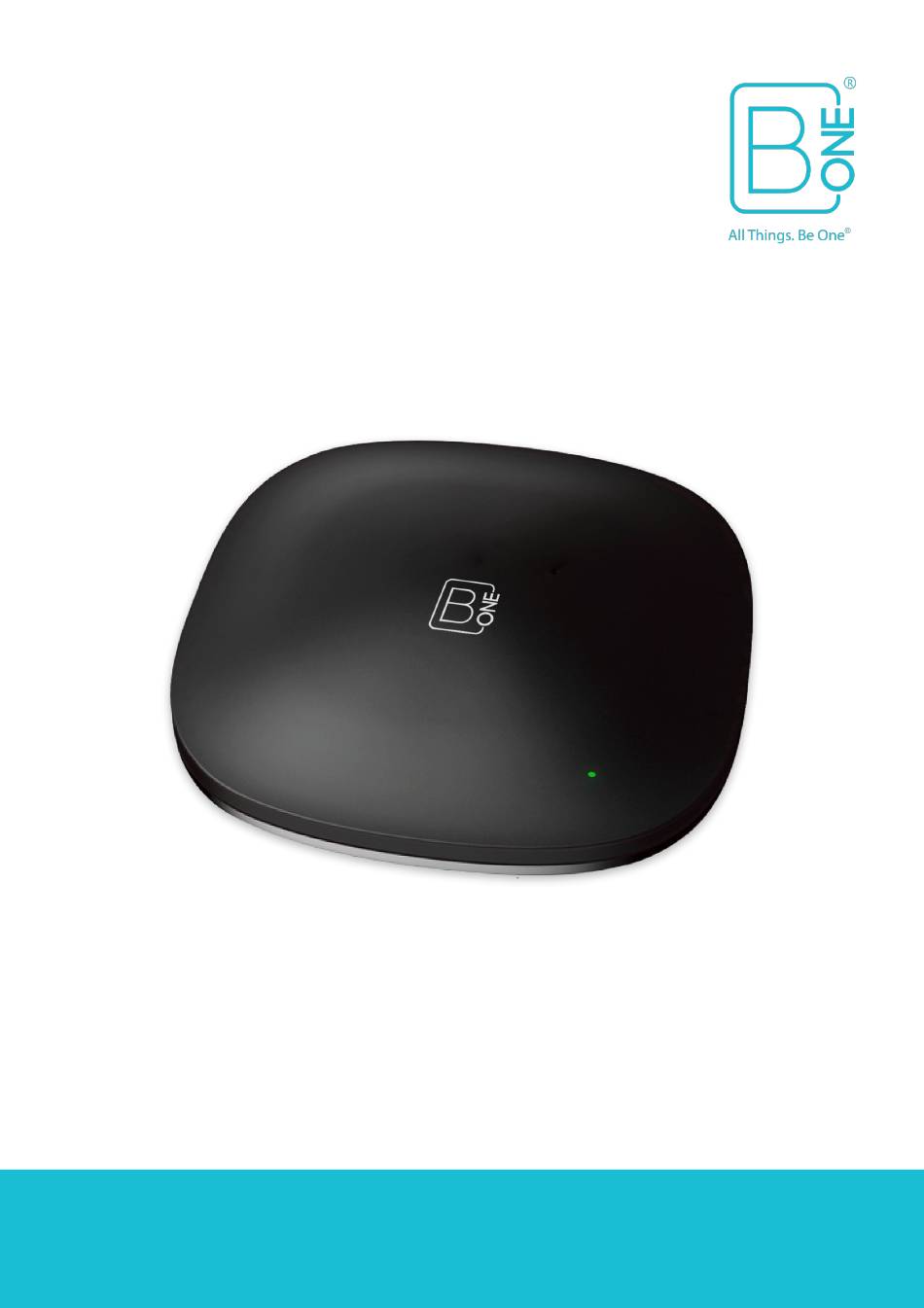

  • Page 1 B.One Eazy Model: B.One Eazy 1.0 USER MANUAL...

  • Page 2: Table Of Contents

    B.One Eazy Features of B.One Eazy Included in the Box Technical Specifications of B.One Eazy B.One App Setting Up B.One Eazy in B.One App Adding Devices to B.One App B.One VoiceAct® B.One Chat Bots Setting actions in B.One App FAQs...

  • Page 3: Important Safety Information

    1. Important Safety Information Before using B.One Eazy, please read the following information to avoid any potential dangers: 1. Disconnect the device from the power supply before cleaning. Clean device with a damp cloth, do not use detergents under any circumstances.

  • Page 4: B.one Eazy

    2. B.One Eazy B.One Eazy is a revolutionary automation device that will make your home and life smarter than ever before. This device enables you to have complete control over your Wi-Fi and IR enabled devices at home or business.

  • Page 5: Technical Specifications Of B.one Eazy

    5. Technical Specifications of B.One Eazy Input 100 ~ 240V, 50/60Hz, 0.25A Max Output 5V DC, 1.2A Protocols Supported WiFi (2.4 GHz) and IR (Infrared) Range Upto 10 metres 0º C to 45º C Operating Temperature 3.9 x 3.9 x 2 inches...

  • Page 6: B.one App

    6. B.One App B.One App lets you manage your home or business from anywhere, anytime. Manage your security, energy, comfort and IR remote controlled electronic devices from anywhere in the world with one simple B.One App. Supports over 110 devices and all prominent wireless protocol standards. You can download the B.One App from the Play Store or App Store: Play Store Url: https://bit.ly/2k4uhSs App Store Url: https://apple.co/2yuFO0J...

  • Page 7: Setting Up B.one Eazy In B.one App

    7. Setting up B.One Eazy in B.One App Step 1 : Sign Up Open B.One App and proceed with the below instructions : Login with your existing account or sign up for a new account.
  • Page 8 You will receive a verification email. Click the link (Authenticate E-mail) in that email to verify your account.
  • Page 9 Step 2: B.One Eazy Setup Once you login, select B.One Eazy, enter a name of your choice for the and tap on Next. Please ensure your phone can discover your preferred Wi-Fi network and B.One Eazy is close to Wi-Fi router and tap on Next.
  • Page 10 Now, connect your phone to B.One access point and return to the B.One App.
  • Page 11 Select your preferred Wi-Fi network available to connect B.One Eazy or enter SSID (name of the Wi-Fi router) manually. Please wait while the App finalizes your setup. This might take few seconds. You will be redirected to B.One App dashboard upon successful setup.

  • Page 12: Adding Devices To B.one App

    8. Adding devices to B.One App Once you have successfully set up B.One Eazy, you can now add devices to your B.One App. The screenshots below show the process of adding an IR based device. Eg: television. Tap “Add Device” and select “Television”...
  • Page 13 And now select a brand from the given options, after which you will be asked to test few keys and then tap ‘Yes’...
  • Page 14 In a similar way, you can change the channel and adjust the volume.
  • Page 15 Please check if all the keys on the remote screen are working. If yes tap ‘OK’.
  • Page 16 Once the keys are tested, enter a device name and tap Done. Your device has been added successfully. Similarly, you can add other devices.

  • Page 17: B.one Voiceact

    ® 9. B.One VoiceAct ® B.One VoiceAct lets you voice control your devices connected to B.One Eazy through Alexa and Google Home. Link your Alexa or Google Home to our Smart home skill ® “B.One VoiceAct ” to enable this feature.

  • Page 18: B.one Chatbots

    10. B.One Chatbots B.One Eazy is compatible with ChatBots such as Facebook Messenger and LINE. With the ChatBots integration feature, you will be able to control your devices through the Messenger apps and issue commands that fulfill specific actions on your behalf, such...

  • Page 19: Setting Actions In B.one App

    11. Setting actions in B.One App Actions Quick Trigger Add a Sequence Time Add Quick Action Location Device...
  • Page 20 Quick Action: (i) Sequence Action Run an activity with just a single click. To add a sequence, click on the ‘Actions’ tab at the bottom of the app. Then click on ‘Add action’ Tap on ‘Add Sequence’ and provide the required information. If you want to turn on/off multiple devices within a limited time frame (1 second - 120 seconds) you can sequence them accordingly.
  • Page 21 (ii) Add a Quick Action: Quick actions allow you to control multiple devices such as lights, television and air conditioner with one click. To add a quick action, click on the ‘Actions’ tab at the bottom of the app, and tap on ‘Add a quick action’. Here you can add multiple devices and set actions such as turn on all or turn off all.
  • Page 22 Trigger Actions (i) Adding Time based action Time based action helps user to create a set of actions based on a specific time. Control multiple devices when time input triggered.For example, turn off devices at 10:10 am everyday.
  • Page 23 (Note: We can pick a Maximum of 5 connected devices for each Action)
  • Page 24 (ii) Adding Location based action Geofencing, a location-based service which allows B.One app to use Wi-Fi or cellular data to trigger a pre-programmed action when a mobile device enters or exits a virtual boundary set up around a geographical location, known as a geofence. You can set actions before you enter or exit a particular area.
  • Page 25 (iii) Adding Device based action Device based actions can be triggered on the basis of calibrated brightness & temperature values.
  • Page 26 User must calibrate lowest & highest brightness values in order to use Light Intensity trigger.
  • Page 27 User must calibrate Temp sensor to a specific temperature.

  • Page 28: Faqs

    Wi-Fi router.) ➔ Then, tap on Connect Wi-Fi. Now, connect your phone to the Wi-Fi network to which the B.One Eazy is connected and go back to the B.One App. If I can’t see my AC Model in the cloud remote library of B.One App, what do I do?
  • Page 29 10. My AC does not react after setup, what do I do? Make sure there is clear line of sight between B.One Eazy and AC & also there must not be any obstacle between IR device & Eazy. If the issue persists, you can...
  • Page 30 Note: Data refers to remotes, calibrated information, profile details and access points. 12. How do I connect my B.One Eazy to a different Wi-Fi router? If the LED indicator is Solid Green: ● Open the B.One App, tap on the Settings at the bottom-right corner of your screen.
  • Page 31 Users. Select the user you would like to remove from your account. Tap on Delete User. Enter the password and tap OK. 15. How many actions can I create in my B.One Eazy account? You can create a maximum of 20 actions which includes both Quick and Trigger based actions.
