Summary of Contents for Joysfeel RDT800V
- Page 1 Remote Dog Training Collar User guide RDT800V RDT1500V Shenzhen Joysfeel Technology Co.; Ltd. http://www.joysfeel.com...
- Page 2 Remote Dog Trainer Operation Guide Thank you for choosing Joysfeel, the best remote dog training collar in China. We want to ensure your pet’s safety by providing you with the tools and techniques to successfully train your pet. If you have any questions, please contact us by email sales@joysfeel.com or visit our website at...
-
Page 3: Table Of Contents
Table of Contents Components…………………………….……..3 How the system works…………………………..3 Main Features……………………….…..……….4 Transmitter……………………………...…..6 Receive Collar……………………...………..9 Setting Up Multi-dog System……….………….10 Charging ……………………………..……..14 Training Guide ………………………....…16 Troubleshooting Guide……………...…...…..…17 - 2 -... -
Page 4: Components

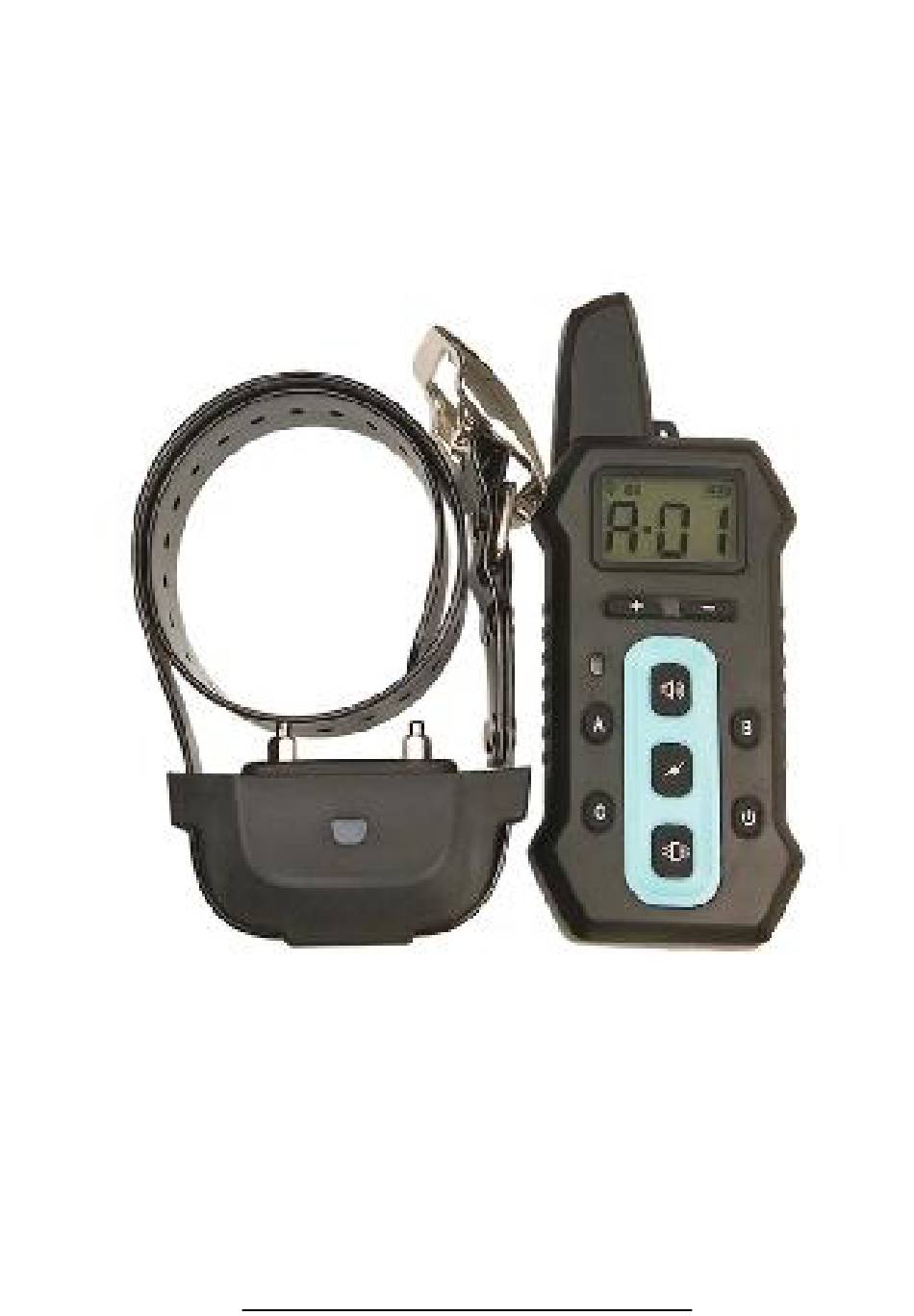

Components Include: 1, Remote Transmitter 2, Receiver 3, Collar 4,charger 5,USB cable 6,spanner 7, Lanyard 8, Long Contact Point. 9.Tset Lignt How the System Works The Remote Dog Trainer has been proven safe, comfortable, and effective for all pets over 10 pounds. This system assists you in controlling your pet without a leash in a long distance range. -
Page 5: Main Features
the Remote Transmitter sends a signal, activating the Receiver Collar. Using the Remote Trainer consistently and correctly, many misbehavior that your pet exhibits can be corrected or any basic obedience commands can be taught Important: The Remote Trainer actual distance depending on the way you hold the Remote Transmitter, the range may vary. - Page 6 4. 10 levels of vibration 5. “Buzz” sound activated with a separate button 6. Two buttons “+” and “-” allow you to set your shock and vibration intensity 7. Dog Selection Button allow you to select your dog 8. LCD digital display include: 10 shock & vibration levels, dog ID, current mode (sound, shock or vibration), battery level.
-
Page 7: Transmitter
Transmitter Antenna Stimulation and Vibration Level Button Buzz Button Static Led Light Shock Button On/Off Selection Button Button Vibration Button “ ” And “ “buttons: press these buttons to adjust the shock intensity and Vibration intensity from 1 to 10 level, LCD display change at the same time. “... - Page 8 for 3 seconds to switch on power, then LCD will display the saved information. You may change Dog ID by press the relative buttons. If you want to switch off the power, hold this button for 3 seconds to switch off power.
-
Page 9: Receive Collar
the suitable shock & vibration levels for different dogs, 10 levels shock stimulation, 10 levels vibration stimulation. One tone. NOTE: The red Led light will flash when the battery is low power. Recharge the battery at once. Receive Collar NOTE: CHARGE RECEIVER BEFORE FIRST USE LED Light Contact Prong Indicate the working status,... -
Page 10: Setting Up Multi-Dog System
Spanner Change the Contact Prong basing on the pet’s coat type. Notes: If the Contact Prong is tight , Continue to turn the spanner clockwise , The Contact Prong will be broken . Never turn the contact prong too tightly. Setting Up Multi-dog System You can expand your one-dog Remote Trainer into multi-dog Remote Trainer by yourself. - Page 11 LCD display occur then release, Transmitter is power on. Step 3: Press and hold “ ” button and “ ”button at the same time, until “A” on the LCD display move left to right automatically, then release. Enter match receiver mode. Step 4: Take the transmitter to close the unmatched receiver 50~100mm.
- Page 12 Step 6: Press and hold “ ” button and“ ” button at the same time again, until the character on the LCD display no change, then release. Step 7: Test matched Receiver---Chose dog first, then press “ ” button, you can hear the “beep” sound from the matched receiver.
-
Page 13: Charging
Step 2: Press and hold “ ” button until LCD display occur then release, Transmitter is power on. Step 3: Press and hold “ ” button and “ ” button at the same time, until “AAA” on the LCD display disappear in turn, then release. Enter cancel matched receiver mode. - Page 14 hours are needed. The transmitter and the receive collar can be charged at the same time. Common adaptor for transmitter and receiver charging To recharge, open the rubber cover first. Plug the adaptor contact pin into household AC power outlet and insert the adaptor plug into receiver charging port.
-
Page 15: Training Guide
The green Led light is on and the red Led light is off when receive collar is full charged The transmitter red light flashes if the battery is low. Charge it promptly Important: When stock the products for 4~5 weeks, Please give a full charge for Transmitter and receive collar. - Page 16 Do not put any fingers under the strap as you tighten it. 2. Stimulation and vibration Your Remote Trainer has 10 levels of intensity. So you can find the best level for your dog’s temperament and the type of training your dog. You may also select either shock or vibrate stimulation, depending on your dog’s temperament and your training purpose.
- Page 17 line. If you press “ ” button, “ ” display on the first line. If you press “ ” button, “ ” display on the first line. 4. Memory Transmitter can independently memory the level of the shock and vibration of A/B/C dog, and independently display on LCD.
-
Page 18: Troubleshooting Guide
When you press and hold “ ” button and “ ”button at the same time at least 3s, LCD display product type code. If LCD display “8”, the type is RDT800, if display “15”, the type is RDT1500. 3. Transmitter address code When you press and hold “... - Page 19 any sound when the Receiver is turned on. Press dog selection button to choose correct Dog ID before press transmitter buzz control button. The Beeper component is loose, send to service center to repair. Problem#3: The stimulation seems too high, not high enough or no feeling at all The collar strap is not tight enough.
- Page 20 Cancel the receiver match, then re-match it with transmitter. If receiver can not work too, send back to service center to repair or replace. For more information, please contact Joysfeel. Shenzhen Joysfeel Technology Co., Ltd - 19 -...
