- Page 1 PRODUCTCODE : MFX0702 VERSION : 1.0 DATE : 03.06.2012...
-
Page 2: Congratulations
80 countries. You can rely on MAGICFX® for excellent effects! We work hard to keep you, our customer, satisfied. Congratulations and a lot of success and amazing shows with your new MAGICFX® Swirl Fan XL! Page 1... -
Page 3: Ce Marking
Unauthorized removal of safety covers and/or safety devices. Improper use of the machine. MAGIC FX B.V. is not liable for any damages due to failures of the Swirl Fan XL. © Copyright 2012 All rights reserved. No part of this manual may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical, photocopied, recorded or otherwise without the prior written permission of MAGIC FX B.V. -
Page 4: Declaration Of Conformity
User Documentation MAGICFX® Swirl Fan XL 3. DECLARATION OF CONFORMITY DECLARATION OF CONFORMITY (according to Annex IIA of the Machinery Directive) With respect to the Machinery Directive. MAGIC FX B.V. Industrieweg 16 5281 RW Boxtel The Netherlands Hereby declares under our sole responsibility: We are the manufacturer of the product: ®... -
Page 5: Foreword
This manual provides pertinent information about the MAGICFX® Swirl Fan XL. The information in this manual is important with respect to the proper and safe operation of the Swirl Fan XL. If you are not familiar with the installation, operation, preventive maintenance, etc., of the Swirl Fan XL then read this manual in its entirety. -
Page 6: Table Of Contents
CE MARKING ....................2 DECLARATION OF CONFORMITY ..............3 FOREWORD ....................4 INTRODUCTION ....................6 DESCRIPTION OF THE SWIRL FAN XL AND ITS USAGE ..........6 NECESSARY ACCESSORIES ....................6 SAFETY ......................7 INTRODUCTION ........................7 GENERAL SAFETY RULES ....................7 WARNINGS .......................... -
Page 7: Introduction

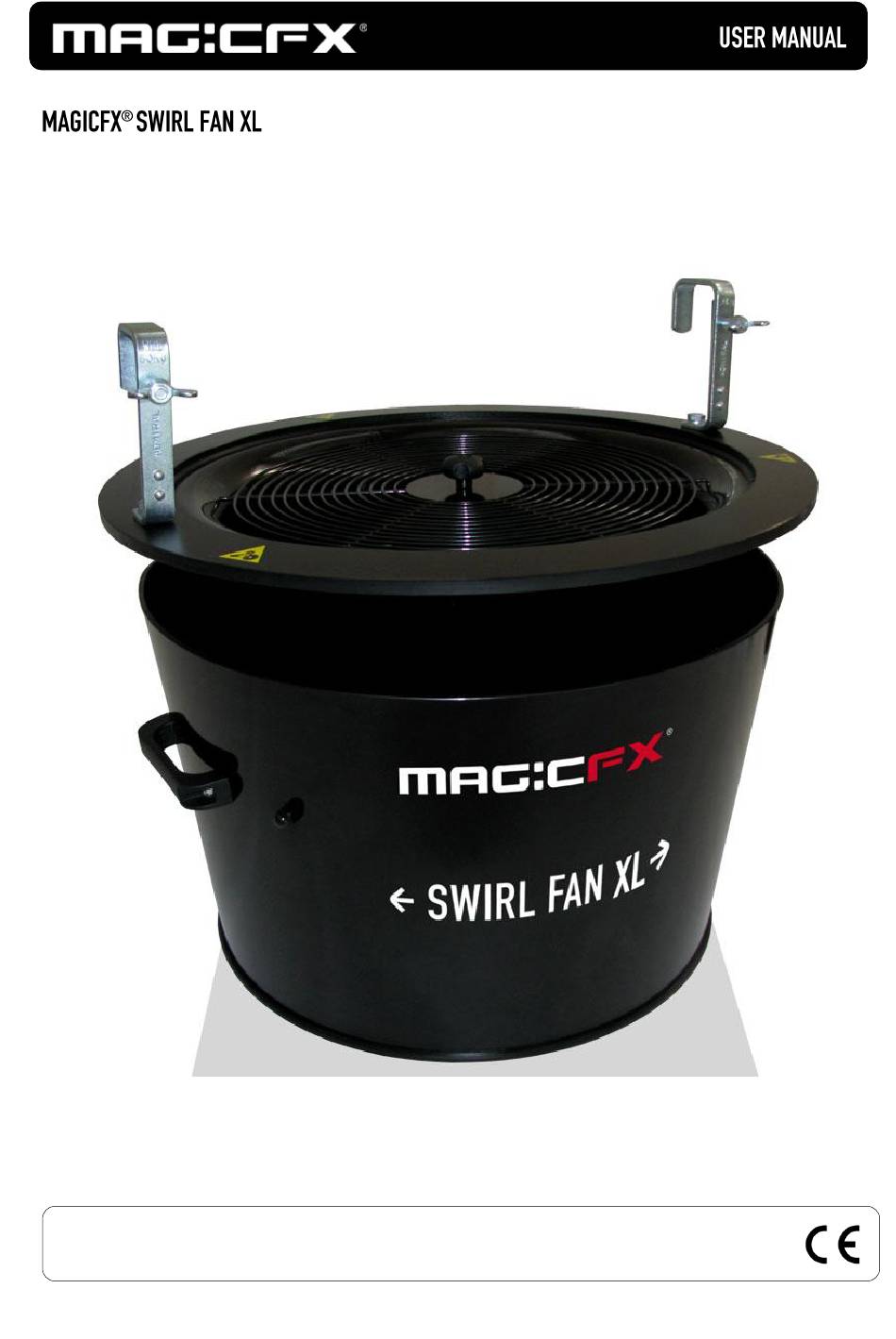

DESCRIPTION OF THE SWIRL FAN XL AND ITS USAGE The Swirl Fan XL is designed to spread confetti from above a stage, catwalk or dance floor. The Swirl Fan must be mounted in a truss construction and is only suitable for spreading tissue paper or metallic PVC confetti of MAGIC FX. -
Page 8: Safety
Ensure that the Swirl Fan XL is not accessible to children, unauthorized persons, or animals! Do not touch the Swirl Fan XL when it is operational or turned on. Even if the device is not in operation it might be ready to activate. -
Page 9: Parts
Version 1.0 7. PARTS 1. grid 2. Confetti reservoir 3. Truss clamps 4. Handle Page 8... -
Page 10: Accessories
E. info@magicfx.eu 9. PREPARATION FOR USE Unpack the Swirl Fan XL. Dispose of packaging material without causing harm to the environment. Check the device for any possible damage. You must report any damage to the device to MAGIX FX. Page 9... -
Page 11: Installing
This indicates that the equipment may be damaged if procedures are not carried out in the proper manner. DANGER WARNING: The MAGICFX® Swirl Fan XL may only be installed by authorized adults. Prepare the Swirl Fan XL for use as follows: Remove the grid by turning the fastener in the left direction and lifting the grid up by hand. - Page 12 User Documentation MAGICFX® Swirl Fan XL Place the grid back on the machine and screw on the turn fastener to secure it. Mount de Swirl Fan in a truss construction and make sure the truss clamps are connected tightly. Connect the safety cable which is attached to the motor to the truss.
-
Page 13: Usage
The MAGICFX® Swirl Fan XL may only be operated by authorized adults. The Swirl Fan XL may only be operated if all parts are entire and in good working order and properly connected/installed. Operate the Swirl Fan XL as follows: Push the switch of the 230V on/off controller in the ON position. -
Page 14: Turning Off
User Documentation MAGICFX® Swirl Fan XL 12. TURNING OFF Turn off the Swirl Fan XL as follows: Remove the power cable. Remove the safety cable and take the Swirl Fan out of the truss construction. When the machine is disconnected from... -
Page 15: Troubleshooting
1400 (Full Power) 15. MAINTENANCE To prolong the life of the Swirl Fan XL for as long as possible, you must regularly clean it and test that it functions properly. Regardless of the reason, contact MAGIC FX if the Swirl Fan XL does not work properly DANGER WARNING: Never replace parts yourself.
