Standard 63340 Installation Instructions

LED YARD LIGHT FIXTURES
INSTALLATION INSTRUCTIONS
Order Description
code
63340 LED/YL/35W/40K/120-277V/SLV/STD
63341 LED/YL/50W/40K/120-277V/SLV/STD
IMPORTANT: READ ALL INSTRUCTIONS BEFORE THE INSTALLATION.
CAUTION: This product use an input 100-277 VAC driver, the actual working voltage is dependent on the input voltage of the photocell that is installed
on the product (where applicable). An internal power-factor-corrected switch-mode supply allows it to be used from any nominal 100V-277V, 60Hz AC
supply without any variation in light output.
NOTE: SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
WARNING: Risk of fire or electric shock. The installation should be performed only by a qualified electrician in accordance with the National Electrical
Code and relevant local codes. This product must be installed in full accordance with applicable electrical and building codes.
WARNING - TO AVOID ELECTRIC SHOCK:
• Be certain electrical power is OFF before and during installation and maintenance.
• Luminaire must be connected to a wiring system with an equipment-grounding conductor.
WARNING - TO AVOID EXPLOSION:
• Make sure the supply voltage is the same as the rated luminaire voltage.
• Do not install where marked operating temperatures exceed the ignition temperature of the hazardous atmosphere.
• Do not operate in ambient temperatures above those indicated on the luminaire.
• Keep lens tightly closed when in operation.
• For supply connections use wire rated for at least 100°C.

INSTALLATION INSTRUCTIONS: DIRECTLY FIX TO MOUNTING SURFACE

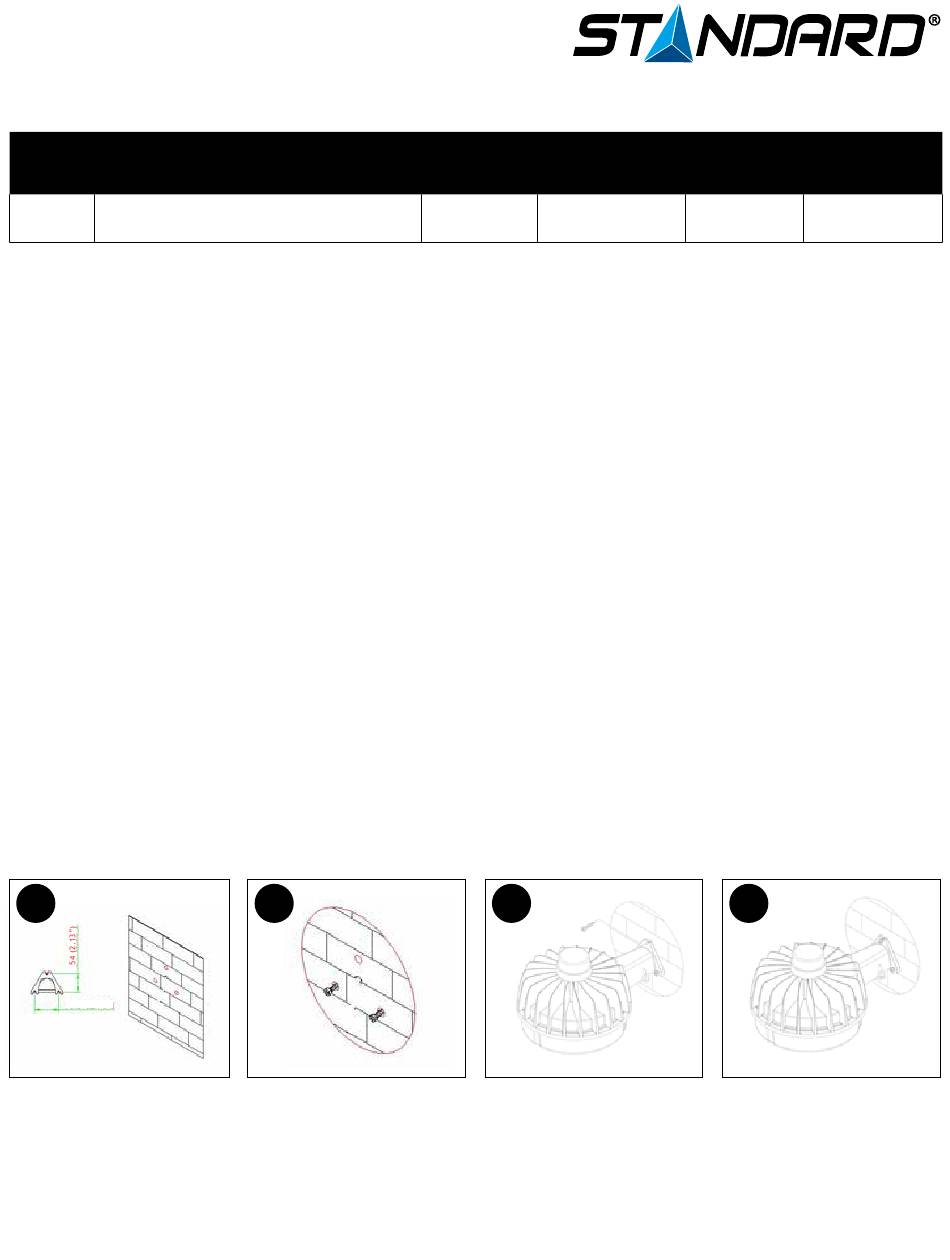

• First refer to the size of the diagram to bore a hole on the wall (FIG. 1).
• Fix the two paratactic screws to the hole (FIG. 2).
• Hook the fixture by the two screws, fix the top screw, finally tighten all screws (FIG. 3).
• Remove the knockout plug from the wiring compartment cover provided and insert supply wires through the knockout hole. (FIG. 4)
• Secure service wire or conduit to the wiring compartment cover with 1/2" connector (not supplied ). Connect white fixture wire to white supply
wire, black fixture wire to black supply wire. Service ground should be attached to green ground screw rovided. Ground must be properly
attached to avoid the risk of electrical shock.
• Use wire nuts, crimp-on lugs, or other approved devices to connect all wires, make sure connections are secure and that no loose wire strands are
sticking out of connectors.
• Secure wiring compartment cover to fixture. With black and white connections inside the wiring compartment. Use cULus Listed flexible steel
waterproof conduit in trade sizes 1/2.
1
70.5 (2.78")
2
Input Power
voltage factor
(VAC)
120-277 ≥ 0.90
120-277 ≥ 0.90
3
Watts Colour
temp.
(W) (K)
35 4 000
50 4 000
4
