We try to make our assembly instructions as useful as possible . Do you have any advice or tips for us, we hope to hear from you . Please write to info@ledon .dk or via the contact form on our website www .ledonplay .com...

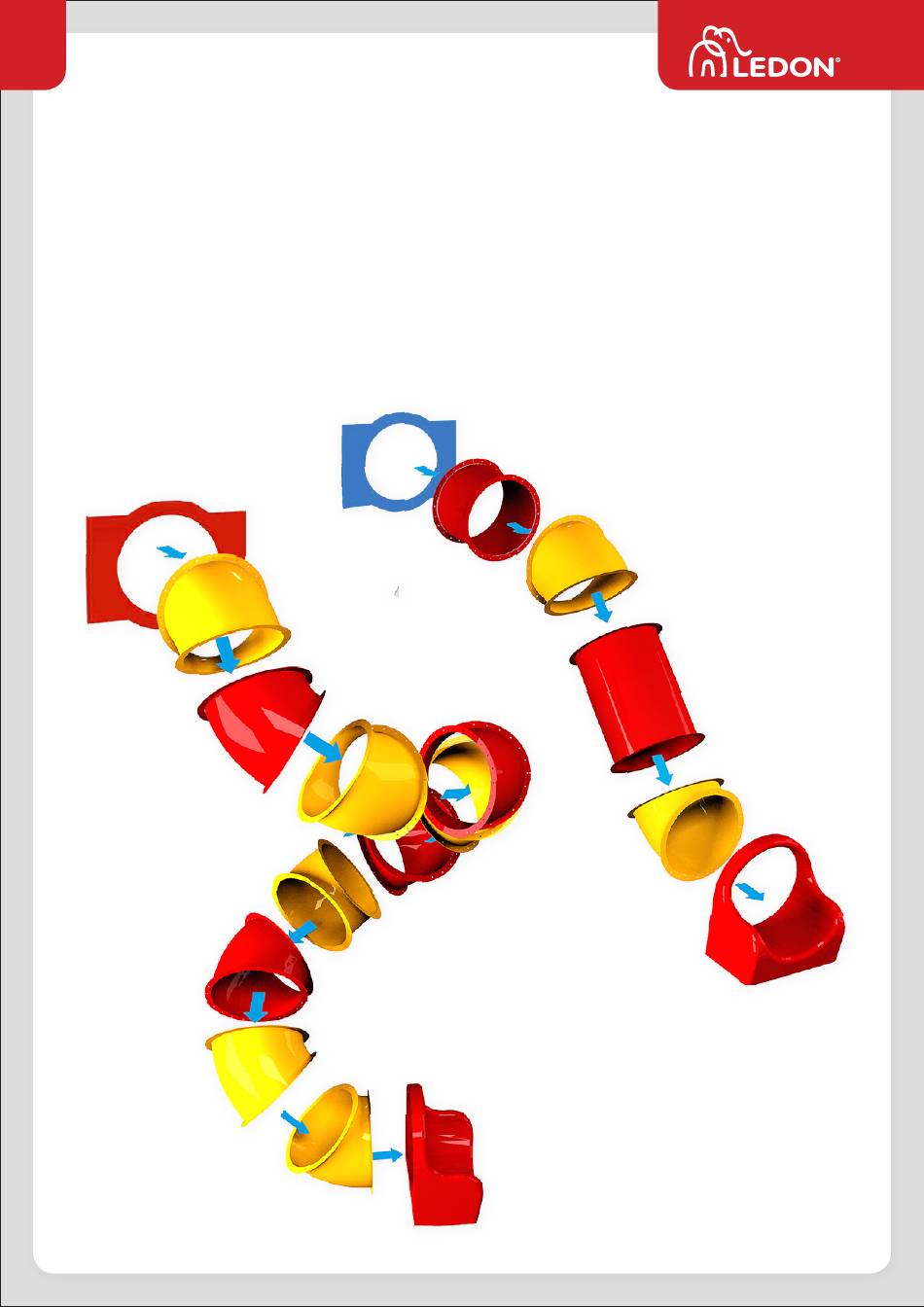

Here we will go through the assembly instructions by an example of the beautiful, curved and colorful LEDON tunnel slide below . Each tunnel is unique and must be assembled according to the LEDON Tunnel Maker installation instructions . If a support post is necessary see separate assembly instructions for this .
Tunnel Maker assembly instructions A Tunnel Maker assembly instruction from LEDON is useful when setting up the tunnel slide . In the following example we will show you how . Example of a Tunnel Maker assembly instruction: Filename: Ledon tube slide start 366 cm Startheight: 366.0 cm...
Straight tubes: All straight tubes are marked with the letter ”A” at each end of the tube . This letter refers to the Tunnel Maker mounting instruction supplied by LEDON . The ”A” should always be in the ”top” of the tube .
Page 8
Useful information about LEDON tubes Curved tubes: All curved tubes are numbered 1-24 next to each flange hole . These numbers refer to the Tunnel Maker mounting instruction supplied by LEDON - see below Example of assembly instructions:...
Installation of tubes The tubes are installed in the sequence and aligning numbers with letters as shown in the LEDON Tunnel Maker assembly instructions .
Installation of tubes with windows When LEDON’s assembly instructions are followed, it is ensured that the windows are not on the sliding surface . Windows must sit on at ”10” and ”2” o’clock position .
Installation of tubes - finishing Important: Install the second last tube and the exit chute together in a section before it is applied on the tube slide .
Exit chute Important: Install the second last tube and exit chute together in a section before it is loaded onto the slide . 5 pcs . 10x25 mm MB (Installed in the bushes) Bolts must not be overtightened! 11 pcs . 10 x 40 mm MB + 11 x 10,5 x 30 mm SEK...
Page 14
Exit chute Apply the second last tube so that ”24” is in the ”top” of the tube . As in this example . 5 pcs. 10x25 mm MB (Installed in the bushes) Bolts must not be overtightened!
Page 15
Exit chute Install the other bolts . 11 pcs. 10x45 mm MB...
Exit chute - instalation of anchoring Installation of anchoring - for trenching . For mounting on concrete - see page 18 . 10 x 35 mm BB...
Page 17
Exit chute - installation of anchoring For the stability of the anchoring and the exit chute, a PE-plate must be mounted INSIDE the exit chute and fastened, with metal bracket by 3 screws . See picture below .
Trenching of the ground anchor Dig out for the ground anchor only when the tunnel slide is fully assembled and standing on the ground, not before . See drawing below . 50 cm...
