GLAC IER D120
PH-D120_01

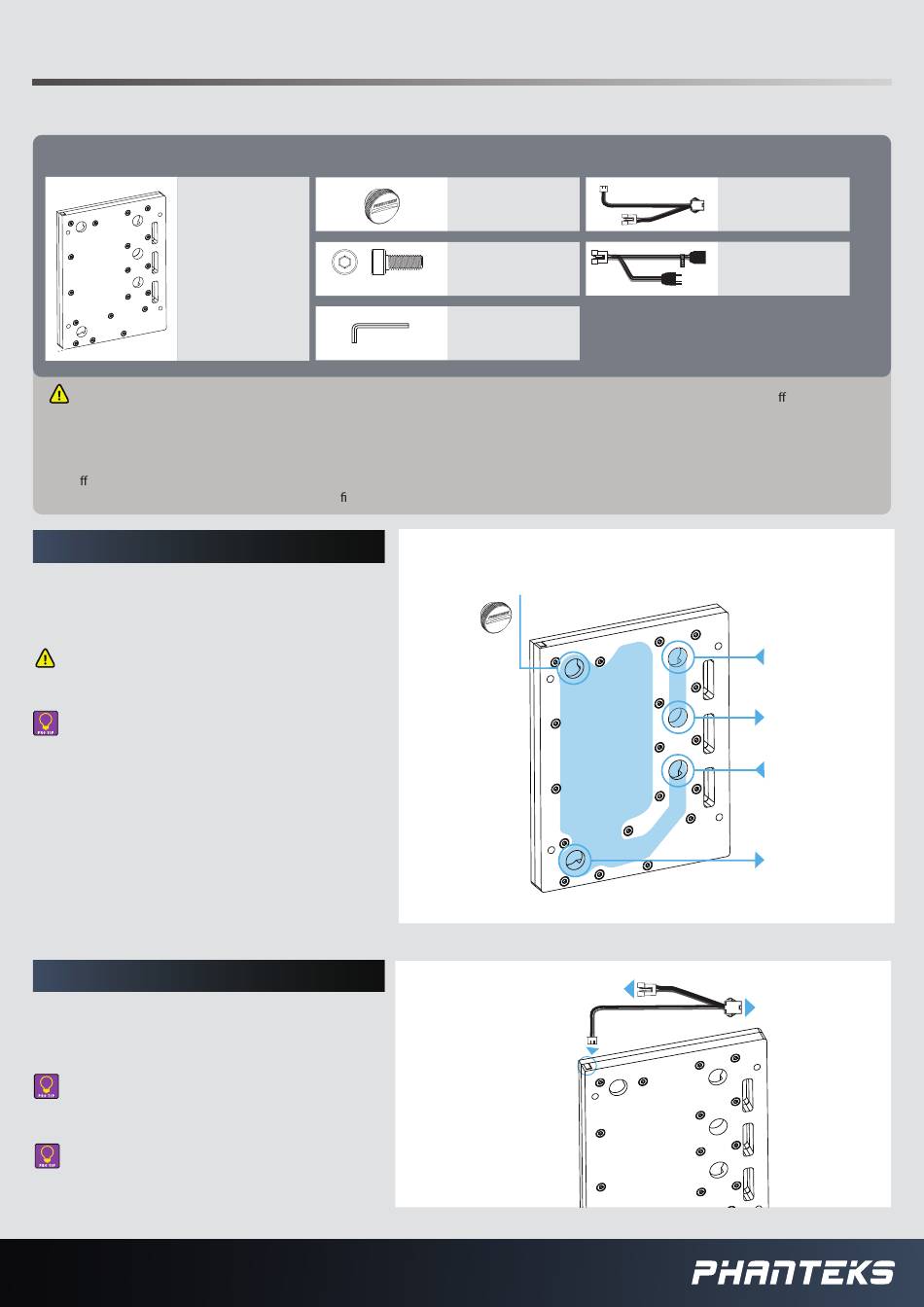

PACKAGE CONTENTS
GLACIER D120
QTY: 1
WARNING -
This product is intended for advanced users. Improper installation may result in damage to your equipment. While all e orts have
been made to provide the most comprehensive information possible, Phanteks assumes no liability expressed or implied for any damage(s) occurring to your
components as a result of using Phanteks cooling products, either due to mistake or omission on our part in the below instructions, or due to failure or defect in
the Phanteks cooling products. Do not disassemble the water block. Warranty will be voided.
Turn o the power to your system and discharge your body's static electric charge before proceeding with the installation procedure. If you do not feel comfortable
with performing the installation procedure, consult a quali ed computer technician.
STEP 1. WATER LOOP PLANNING
Take a look at the port overview and plan
your water loop accordingly.
Make sure to use the correct in and out
ports for the CPU.
The D120 IN and OUT ports can also be
reversed if necessary.
STEP 2. CONNECT THE D-RGB CABLE
Connect the Phanteks D-RGB Cable to the
LED strip at the top.
All Phanteks D-RGB products can be
daisy-chained together.
You can connect the D-RGB cable to a
compatible motherboard with the
included D-RGB MB adapter.

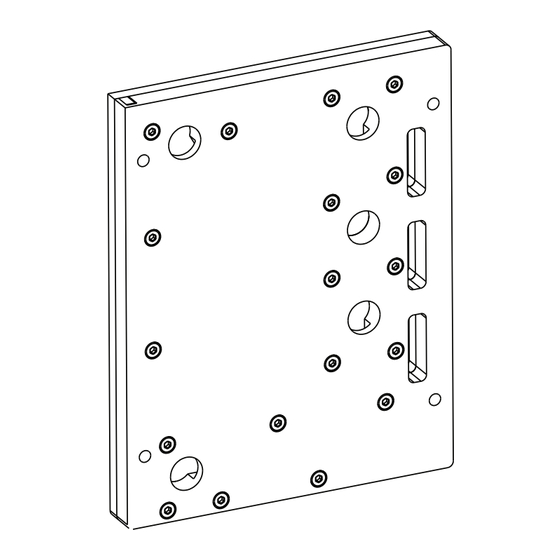

Distribution plate
Glacier Stop Fitting
QTY: 1
M4x8 Screws
QTY: 4
3mm Allen Key
QTY: 1
Fill/Air bleed port
Connect to Phanteks Case
/ Motherboard Cable
INSTALLATION GUIDE V1.0
For latest version check www.Phanteks.com
Phanteks D-RGB Cable
QTY: 1
D-RGB MB Adapter
QTY: 1
D120 IN
CPU OUT
CPU IN
D120 OUT
