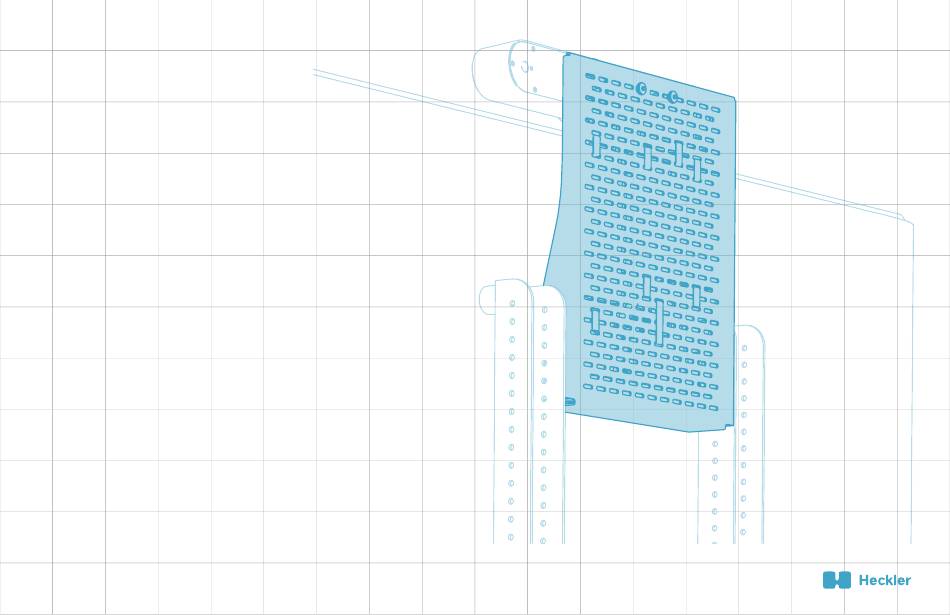

- Page 1 H702 - Device Panel for Heckler AV Cart Designed & made in Arizona Patented...
- Page 2 IN THE BOX Device Panel for Heckler AV Cart PTZ Camera Adapter Cart-mounting screws Device-mounting thumb screws Device-mounting thumb nuts PTZ camera-mounting screws PTZ camera-mounting key Cart-mounting assembly key Velcro for strapping devices. Two feet.
-
Page 3: Components Needed
COMPONENTS NEEDED (Not Included) Heckler AV Cart Camera, Conference Device cables Cam, or Appliance If you have any questions, please contact service@hecklerdesign.com. - Page 4 STEP 1 Determine your ideal camera position.
- Page 5 You can pre-configure devices and wiring to Device Panel from a benchtop or configure in place on Heckler AV Cart.
- Page 6 OPTIONAL Install Tripp-lite power strip (not included). T498...
- Page 7 STEP 3 Install Device Panel to Heckler AV Cart.
- Page 8 STEP 4 Rotate Device Panel and configure devices Use the supplied Velcro strap to fasten your devices and cabling to Device Panel.
- Page 9 STEP 5 Mounting a PTZ, go to Step 6. Mounting wall-mount-style devices, go to Step 8.
- Page 10 STEP 6 Install PTZ Camera Adapter Fasten the PTZ Camera Adapter to Device Panel as shown.
- Page 11 STEP 7 Install PTZ Camera. Position your PTZ Camera and fasten in place as shown.
- Page 12 STEP 8 Install devices directly to Device Panel. Device Panel's hole pattern is compatible with M4 screws and VESA 25, 50, 75, and 100 mounting patterns.
- Page 13 STEP 9 Rotate Device Panel back to its vertical position and fasten the remaining two screws.
