Summary of Contents for Grant's Automation MAW6

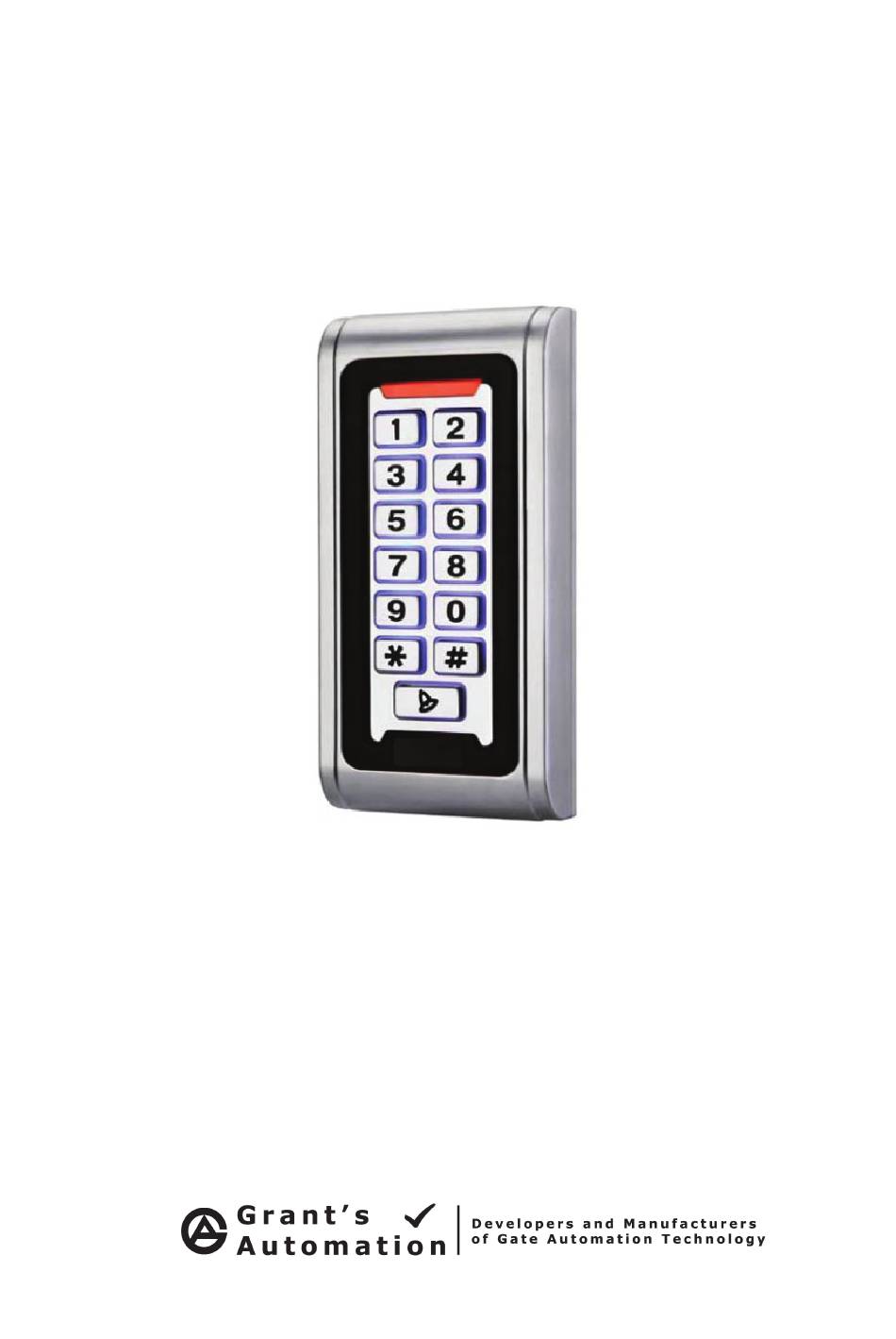

- Page 1 Wiring Diagram and Programming Instructions for MAW6 Digital Keypad and Proximity Card/F reader www.grantsautomation.com.au - grant@grantsautomation.com.au...
- Page 2 Wiring Diagrams for MAW6 Digital Keypad For Pedestrian Gates fitted with an electric Strike Lock or magnetic Lock 12VDC Power Supply Buzz-A - Pink Can be unregulated with an output between 9V and 28VDC Buzz-B - Pale Blue WG DO - Green...
- Page 3 Wiring Diagrams for MAW6 Digital Keypad For 24V Automatic Gate Operator or 240V operator with 24VAC or DC output for accessories. Buzz-A - Pink P/B in Buzz-B - Pale Blue P/B com WG DO - Green 24V~ out WG D1 - White...
- Page 4 Programming Instructions for MAW6 Digital Keypad and Card reader FEATURES: • Up to 2000 User Codes (4 Digits), touch tags or cards all with a seperate user ID number so they can be removed even if tag or card is lost or code is forgotten. Note: need to keep a log book •...
- Page 5 PROGRAMMING: Set Tag/Card OR Code Set Tag/Card only Option To Remove a Tag/Card Option (default) with Tag/Card Enter “ <Master Code># ” Enter “ <Master Code># ” Factory code “ 999-999 ” Factory code “ 999-999 ” Enter “ <Master Code># ” Factory code “...
- Page 6 Programming Instructions for MAW6 Digital Keypad To Change a User Code To Change the Master Code Restoring Factory Settings. The factory settings can be recov- Enter “ <Master Code># ” Enter “ <User ID Number>#” Factory code “ 999-999 ”...
