ZH -EBOX-300 Manual

Poster led display proprietary control system
Hide thumbs

Advertisement

Quick Links

Download this manual
--

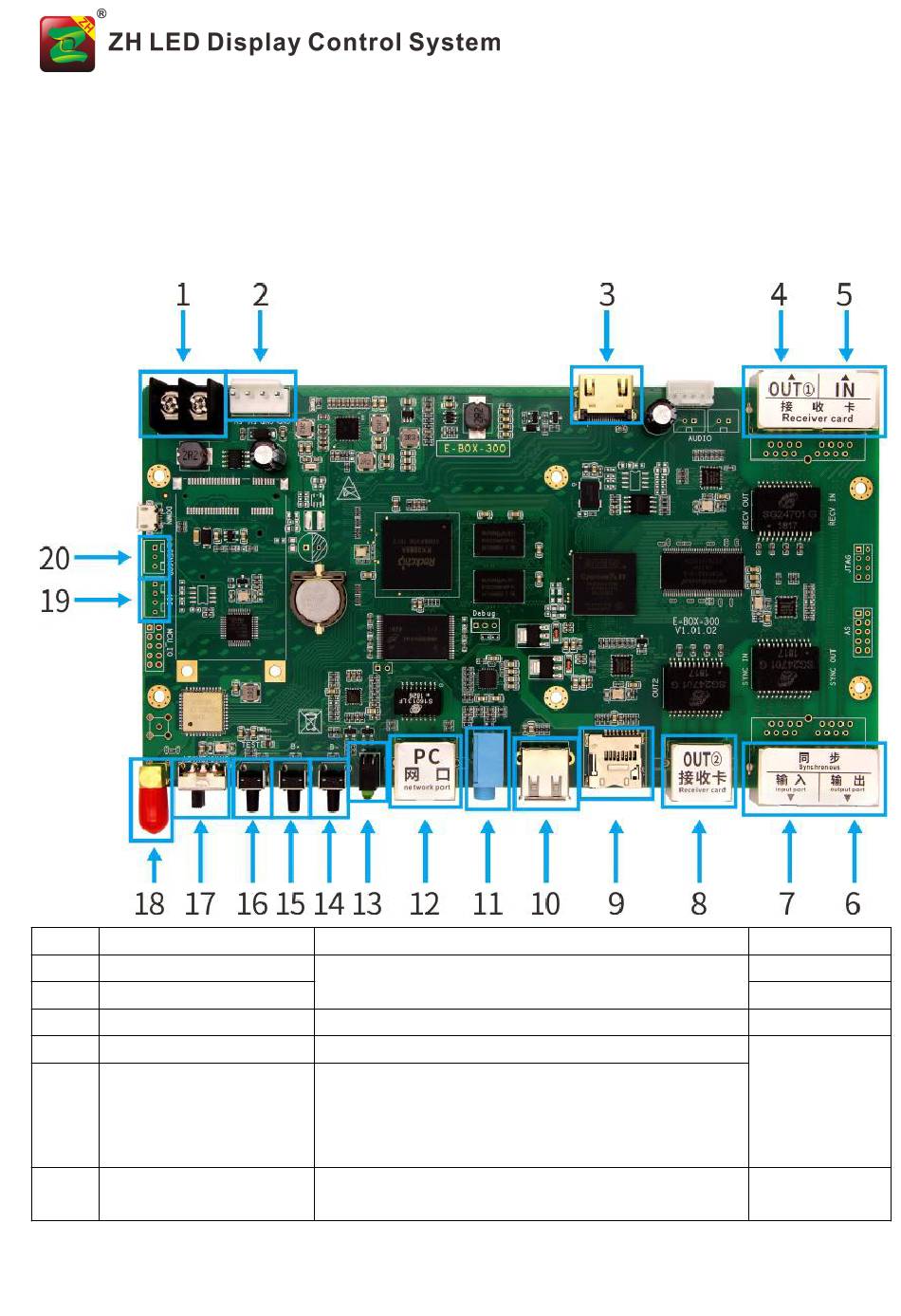

I. Hardware Introduction
Item
Name
1
Power input 1
2
Power input 2
3
HDMIoutput
4
Receiver OUT1
5
Receiver IN
6
Synchronous
port
ZH-EBOX-300 Manual
Poster LED Display Proprietary Control System
Connect power supply DC3.3-6V
Send signal to the sending card or video processor
Link with receiver in the led screen
Connect with the last card which controlled by this
device when multi-machine synchronization
output
Connect the next device's sync input
www.zhonghangled.com/en
Function
Note
Need to form a
loop
when
multi-machine
synchronizatio
n
Used
for
multiple

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZH-EBOX-300 and is the answer not in the manual?

Questions and answers
