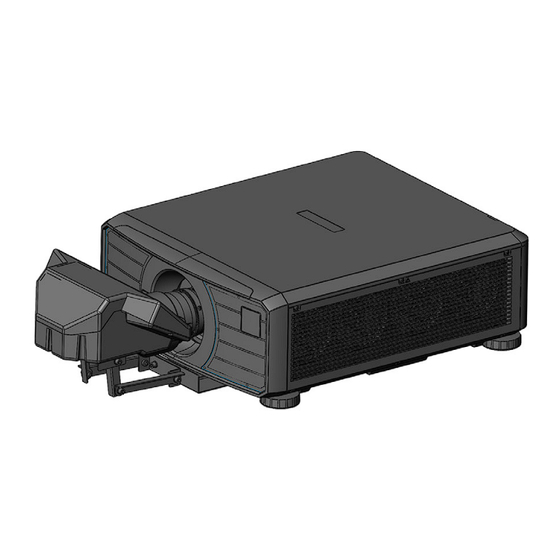

- Page 1 0.38:1 ULTRA SHORT THROW LENS compatible with E-Vision 7500 / Laser 7500 / Laser 8500 / Laser 10K Laser 13000 WUXGA / Laser 4K-UHD / Laser 11000 4K-UHD INSTALLATION GUIDE Rev B June 2019 118-200B...
-
Page 2: Table Of Contents
Digital Projection 0.38:1 E-Vision Ultra Short Throw Lens CONTENTS CONTENTS Overview ......................1 Product revision .................... 1 Legal notices ....................1 Specifications ....................2 Product compatibility ..................2 Installation Instructions ................3 Positioning The Screen And Projector .......... 7 Calculation ..................... 7 Typical screen sizes and distances ............. -
Page 3: Overview
Legal notices The software is provided as is. No warranty is implied. Digital Projection Ltd accepts no liability for loss or damage incurred as a result of its use. Trademarks and trade names mentioned in this document remain the property of their respective owners. -
Page 4: Specifications
Digital Projection 0.38:1 E-Vision Ultra Short Throw Lens SPECIFICATIONS Specifications Notes PART NUMBER 117-341 Product compatibility The ultra short throw lens is designed for use on the following E-Vision projectors: 16:10 • E-Vision 6500 WXGA • E-Vision 6800 WUXGA •... -
Page 5: Installation Instructions
Digital Projection 0.38:1 E-Vision Ultra Short Throw Lens INSTALLATION INSTRUCTIONS Installation Instructions Notes The lens should only be used on flat surfaces and must be aligned Attach the support bracket to the bottom of the projector by using parallel to the screen. - Page 6 Digital Projection 0.38:1 E-Vision Ultra Short Throw Lens INSTALLATION INSTRUCTIONS Notes Attach the arms to the support bracket by using the two provided The lens should only be used on M6*1*14 FF hexagonal screws. Do not tighten the screws at this flat surfaces and must be aligned stage.
- Page 7 Digital Projection 0.38:1 E-Vision Ultra Short Throw Lens INSTALLATION INSTRUCTIONS Notes Insert the lens into the holder and turn it clockwise into “Lock” The lens should only be used on position. flat surfaces and must be aligned parallel to the screen.
- Page 8 Digital Projection 0.38:1 E-Vision Ultra Short Throw Lens INSTALLATION INSTRUCTIONS Notes Lens Lens Lock Connect the power cable and the input source to the projector and turn it on. The lens should only be used on Lens Control flat surfaces and must be aligned...
-
Page 9: Positioning The Screen And Projector
Digital Projection 0.38:1 E-Vision Ultra Short Throw Lens POSITIONING THE SCREEN AND PROJECTOR Positioning The Screen And Projector Notes Calculation The lens should only be used on Positioning is determined by: flat surfaces and must be aligned parallel to the screen. -
Page 10: Typical Screen Sizes And Distances
Digital Projection 0.38:1 E-Vision Ultra Short Throw Lens POSITIONING THE SCREEN AND PROJECTOR Typical screen sizes and distances Notes WUXGA (16:10) The lens should only be used on flat surfaces and must be aligned Screen width Throw Offset parallel to the screen. - Page 11 Digital Projection 0.38:1 E-Vision Ultra Short Throw Lens This page is intentionally left blank. Installation Guide...
- Page 12 Contact Information: Digital Projection Limited Digital Projection Inc. Digital Projection China Digital Projection Asia Greenside Way, Middleton 55 Chastain Road, Suite 115 16 New Industrial Road 中国 北京市 朝阳区 芍药居北里101号 Manchester M24 1XX, UK Kennesaw, GA 30144, USA #02-10 Hudson Technocentre 世奥国际中心A座2006室(100029)
