CABANA / PAVILION ASSEMBLY
ALUMINUM FRAME MODELS
Thank you for selecting Tropitone® Basta Sole® Cabana /
Pavilion for your shade needs.
WARNING: Do not try to lift or flip Cabanas / Pavilions with only
one person. Components may be heavy and awkward to handle,
and may result in injury to persons or damage to property if not
lifted properly.
CAUTION: When instructed to fully tighten screws, do not over
tighten and strip the threads.
Read through all steps before starting assembly.
Completely unpack all boxes and thoroughly check for
items that may be individually wrapped (finial, etc.)
Tools needed:
Medium (#2) Phillips Screwdriver
7/16" Combination Wrench
3/16" Hex Key
3/8" Power Drill

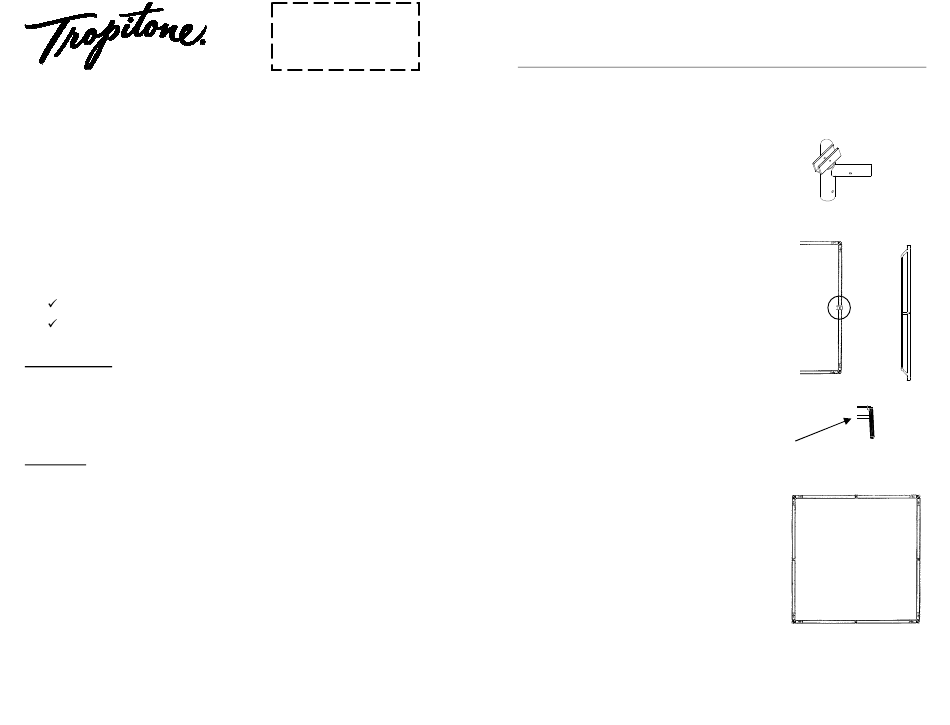

Parts List:
(1)
Finial (decorative top)
(4)
¼-20 x 1-1/4" Flat Head
Screws
(4)
Curtain Rod Brackets
(8)
¼-20 x 3" Socket Head
Screws
(8)
¼-20 x 2-1/2" Socket
Head Screws
(8)
¼-20 x 1-3/4" Socket
Head Screws
(48) ¼" Flat Washers
(24) ¼-20 Locking Nuts
Assembled cabanas
are large & heavy.
Assemble at place of
use.
5/16" Drill Bit
Level
Safety Glasses
(1)
Upper Frame Assembly with
Top Cover
(4)
Corner Bracket Assembly
(4)
Curtain Rods (longer,
thinner) Sheer Double
Curtain Rods (Optional)
(4)
Curtains
(8)
Sheer Curtains (Optional)
(4)
Center Curtain Ties
(4)
Corner Poles (shorter,
thicker)
(4)
Umbrella Bases (see Step 5
for various types)
1
Step 1
CAUTION: To avoid damage to the finish of your Cabana frame,
prepare a smooth, non-scratch work surface (shipping container, a
tarp or pool towels can be used).
Set the (4) Corner Bracket Assemblies in a
square spaced at a distance to accept the
length of the Curtain Rods.
Connect the (4) Curtain Rods to the Corner
Bracket Assemblies in such a way that the
assembly hole for the Curtain Rod Bracket
is located at the top and outside of the
frame (shown in diagram A). This will allow
the Curtain Rod Bracket (installed in Step 2)
to receive the Arm as shown in the cutaway
diagram in the Step below. Curtain Rods
with a secondary sheer rod will require the
smaller sheer rod to be oriented to the
inside of the assembled Cabana (Optional
Sheer Curtain Rod shown in diagram B).
Note: Curtain Rods and Sheer Curtain
Rods for 12' Cabanas are equipped with a
Valance Support located in the center of the
curtain rod.
Slide Rods fully onto the end tube of the
Corner Brackets. Install (8) ¼-20 x 2-1/2"
Socket Head Screws with (8) ¼" Flat
Washers into pre-drilled thru holes of the
Curtain Rods loosely to retain the Corner
Brackets (at 4 corners). Secure with (8) ¼"
Flat Washers and (8) ¼-20 Locking Nuts.
Do NOT fully tighten the Socket Head
Screws and Locking Nuts until Step 3.
A
2
B
