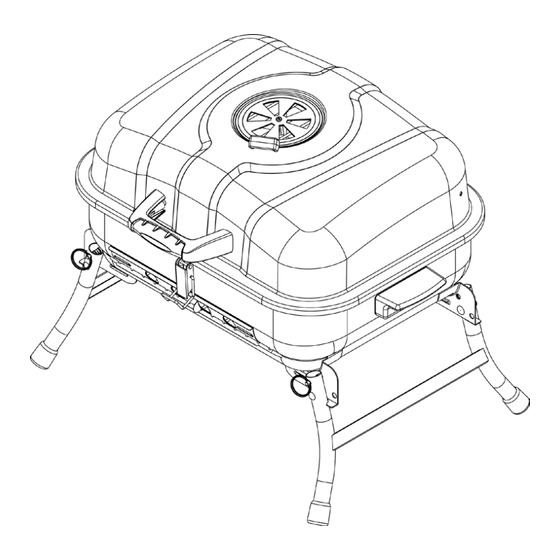

Outdoor Charcoal Barbecue Grill
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only
(outside any enclosure)
WARNING
FOR YOUR SAFETY:
1. Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage.
2. Read the installation, operation, and
maintenance instructions thoroughly before
installing or servicing this equipment.
3. Failure to follow these instructions could
result in fire or explosion, which could cause
property damage, personal injury, or death.
Made from 70% Bagasse
(Environmentally Friendly Sugar
Cane Pulp By-product)
OWNER'S MANUAL
Model No. CBT711W-C
Table of Contents
Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
Exploded View & Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Assembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Initial Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Cooking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Save these instructions for future reference. If you are assembling this unit for
someone else, give this manual to him or her to read and save for future reference.
Manufactured in China for:
Blue Rhino Global Sourcing, LLC
Winston-Salem, NC USA
1.800.762.1142, www.bluerhino.com
© 2007 Blue Rhino Global Sourcing, LLC. All Rights Reserved
UniFlame
is a Registered Trademark of Blue Rhino Global Sourcing, LLC.. All Rights Reserved.
®
CBT711W-C-OM-100 EF
Advertisement
Table of Contents
Related Manuals for Uniflame CBT711W-C
Summary of Contents for Uniflame CBT711W-C
-
Page 1: Table Of Contents
Manufactured in China for: Blue Rhino Global Sourcing, LLC Winston-Salem, NC USA 1.800.762.1142, www.bluerhino.com © 2007 Blue Rhino Global Sourcing, LLC. All Rights Reserved UniFlame is a Registered Trademark of Blue Rhino Global Sourcing, LLC.. All Rights Reserved. ® CBT711W-C-OM-100 EF... -
Page 2: Important Safeguards
This grill should be thoroughly cleaned and inspected on a regular basis. Use only Blue Rhino Global Sourcing, LLC. factory authorized parts. The use of any part that is not factory authorized can be dangerous. This will also void your warranty. -
Page 3: Exploded View & Hardware
Contact 1.800.762.1142 for assistance. Do not return to place of purchase. Parts List Exploded View Cooking Grid 55-07-115 Lid Handle 55-07-121 Air Vent Set 55-07-111 55-07-120 Charcoal Grid 55-07-115 Top Hinge (2) 55-14-652 Bottom Hinge (2) 55-14-653 Side Handle (2) 55-07-130 Warming Rack 55-07-132... -
Page 4: Assembly Instructions
To complete assembly you will need: • (1) Bag of charcoal. Note: You must follow all steps to properly assemble grill. Typical assembly: approximately 30 minutes. Attach Top Hinges and Lid Handle Outdoor Charcoal Barbecue Grill Model No. CBT711W-C Attach Air Vent Attach Bottom Hinges... - Page 5 Contact 1.800.762.1142 for assistance. Do not return to place of purchase. Attach Side Handle Supports and Side Handles Attach Legs Unfold Legs Attach Lid page no.
- Page 6 Assembly Instructions (continued) Insert Charcoal Grid Insert Cooking Grid Outdoor Charcoal Barbecue Grill Model No. CBT711W-C Insert Warming Rack Lock Lid Unlock Lid...
-
Page 7: Operating Instructions
Contact 1.800.762.1142 for assistance. Do not return to place of purchase. Fold Up Legs Note: Always lock lid before folding legs. Unfold Legs Note: Always open legs completely and are secured in place before lighting. Operating Instructions This appliance is designed for use only with quality charcoal briquets, lump charcoal and cooking wood. -
Page 8: Cleaning And Care
1.800.762.1142. Limited Warranty Blue Rhino Global Sourcing, LLC (“Vendor”) warrants to the original retail purchaser of this product, and to no other person, that if this product is assembled and operated in accordance with the printed instructions accompanying it, then for a period of one (1) year from the date of purchase, all parts in such product shall be free from defects in material and workmanship. - Page 9 (“le 1.800.762.1142. appelez www.bluerhino.com article enregistrer veuillez garantie, offert service l’appareil CBT711W-C-C nº modèle extérieur, usage nettoyage bicarbonate extrême soit d’endommager (800)-762-1142 27104, Carolina North Winston-Salem, Sourcing, Rhino Blue barbecue. fabricant.
