eXentro ECU emergency control unit
Safety and Installation Guideline

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eXentro ECU and is the answer not in the manual?

Questions and answers

Summary of Contents for GRAF & MEYER eXentro ECU

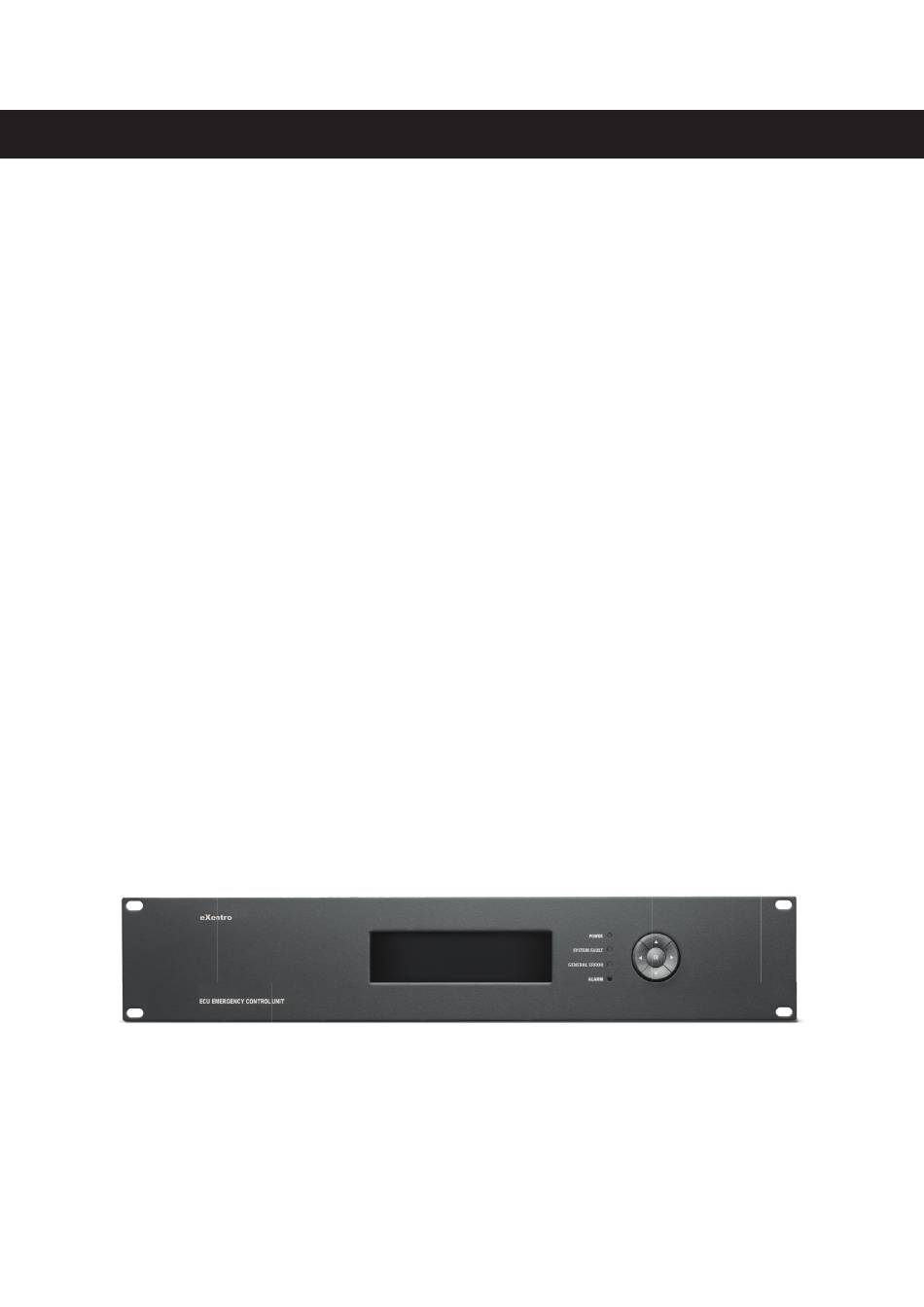

  • Page 1 ECU emergency control unit Safety and Installation Guideline...
  • Page 2 The manufacturer reserves specification privileges. Information in this manual is subject to change without prior notice or obligation.

  • Page 3: Table Of Contents

    2. Declaration of Conformity 12.1 Cable requirements 12.2 System overview 3. Warranty Period 12.3 Line monitoring & End of Line dummy load: 12.4 eXentro ECU 4x4 card card configuration options: 4. Service 12.5 Backup amplifier: 12.6 Message storage cards: 5. Description 12.7 External signal input &...

  • Page 4: Important Safety Information

    This product is intended for installation by professional installers only! This document is intended to provide professional installers with basic installation and safety guidelines for the eXentro ECU emergency control unit in typical fixed voice alarm installations. Please read this document before attempting installation.
  • Page 5 1. Important Safety Information Important Safety Instructions 1. Read these instructions. 2. Keep these instructions – for future reference. 3. Heed all warnings – on the product and in all product documentation. 4. Follow all instructions. 5. Do not use this apparatus near water. 6.

  • Page 6: Declaration Of Conformity

    RoHS2 Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment. When the eXentro ECU emergency control unit is used in combination with other eXentro Voice Alarm components, it is in accordance with the following standard:...

  • Page 7: Description

    • Multiple backup amplifiers – all 12 outputs of the eXentro ECU unit can be covered by 1 backup amplifier channel > to increase the integrity of the system up to 3 backup amplifier channels can be connected to a single eXentro ECU unit covering all 12 zones (1 backup amp for each 4 zones) •...

  • Page 8: Quick Start Guide To Initial Setup

    6. Quick Start Guide to initial setup 6.1 Unpacking While unpacking the eXentro ECU emergency control unit, please inspect the unit. If you find any damage, notify your supplier immediately. Be sure to save the carton and all packing materials in case you have to send the product to the supplier.

  • Page 9: Front & Rear Indicators And Connections

    7. Front & rear indicators and connections 7. Front & rear indicators and connections 7.1 Front panel indicators 1. POWER LED – GREEN: indicates the presence of the internal power supply 2. SYSTEM FAULT LED – YELLOW: indicates a system failure 3.
  • Page 10 (an internal jumper can be set to change to a normally closed contact) • Error 2 (General) - closed when an error is found in the system, also when the eXentro ECU is de-energized. • PSU Fail – closed during a 230 VAC failure 20.

  • Page 11: Technical Specifications

    8. Technical Specifications 8. Technical Specifications Line Inputs (4 zone card) 4x Audio: 0 dB, balanced. Range: -90 to +6 dB Line Outputs (4 zone card) 4x Audio, 1x Auxiliary, 1x Backup amp: 0 dB, balanced. Range: -90 to +6 dB Amplifier inputs (4 zone card) 4x Zone amplifier / 1x Backup amplifier Loudspeaker A/B outputs (4 zone card)

  • Page 12: Expansion Cards

    Appendix A & B for amplifier & backup amplifier connections and Appendix J for more information on the expansion card headers. 9.2 eXentro ECU zone controller card (optional) 9.2 eXentro ECU zone controller card (optional) The zone controller card allows control of audio inputs 1-4 (only), which can be routed to output...
  • Page 13 9. Expansion cards 1-4 (only), including volume control. Up to 4 Bose CC-4 wall controllers can be connected. This card does not influence the emergency paging routing. Each ECU can be expanded with 1 zone controller card. Make sure to carefully install the zone controller card and the small back plate at the back (to cover the message cards).

  • Page 14: Exentro Ecu Eth Card (Optional)

    10. eXentro ECU redundancy modules (optional) 9.3 eXentro ECU ETH card (optional) Instead of using the USB port, one can connect to the ECU unit using a Lan connection which can be used to setup the system during installation mode or for monitoring purposes.

  • Page 15: Exentro Fire Panel (Fp)

    IMPORTANT NOTE: If the Panel disabled indicator is 'flashing' while the ERROR indicator & Buzzer are activated, this indicates that the communication between the eXentro ECU and the panel is lost; Alarm messages and microphone can not be operated anymore from this panel! 2.

  • Page 16: Exentro Evacuation Panel (Ep)

    IMPORTANT NOTE: If the Panel disabled indicator is 'flashing' while the ERROR indicator & Buzzer are activated, this indicates that the communication between the eXentro ECU and the panel is lost; Alarm messages and microphone can not be operated anymore from this panel! 2.

  • Page 17: Exentro Fire Alarm System Interface (Fas)

    11. Emergency panels 11.3 eXentro fire alarm system interface (FAS) The FAS has the lowest priority of the emergency panels in the system and is located inside or near the Fire Detection/Alarm System. When the Fire Alarm system is triggered (e.g. by a smoke detector) it will trigger 1 or more (contact closure) inputs of the FAS.

  • Page 18: Fp/Ep/Fas Settings And Connections

    11. Emergency panels 4 buttons for each used panel in the system independently. Note: If for example button ‘B’ is disabled, this button cannot be used anymore to enter the ‘Panel Enable’ code which requires a combination of 3 buttons! So when disabling a button, make sure to set the right code for the ‘Panel Enable’...
  • Page 19 Alarm relay NO NOTE 2: Connect the shield of the cable entering the emergency panel to the housing of the panel! At the side of the eXentro ECU, the shield of this cable must be connected to the 19" rack cabinet!
  • Page 20 Error relay COM* Alarm relay NO R1: Button A Reset buzzer Common Lamp test All zones Button D Common 11. Emergency panels Button C Reset evacuation R6: not used Button B Start evacuation R5: not used Button A Microphone Common R4: Button D mainboard R7: Button ALL ZONES...

  • Page 21: Exentro Fp/Ep Ze Module

    11. Emergency panels Please note that: If more panels are connected (of the same type), use the ID (RS485 address) setting to set individual priority for microphone announcements. Priority handling of alarm messages is only determined by the panel type. Although a Fire Panel has the highest priority in the system, to give an emergency panel a higher priority, change its panel type to Fire Panel (dipswitch 1) and set its RS485 address to higher priority (1= highest, 32 = lowest).
  • Page 22 11. Emergency panels 11.6.1 Connections and settings: 1.Dipswitch to select card address 1 to 16: Address: Switch 1 (D0) Switch 2 (D1) Switch 3 (D2) 0 12 zone buttons 12 zone buttons Switch 4 (D3) 0 Button 109- 121- 133- 145- 157- 169-...

  • Page 23: Exentro Fas Ze Card

    11. Emergency panels Example of an expanded Evacuation panel with 48 buttons: 11.7 eXentro FAS ZE card The 12 input ZE card for the FAS is the same as the FP/EP ZE module except that the button front panel is not included. Control of the 12 inputs is done by using the contact closure inputs (change dipswitch 14 on the main board to select between push or hold contacts for these inputs).
  • Page 24 11. Emergency panels Alarm relay NC Alarm relay COM 24V input relais card relais card Alarm relay NO Error relay NC Error relay COM Connections, when mounted on a: Error relay NO Alarm relay COM Error relay NO* Error relay COM* Alarm relay NO FP/EP ZE module and FAS ZE card...

  • Page 25: Power Consumption

    This contact closure output can be used to trigger flash lights or other external devices. The GPO card is linked to an eXentro ECU unit, to which it is 'connected to', for example; a GPO card placed in a FAS, which is connected to the eXentro ECU master unit, can only link relay contacts to outputs of this master unit.

  • Page 26: Hardware System Configuration

    The maximum distance of this connection is 500 meter, but will decrease depending on the total power consumption of the number of emergency panels and expansion modules/cards Pin: Signal: Cat 5e/6 NOTE: The pin layout of the eXentro ECU and NF+ (Mic signal) White/Orange Emergeny panel connection are reversed!
  • Page 27 12. Hardware system configuration ECU unit Link output to input - cabling pin out (on RJ45): Pin: Signal: Cat 5e/6 RS485B White/Orange RS485A Orange not used White/Green Digital Out + Blue Digital Out - White/Blue not used Green White/Brown Power Brown Make sure the Digital Audio and RS485 signal are always using a twisted pair from the used cable! The maximum distance between each 2 ECU units is 300 meter and max.

  • Page 28: System Overview

    12. Hardware system configuration 12.2 System overview Below picture shows an overview of the internal connections between different eXentro Voice Alarm components, batteries, 19” rack accessories and external connections to different eXentro emergency panels, loudspeakers and audio sources. * Add End of Line dummy load: for more information see appendix C. ** Energy Save mode connection, see chapter 12.8 for more information *** Cable ferrites (included in carton) 1.

  • Page 29: Line Monitoring & End Of Line Dummy Load

    50% deviation of the connected load, before a fault is triggered; after a speaker line is calibrated and the found load value (in Watt) is stored, the eXentro ECU automatically applies above percentages to the found load and displays these. For example: when a 500W load on line X (A+B) is found, the deviation options will be displayed as: 25W, 50W, 100W, 150W, 250W.

  • Page 30: Exentro Ecu 4X4 Card Card Configuration Options

    12. Hardware system configuration 12.4 eXentro ECU 4x4 card configuration options: Each zone output features A and B loudspeaker connections, increasing safety and reliability in a single alarm zone. If one of the speaker lines fails, this line will be disconnected while the other line stays operating: this results in a maximum SPL loss of 3 dB.

  • Page 31: Message Storage Cards

    Alarm 2) can be played at the same time routed to different outputs. Routing of these messages is done using the System menu or by using the eXentro ECU installer software. The emergency panels also contain A/B/C/D buttons used (if programmed) for group of zones;...
  • Page 32 12. Hardware system configuration NOTE: when recording alarm/slowhoop tones make sure to use triangle shaped tone signals having a crest factor of 1.732 (4.77 dB) or higher. Sine wave shaped signal are not allowed: all 48 VDC currents for power consumption are measured using a triangle shaped emergency tone signal! See below for an example of a triangle based slowhoop signal, starting at around 500-700 Hz and increasing to 1200-1400 Hz in 3.5 seconds: When adding pre-recorded messages, these should have a crest factor of about 12 dB.

  • Page 33: External Signal Input & Alarm Signal Output

    NOTE: this contact/resistor configuration is used 4.7 kOhm to indicate errors from external devices, however the eXentro ECU will also monitor this line for Error switch 4.7 kOhm 'Short circuit' & 'Open line', which, when such a situation occurs, will also display an error type indicating 'Short circuit' or 'Open line'.

  • Page 34: Vdc Battery Backup Input

    Error 2 contact output (NO): this potential free general error output contact is activated as long as there is an error in the system, also when the eXentro ECU is de-energized. PSU failure contact output (NO): this potential free output contact is activated when a PSU failure (230 VAC) is found in the system.

  • Page 35: User Control And System Setup

    All basic settings of the system can be changed using the graphic display and navigation buttons. For more advanced settings; use the eXentro installer software to get access to all system settings. For more information refer to the eXentro ECU emergency control unit – system setup guide.

  • Page 36: Error Messages

    14. Error Messages 14. Error Messages The eXentro ECU emergency control unit will report different error messages, depending on the failure found. For general errors, indicated by the yellow 'GENERAL ERROR' indicator and buzzer, below error list shows an overview of all possible error messages related to different parts/components in the VACIE: Amplifier related errors: Error message &...
  • Page 37 14. Error Messages External contacts/input errors: Error message for: Explanation: Mains error Input is triggered by the 'Mains power contact' of the eXentro C48, 1 or more PA amplifiers or by the circuit breaker error contact External error Input is triggered by for example the 'Amp/PSU error contact' of an PA amplifier or by the Redundancy module External signal input Ext.

  • Page 38: Trouble Shooting

    15. Trouble shooting 15. Trouble shooting No power • Turn the ECU unit on, if not OK; • Check the presence of 230 Vac and 48 Vdc power Power is on but no sound in 1 or more zones • Verify the source is connected and if it is playing audio, if OK; •...

  • Page 39: Appendix A: Amplifier & Loudspeaker Line Options

    Unit link in Unit link out eXentro ECU emergency control unit Instead of using 1 amplifier channel for each alarm zone, the following configurations are also possible: Option 1: 1 amplifier channel used for all 4 zones, including 1 Backup amplifier...
  • Page 40 Unit link in Unit link out eXentro ECU emergency control unit Make sure the backup amplifier channel is configured in the same way as the zone amplifier channels (either at 50 V or 100 V / 100 V + Transformer) and that the maximum output power rating is at least the same of the zone amplfiier channel with the highest output power rating.

  • Page 41: Appendix B: Backup Amplifier Configuration Options

    Amp in 10 100V Line output 10 Amp in 11 Line output 11 100V Amp in 12 Line output 12 100V Backup 3 Backup 3 100V AUX 1 AUX 2 eXentro ECU emergency control unit AUX 3 Unit link out Optie 1...
  • Page 42 Backup 3 AUX 1 AUX2 AUX3 eXentro ECU emergency control unit Unit link out OPTION 2 This option requires specific wiring of the backup amplifier output to the right backup amplifier inputs on the 4x4 cards. When connected in the right way the ECU unit will autimatically detect the number of connected backup amplfiers during a calibration run.

  • Page 43: Appendix C: End Of Line Dummy Load

    Appendix C: End of Line dummy load Appendix C: End of Line dummy load The End of Line dummy load adds a load of about about 8 W at 1 kHz and about 23 W at 22 kHz to a 50/100 V loudspeaker line. To avoid loudspeaker line errors due to temperature deviation (which affect the resistance of copper) the EOL dummy load compensates temperature deviation to a certain extend.

  • Page 44: Appendix D: Loudspeaker Lines At 50 V/100 V And Cable Loss

    Appendix D: Loudspeaker lines at 50 V/100 V and cable loss Appendix D: Loudspeaker lines at 50 V/100 V and cable loss Connecting 100 V loudspeakers on lines with different voltages: Connecting a 100 V loudspeaker on a 50 V amplifier output will not cause any problems; this does however result in a loss of sound pressure level.

  • Page 45: Appendix E: Emergency Panel Text Labels & Requirements

    Appendix E: Emergency panel text labels & requirements Appendix E: Emergency panel text labels & requirements Below drawings show the size of each of the text labels used in the eXentro fire/eVACuation panel and their optional ZE module: NOTE: all labels shall be legible at 0.8 meter distance in an ambient light intensity from 100 lux to 500 lux.

  • Page 46: Appendix F: Emergency Power Supply Battery Capacity

    230 VAC and needs to deliver output power, while operating from 48 VDC and current draw exceeds 12 A. Power consumption (A): eXentro ECU eXentro PA 8125 eXentro PA 8250 48 Vdc fan Idle current 1.75...
  • Page 47 Appendix F: Emergency power supply battery capacity Slow whoop & pre-recorded message: Compensation for effective duration of slow whoop (C ): 0.875 (0.5s OFF + 3.5s ON = 87.5%) Compensation for effective duration of pre-recorded message (C ): 0.8 (2s OFF + 8s ON = 80%) Total time emergency signal: 28s Time slow whoop (T ) versus total: 8/28s...

  • Page 48: Appendix G: En54-16 Optional Requirements

    Appendix G: EN54-16 optional requirements Appendix G: EN54-16 optional requirements The eXentro Voice Alarm system has been certified for the following EN54-16 optional requirements: 7.6.2 Manual silencing of the voice alarm condition 7.7.2 Manual reset of the voice alarm condition Output to fire alarm devices* Voice alarm condition output Indication of faults related to the transmission path to the CIE...

  • Page 49: Appendix H: Manufacturing A Vacie / Rack Building

    Gräf & Meyer. Refer to the 'CE-label procedure from Gräf & Meyer to obtain approval for a certified VACIE. EN54-16 certified components: eXentro ECU emergency control unit* eXentro fire panel* eXentro PA 8125/8250 power amplifier* eXentro evacuation panel*...
  • Page 50 Appendix H: Manufacturing a VACIE / Rack building Rack ventilation: Forced air flow is used to cool down the VACIE, maintaining an internal temperature of around 21°C. Below pictures show the installation and location of fans & thermostat, blind panels and the order of component to be mounted, ensuring optimal airflow.
  • Page 51 Appendix H: Manufacturing a VACIE / Rack building Blind panel requirements: • ECU: add a 1U blind panel above and below unit • PA: 2 amps can be put on top of each other, add a 1U blind panel above and below unit(s) •...
  • Page 52 Appendix H: Manufacturing a VACIE / Rack building 230 VAC mains & Mains filter: Mount the AC mains filter(s) at the bottom of the 19” rack, as close to the mains cable entry at the rear of the 19” rack. Make sure the body of the AC filter is properly mounted to an unpainted part of the metal of the bottom of the 19”...
  • Page 53 Appendix H: Manufacturing a VACIE / Rack building consumes energy during a single 230 VAC failure. Below list shows the type of circuit breaker needed for each eXentro VA system component: Curve type eXentro ECU eXentro PA 8125 eXentro PA 8250 eXentro C48 In addition to these circuit breakers one can add an auxiliary error contact unit to each of these.
  • Page 54 Appendix H: Manufacturing a VACIE / Rack building Bundle and label wires of the same type (e.g. audio line cables) to each other; do not bundle with other wires (like loudspeaker cables), only horizontal/vertical crossing of wires of different types is allowed: Type of cabling used: •...
  • Page 55 Appendix H: Manufacturing a VACIE / Rack building ECU – PA audio connection: The shield (GND) of the audio line cable between ECU and PA should only be connected to the ECU; leave the GND wire disconnected on the PA line inputs. ECU error inputs: Connect below component error output contacts to the following ECU error inputs: ECU Mains error input:...

  • Page 56: Appendix I: Connecting A Fire Alarm

    Appendix I: Connecting a fire alarm system directly to an eXentro fire/evacuation panel Appendix I: Connecting a fire alarm system directly to an eXentro fire/eVACuation panel The eXentro fire alarm system interface is used for zoned eVACuation. If only automatic eVACuation of ALL control is needed, one can connect the fire alarm system to an emergency panel directly.
  • Page 57 Appendix I: Connecting a fire alarm system directly to an eXentro fire/evacuation panel See chapter 11 for more information on how to connect other input contacts, error outputs contacts and more. NOTE: take into account that the fire alarm system directly controls an emergency panel and that this automatic eVACuation can only be stopped on this same emergency panel! Instead of using the ‘...
  • Page 58 Appendix J: Expansion card headers, jumper settings and memory chip Appendix J: Expansion card headers, jumper settings and memory chip 1. Header for eXentro ECU 4x4 card 1 (factory mounted) 2. Header for eXentro ECU 4x4 card 2 (optional) 3. Header for eXentro ECU 4x4 card 3 (optional) 4.
  • Page 59 C48 Charger manual. • Clear the error log file of eXentro ECU; if failures re-occur, make sure to check the system and solve found errors first. All faulty components should be replaced – return faulty components to the manufacturer for service.
  • Page 60 How to reach the sales offices in Europe Germany GRÄF & MEYER GmbH Ringstraße 1 D-66459 Kirkel Germany Fon: +49 (0) 6841 / 934 93-0 Fax: +49 (0) 6841 / 934 93-10 info@gplusm.de www.gplusm.de www.eXentro.de...
