4001CD™ eWON eWON eWON Installation Guide ver 1.3 1 Product description ................3 1.1 Introduction....................3 1.2 General specification of the hardware platform ..........3 1.3 Functions of the eWON4001CD™ ..............3 1.3.1 General ....................3 1.3.2 Remote Access Server functions ..............3 1.3.3 Ethernet to Serial Gateways ...............

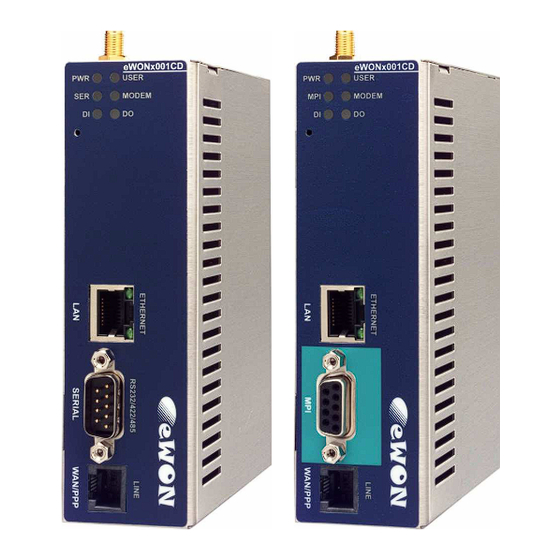

4001CD™ eWON eWON eWON Installation Guide ver 1.3 1 Product description 1.1 Introduction The eWON4001CD™ is the Compact Design evolution of the eWON4001™. The eWON4001CD™ is the entry level industrial-grade Router for System Integrators in utilities/infrastructure projects and machin Builders/OEMs. See our web site http://www.ewon.biz...
4001CD™ eWON eWON eWON Installation Guide ver 1.3 1.3.3 Ethernet to Serial Gateways • MODBUS TCP to MODBUS RTU • XIP to UNITELWAY • EtherNet/IP™ to DF1 • FINS TCP to FINS Hostlink • ISOTCP to PPI (optionnaly MPI) •...
4001CD™ eWON eWON eWON Installation Guide ver 1.3 1.5 Part Numbers and internal options Part Number structure of the eWON product range: EWaabzm Where: aa = Type of hardware platform • 51 = eWON4001CD™ b = Power supply • 2 = Low voltage 12-24DC power supply z = Serial Port type •...
4001CD™ eWON eWON eWON Installation Guide ver 1.3 2 eWON technical documentation The eWON technical documentation is structured in 4 different levels as shown in the table below: Level Title Contents Detailed description of the hardware platform, of its interfaces, available options.
4001CD™ eWON eWON eWON Installation Guide ver 1.3 3 Housing and markings 3.1 Housing Interfaces Power Ground Digital IO GSM antenna connector Leds Reset button hole LAN ETH port Ethernet 10/100 Serial port or MPI port WAN PPP port...
4001CD™ eWON eWON eWON Installation Guide ver 1.3 3.2 Markings The identification label of the eWON is placed at the left hand side of the housing. The label is composed of the following fields: COM type Required power supply Serial Number ../PSTN = PSTN modem at...
4001CD™ eWON eWON eWON Installation Guide ver 1.3 3.4 Equipment information and versions The eWON hardware and software revisions can be checked with a web browser on the eWON server. Once logged onto the eWON, clicking on the eWON logo shows these revisions.
4001CD™ eWON eWON eWON Installation Guide ver 1.3 3.5 Mechanical outline Ground SIM-card drawer (*) upper slider DIN rail latch Figure 4: Left: Mechanical Outline - Right: DIN-rail latch The eWON must be fastened on a 35mm DIN rail compliant with EN50022.
4001CD™ eWON eWON eWON Installation Guide ver 1.3 3.6 Mounting and environmental conditions The eWON unit has an IP31 protection grade. It is therefore not suited for outdoor mounting. The design of the unit is such that it has to be integrated in an enclosed electrical cabinet, protected from excessive heat, humidity and dust.
4001CD™ eWON eWON eWON Installation Guide ver 1.3 3.8.1 Auto fuse An auto fuse placed just after the power input protects the eWON devices against short circuits. This component returns by itself to its normal state when the short circuit has disappeared and after the component has been cooling down.
4001CD™ eWON eWON eWON Installation Guide ver 1.3 5 Specifications of communication interfaces and I/Os Ethernet Port The eWON4001CD has one ethernet interface: • a LAN (Local Area Network) with one port Specification Value Applicable standard 10/100BaseTX Isolation 1,5 kV...
4001CD™ eWON eWON eWON Installation Guide ver 1.3 5.7 Configurable serial port Specification Value Physical modes (configurable) RS232/RS485/RS422 Isolation module (optocoupler) 1 kV Pinout connector See label and appendix (Serial Port on page 27) Table 10: Serial port specification The configuration of the physical serial mode is done by a set of 4 dip switches located on left side of the unit.
4001CD™ eWON eWON eWON Installation Guide ver 1.3 5.8 MPI port The MPI port is easily identifiable with its light blue square surrounding a female DB9 connector. Specification Value Physical mode • kBauds • 19.2 kBauds • 45.45 kBauds •...
4001CD™ eWON eWON eWON Installation Guide ver 1.3 5.10 Digital output Specification Value Type of output Open drain (MOSFET) Max current (external source) 200mA @ 30 VDC Isolation 3,5 kV Pinout connector See label and appendix (Input/Outputs on page 26) Table 13: Specification of the digital output This digital output is activated by an open drain MOSFET transistor driven by an optocoupler.
4001CD™ eWON eWON eWON Installation Guide ver 1.3 6 IP parameters configuration Warning: normally you cannot communicate with a device of which you don’t know the IP parameters. Therefore, there is a special tool (called “eBuddy”) you can download from the eWON Internet site http://www.ewon.biz.
4001CD™ eWON eWON eWON Installation Guide ver 1.3 6.1 Resets Warning: you should not reset your eWON unless you have been told to do so by someone of our technical support. The concerned files (differs depending on reset type) are totally lost and unrecoverable after being formatted.
4001CD™ eWON eWON eWON Installation Guide ver 1.3 7 Technical support If you need technical support, simply fill out the form on the Web site http://www.ewon.biz or send an email with the problem description to support@ewon.biz. You will also find usefull documentation at http://support.ewon.biz...
4001CD™ eWON eWON eWON Installation Guide ver 1.3 8.2 Ethernet By default, only the LAN Ethernet interface of the eWON4001CD can be used to access the internal WebSite. 8.2.1 Ethernet LAN The eWON can be accessed by a 10/100BaseTX Ethernet connection. This connection can be made with two different cables (straight or crossed).
4001CD™ eWON eWON eWON Installation Guide ver 1.3 8.2.2 Direct connection If the eWON is connected directly to a PC, then use the crossed cable: Crossed cable As the LAN interface is “autosense”, you can use a crossed or straight ethernet cable, but generally, a direct connection is done with a crossed cable.
4001CD™ eWON eWON eWON Installation Guide ver 1.3 8.2.3 Connection over hub/router If the eWON is connected to a hub, it has to be connected like any other device, with a straight cable. Again, the wiring is as shown on the following picture, and care should be taken to keep the RX and TX signals on...
4001CD™ eWON eWON eWON Installation Guide ver 1.3 8.3 RJ45 connector The RJ45 connector has got the following pins numbering, as it can be seen on the following picture, showing it from different angles: page 25 of 30...
4001CD™ eWON eWON eWON Installation Guide ver 1.3 8.4 Input/Outputs Mating female connector (included): Manufacturer: Sauro http://www.sauro.net/ Part Number: CTF050VT Description Output digital signal (0V ground) DO_GND connected to the emitter of the transistor Output digital signal connected to the...
4001CD™ eWON eWON eWON Installation Guide ver 1.3 8.5 Serial Port Mating female connector (not included): Type Female DB9 with 4/40 blocking screws Pinout serial port (according to mode): RS232 RS485 RS422 Table 18: Pinout serial port page 27 of 30...
4001CD™ eWON eWON eWON Installation Guide ver 1.3 8.6 MPI port Mating male connector (not included): Type Male DB9 with 4/40 blocking screws MPI port pinout (DB9 female): B(+) A(-) Table 19: MPI port page 28 of 30...
4001CD™ eWON eWON eWON Installation Guide ver 1.3 8.8.2 Antenna specifications For eWON with GSM/GPRS/EDGE/HSUPA modem, the antenna specification is as follows: Specification Value Type Quadband 850/900/1800/1900 MHz Impedance 50 Ohms VSWR Max. 2.0 Antenna used must not exceed a...
