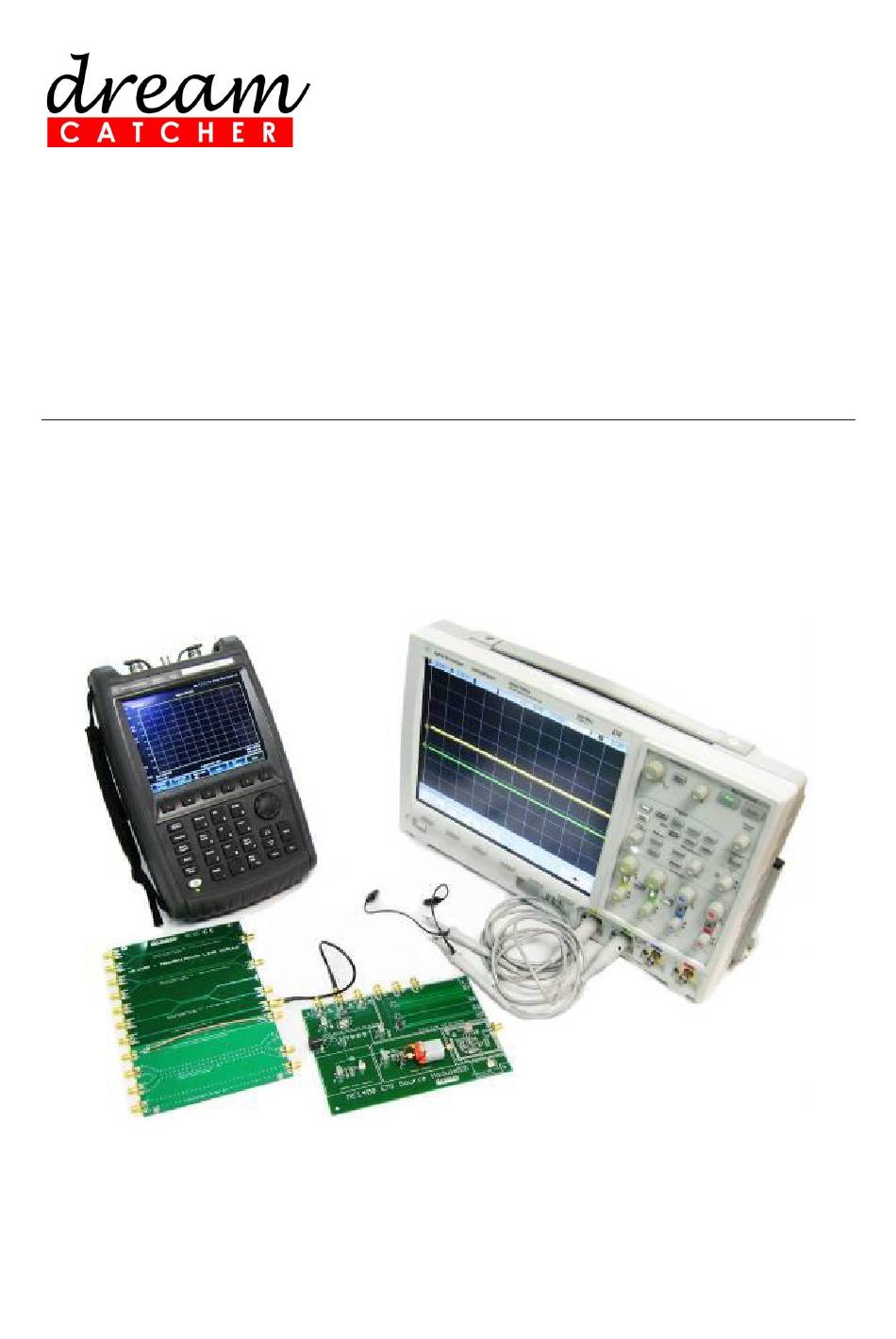

- Page 1 ME1400 EMI and EMC Courseware Ready-to-Teach package for EMI and EMC Quick Start Guide revision 2.02 Printed on 24 January 2019...
- Page 2 WARNING: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE WITH THE EMC RULES COULD VOID THE USER’S AUTHORITY TO OPERATE THE PRODUCT. ME1400 EMI and EMC Quick Start Guide - 2/13...
-
Page 3: Table Of Contents
Table of Contents Table of Contents ............................ 3 DreamCatcher Courseware Customer Login Guide ................4 1. Quick Setup and Verification ....................... 6 2. Support and Warranty ........................10 Appendix: Technical Specifications ...................... 11 Revision History ............................ 12 Contact Us............................. 13... -
Page 4: Dreamcatcher Courseware Customer Login Guide
3. If you are new customer, skip to step 5. If you are a returning customer, proceed to step 4. 4. If you are a returning customer, click Continue under the LOGIN section to login. NOTE: If you have created your DreamCatcher account before the 1 of September 2017, you will receive an e-mail request to reset your password. - Page 5 Download the registered product’s contents and materials NOTE: Products downloads are made available only for registered products. Click REGISTER NEW PRODUCT to register your product first. D. WARRANTY INFORMATION View your product’s warranty expiry date ME1400 EMI and EMC Quick Start Guide - 5/13...
-
Page 6: Quick Setup And Verification
5. Connect an RF coaxial cable from J2 (Medium-speed Output) to J6 (Digital Buffer with Termination with No GND Plane) as shown in Figure 1. 6. Power on the N9912A FieldFox RF Analyzer. ME1400 EMI and EMC Quick Start Guide - 6/13... - Page 7 EMC probe around the trace and observe the spectrum displayed on the screen of the N9912A FieldFox RF Analyzer. Describe your observation. 11. Switch S1 and S2 to the ‘OFF’ position, and turn off the power supply. ME1400 EMI and EMC Quick Start Guide - 7/13...
- Page 8 Set Stop Frequency to 15 MHz: [Freq/Dist] > {Stop} > [15] > {MHz} Set output power level to LOW: [Meas Setup 4] > {Output Power} > {Low} Scale: [Scale/Amptd] > {Autoscale} Perform Calibration: Normalization ME1400 EMI and EMC Quick Start Guide - 8/13...
- Page 9 10. Next, Switch S4 to the ‘ON’ position to turn on the brushed DC motor. Observe the spectrum and describe the differences as compared to your observations in Step 9. 11. Switch S4 and S5 to the ‘OFF’ position, and turn off the power supply. ME1400 EMI and EMC Quick Start Guide - 9/13...
-
Page 10: Support And Warranty
To retrieve the password for installation of the provided materials and software as well as the model answers and solutions for lab sheets, please register yourself at http://dreamcatcher.asia/cw under the Product Registration menu using the product key provided with the teaching courseware. -
Page 11: Appendix: Technical Specifications
Input voltage 5 Vdc Input current 0.25 A (typical) [1] When the DC motor is turned on. When the DC motor is turned off, typical current consumption is less than 10 mA. ME1400 EMI and EMC Quick Start Guide - 11/13... -
Page 12: Revision History
Revision History Revisions Date Notes 2.01 Initial document. 2.02 Added: DreamCatcher Courseware Customer Login Guide Changed “near-field probe” to “EMC probe” 2.03 23-Jan-19 ME1400 EMI and EMC Quick Start Guide - 12/13... -
Page 13: Contact Us
Contact Us Contact Us Acehub Vista Sdn Bhd (785702-P) A member of the DreamCatcher group 70-03-79,D’Piazza Mall, Jalan Mahsuri, Bayan Lepas, 11900 Penang, Malaysia. All rights reserved. No part of this document may be reproduced or transmitted in any form...
