Summary of Contents for Specialised Orthotic Services Baby Jogger

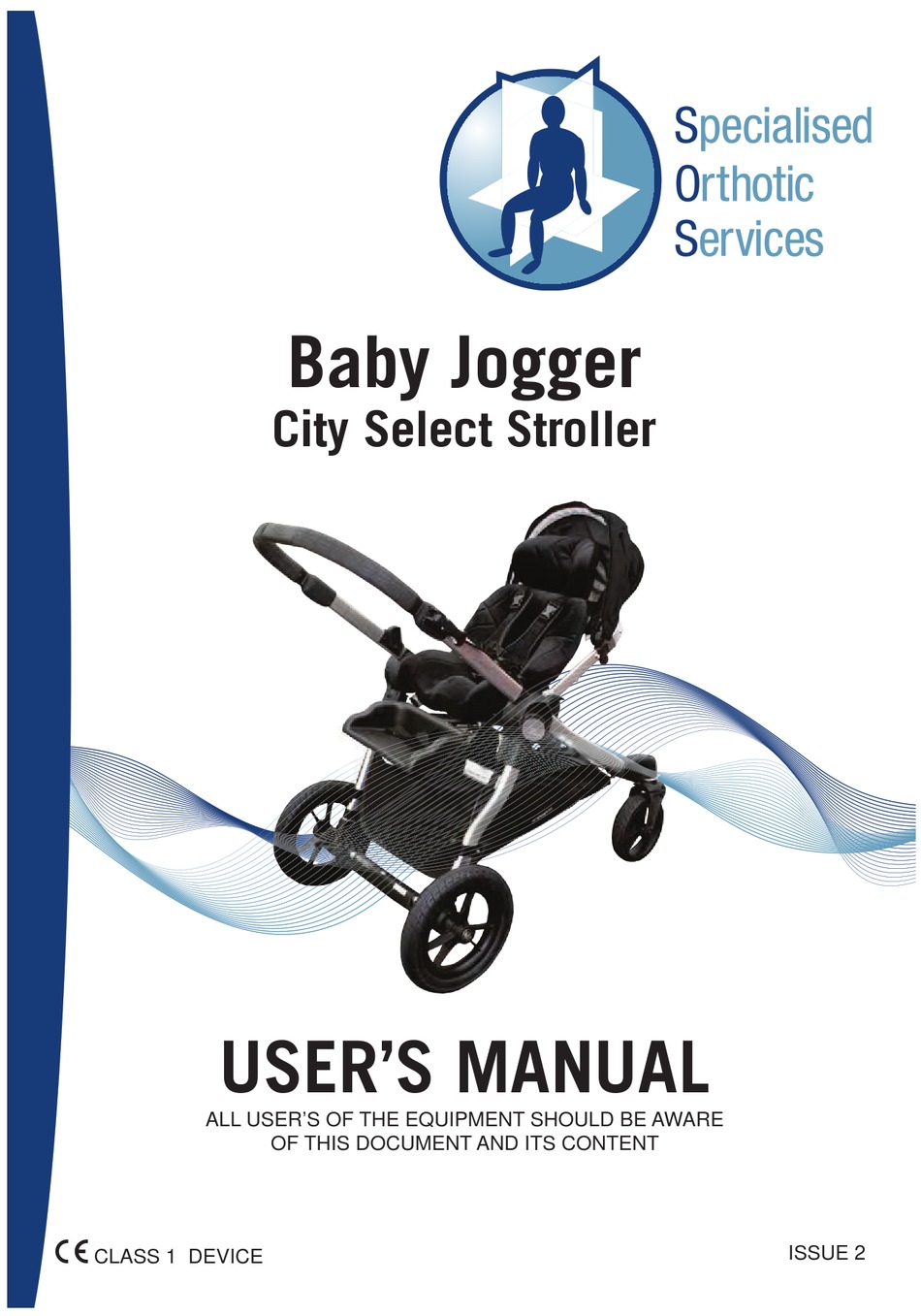

- Page 1 Baby Jogger City Select Stroller USER’S MANUAL ALL USER’S OF THE EQUIPMENT SHOULD BE AWARE OF THIS DOCUMENT AND ITS CONTENT ISSUE 2 CLASS 1 DEVICE...
-
Page 2: Table Of Contents
Index CONTENTS PAGE Index Introduction Parking Brake Operation Stability of City Select and Seating Systems Recommendations on Transport Safety Guidelines for Transportation Transportation 6 - 8 WTORS Manufacturers User’s Guide “Preparing City Select Stroller For Use” Unfolding the City Select Stroller Attaching the Wheels Quick Fold Front Castor Swivel Lock... -
Page 3: Introduction
CITY SELECT STROLLER Introduction • This Users Guide for the City Select Stroller is designed to give guidance on its use and maintenance. • maximum load is 23kg, this is the combined weight of the client and seating system • City Select Stroller would have been supplied with a SOS special seating system. -
Page 4: Stability Of City Select And Seating Systems
Stability of City Select Stroller and Seating Systems • ensure that the City Select Stroller and Seating System are safe to use, it is important that fitting the Seating System to the Stroller does not make the unit unstable. Each City Select Stroller when handed over to the user should be tested for static stability to the specified angle of 12 degrees (Fig.1). -
Page 5: Recommendations On Transport
Recommendations for the Transportation of City Select Stroller & Seating Systems The following information is intended to give guidance with regard to the use City Select Strollers & Seating Systems by wheelchair users and carers during transportation. • Specialised Orthotic Services Ltd have carried out extensive investigations into the suitability of the City Select Stroller for transportation use and has established clear guidelines for users. -
Page 6: Safety Guidelines For Transportation
General Safety Guidelines for Wheelchair User Transportation • All wheelchair / buggy users should transfer to vehicle seats whenever possible. • City Select Stroller is designed to be forward facing when used for transportation of the client in an adapted motor vehicle and users should not travel with the buggy at an angle or facing sideways to the direction of travel. -
Page 7: Transportation
“Wheelchair Tie down and Occupant Restraint System” (W.T.O.R.S.) and the SOS Baby Jogger Transportation Kit. The Stroller has been tested using a 4-point tie down system. - Page 8 1.2. WHEELCHAIR TIE DOWN SYSTEM • Wheelchair users should not travel in cars, taxis or minibuses, unless the wheelchair is tied down. • Please refer to your City Select Stroller & Seating System users guides for information regarding the recommended wheelchair tie down system to be used. •...
- Page 9 1.4. STOWAGE OF THE CITY SELECT STROLLER AND SEATING SYSTEM • During use of your Special Seating System it may be necessary for you to remove the Seating System and stow this along with the City Select Stroller in a vehicle. •...
-
Page 10: Unfolding The City Select Stroller
USER GUIDE 1.0 PREPARING THE CITY SELECT STROLLER FOR USE 1.1. UNFOLDING THE CITY SELECT STROLLER • Unsnap storage lock from around the frame (Fig.1.1a). • Pull bottom of frame up and away from handlebar (Fig.1.1b), the stroller frame will click into place (Fig.1.1c). -
Page 11: Attaching The Wheels
1.2. ATTACHING THE WHEELS • install front wheel: Lift up slightly on the front left portion of the stroller frame. Align the round opening on the wheel mount with the front wheel axle. Slide the front wheel into opening until it clicks into place (Fig.1.2a). Repeat on other side. • remove front wheel: Press gray tab on front wheel mount (Fig.1.2b), and slide front wheel out. • install rear wheel: Gently slide the rear wheel’s axle into the hole in frame until the wheel clicks into place (Fig.1.2c). -
Page 12: Quick Fold
1.3. QUICK FOLD • Stroller can be folded quickly with the seat removed, without removing the wheels, etc. • fold stroller: Remove child from seat and remove seating system. Pull up on both fold handles at the same time with a gentle tug (Fig.1.3a). The stroller will swing into the folded position (Fig.1.3b). •... -
Page 13: Front Castor Swivel Lock
1.4. LOCKING/UNLOCKING FRONT CASTOR’S SWIVEL LOCK • engage stationary wheel: Slide gray lever, located above front wheel, to the left (Fig.1.4a). Repeat on opposite side • engage swivel wheel: Slide gray lever, located above the front wheel, to the right to engage swivel (Fig.1.4b). Repeat on opposite wheel. Fig.1.4a Fig.1.4b... -
Page 14: Attaching & Releasing Seating Systems
1.5. ATTACHING/REMOVING THE SEAT • place seat on frame: Align seat adaptor brackets with mounting brackets on stroller frame (Fig.1.5a). • Slide seat into brackets until it clicks into place (Fig.1.5b). Ensure both sides of seat are securely fastened into frame before use. • To remove seat: Press gray tabs on Adaptor Brackets and pull up (Fig.1.5c). • Please refer to handbooks supplied with your seating system for any additional security devices (i.e. Retaining Straps) that need to be fitted prior to client use. -
Page 15: Seat Tilt Operation
1.6. SEAT TILT OPERATION • Squeeze lever located under the top of the seat (Fig.1.6a & 1.6b). • Pull down to lower seat and pull up to raise seat (Fig.1.6c), until it clicks into the desired position. Fig.1.6a Fig.1.6b Fig.1.6c 1.7. -
Page 16: Net Basket Fitting & Removal
1.8. NET BASKET FITTING • Fasten top snaps of basket around middle support bar of stroller frame and the bottom snaps of basket around side support bars of stroller frame (Fig.1.8a). • Hook the top front plastic loop over the metal knob on the front of the frame (Fig.1.8b). Repeat on opposite side. -
Page 17: Sun/Rain Canopy Fitting & Removal 16
1.9. SUN/RAIN CANOPY FITTING attach canopy to frame: Attach canopy brackets to sides of seat frame (Fig.1.9a. • • Remove the rain canopy from it’s bag. • Unfold the rain canopy and hook over the sunshade as shown (Fig.1.9c). • l the rear panel down between the Stroller handles and hook the front of the rain canopy around the footbox on the seating system (if fitted). - Page 18 Fig.1.9e Fig.1.9f...
-
Page 19: Removing The Client From The Seating System
USER GUIDE 2.0 2.1. PLACING CLIENT INTO SEATING IN CITY SELECT STROLLER • Apply rear wheel brakes. • tilt in the required position. • Make sure all client retaining straps are outside of seating system this will avoid the client sitting on them when placed in the seat. •... -
Page 20: Pushing The City Select Stroller
USER GUIDE 3.0 3.1. PUSHING THE CITY SELECT STROLLER • Apply rear wheel brakes & make sure client is comfortable/securely seated in the Stroller (see user guide 2.0). • tilt to suit the clients needs & adjust handlebar height. • rear wheel brakes (note: always apply rear wheel brakes when stationary for Release long periods of time). -
Page 21: Cleaning
USER GUIDE 4.0 4.1. CLEANING • Clean the frame with a damp cloth. • clean the wheels use warm soapy water. 4.2. MAINTENANCE • preserve the longevity of your stroller, it is important to perform simple, regular maintenance. • The tires on your stroller are foam filled. Though the P.S.I is printed on the tire, you will never need to inflate them. -
Page 22: If You Detect A Fault Or Breakage
REPAIRS & SERVICE Within the warranty period. All City Select Strollers supplied by Specialised Orthotic Services Ltd. carry a guarantee for 12 months when used normally. If during this period the product becomes defective and needs repair then please contact SOS (contact details on the back of the booklet). - Page 23 NOTES:...
- Page 24 If you require further copies of this handout or require further details relating to any of its content, then please contact us (Copyright applies): Unit 127/128, Fauld Industrial Park, Tutbury, Staffordshire. DE13 9HS. Tel: 01283 520400 Fax: 01283 520401 E-mail: enquiries@specialorthotic.com...
