Safety requirements for electrical equipment for measurement, control and laboratory use. Accordingly the CE mark has been applied to this product. Signed For and on behalf of Solartron Analytical, a division of Solartron Group Limited Authority: Engineering Manager Date: December 1995...
For specific safety details, please refer to the relevant sections within the manual. Solartron accept no responsibility for accidents or damage resulting from any failure to comply with these precautions. GROUNDING To minimise the hazard of electrical shock, it is essential that the equipment be connected to a protective ground through the ac supply cable.
EQUIPMENT MODIFICATION To avoid introducing safety hazards, never install non-standard parts in the equipment, or make any unauthorised modification. To maintain safety, always return the equipment to Solartron for service and repair. Safety.ii...
Page 10
Page Chapter 7 RS423; Printer Interface Introduction Standards Connections Baud Rate ASCII Output to a Printer Output of Status Information Printing Learnt Programs Printing the History File Chapter 8 Remote Control-GPIB Introduction and Standards Connections GPIB Switches Remote/Local Facility 1253 Remote Control Commands Interrogating Parameters 8.14 Measurement Output...
Page 14

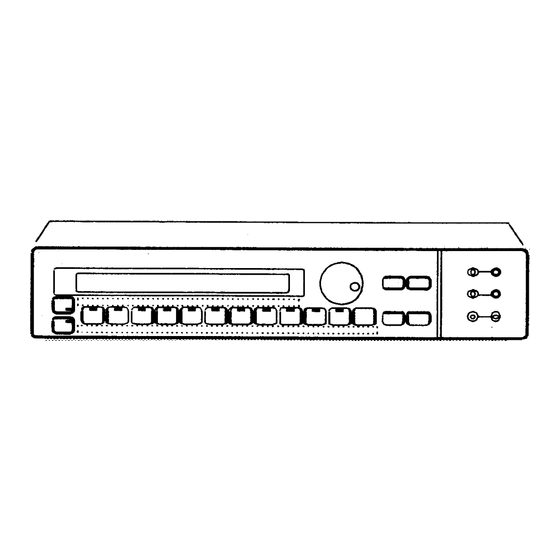

[Chapter 1] FACILITIES • LED annunciated keyboard with bright 40-character vacuum fluorescent display • Menu-driven hardware and processing control • Learnt program facility • Battery maintained memory, capable of storing learnt progra ms and menu settings ° for typically 1000 hours, with no mains power supply, at 20 C.
Page 16
The user should not attempt adjustments, maintenance or repair of the 1253 when it is powered. If repairs are necessary, consult a Solartron Service Centre. 1253 Op Man_DA...
[Chapter 2] Lever the hinged flap open with a screwdriver and lift out the voltage selector roller block. Refit the block with the chosen voltage value facing outwards. Check that the fuses fitted are of the correct value (Section 4.2 below) and, if necessary, change them.
[Chapter 2] CONNECTION PROCEDURE Before connecting the supply, ensure that the mains voltage selector on the rear panel is correctly set (Section 4.1), and that the fuses fitted in the mains input unit are correctly rated (Section 4.2). Ensure that the power on/off switch is ‘off’. This switch is located next to the mains input unit on the rear panel.
Page 33
[Chapter 3] NORMAL MODE OPERATIONS POWER-UP MESSAGES “POWER RESTORED,” indicates the 1253 unit has correctly remembered all existing menu settings, History File and Learnt Programs, after a mains supply interruption. “RESET” indicates the 1253 has returned all menu settings to the default state, but left the History File and Learnt Programs as they were.
[Chapter 4] MENU SUMMARY The following tables summarise the1253 menus and action key operations. Notes: { } denote choice via repeated presses of the front panel keys, e.g. {BIAS} is obtained by pressing the GENERATOR Set Up key three times. ( ) denote that a numerical entry is required, e.g.
Page 56
[Chapter 5] GENERATOR The GENERATOR menu sets up all steady-state Generator parameters. {AMPL} AMPLitude. This is the rms amplitude of the ac component of the Generator output, in the range 0V to 10.23Vrms* with a resolution of 10mV. {FREQ} FREQuency. The frequency can be set in the range ImHz to 20kHz with a maximum resolution of l in 4000.
Page 69
[Chapter 5] The following lines are available; words in brackets represent messages that may be displayed, or numbers (italics): (ready) (program) 1253 GPA (busy) TIME (hh:mm:ss) (pause) (remote) (run) (kill) (off) GENERATOR (freeze) CARRIER (low) (kill-ext) (on) (Freeze-ext) (stop) (run) (analyzer 1 range) ANALYZERS (idle)
[Chapter 5] PAUSE/CONTINUE Inserts a pause when learning or editing programs. If a pre-programmed pause is reached during the execution of a program, the LED will flash on and off. Press the key to continue. LEARN PROGRAM Five options are available. Each option requires the entry of a program number. Use the number entry mode to enter the program number then press ENTER.
Page 80
[Chapter 7] INTRODUCTION An RS423 serial interface is provided on the rear panel. This is for data output to a printer and can be used for printing results, status information or learnt programs. The interface is always ON, allowing printing at anytime. Remote control of the 1253 must be performed via the GPIB.
Page 84
“IEEE Standard Digital Interface for Programmable Instrumentation”. A useful introduction to the theory of the GPIB is given in the Solartron monograph: “Plus Bus –the Solartron GPIB”. GPIB CAPABILITY CODE The GPIB Interface in the 1253 conforms to the following sub-functions within the...
[Chapter 8] CONNECTIONS Fig 8.1 GPIB connector and switches on the 1253 rear panel. Connection to the GPIB is made via the 24-way connector on the rear panel of the 1253. See Fig. 8.1. The pin connections conform to the IEEE 489, 1978 Standard. SWITCHES There are eight GPIB switches on the rear panel of the1253, as shown inFig.81.
[Chapter 8] 1253 REMOTE COMMAND CODES The 1253 command codes are based on front panel operations. Each command code consists of a simple ASCII-character string, often qualified by an argument (also in ASCII). Command codes are presented below as menu-commands that set menu parameters;...
Page 91
[Chapter 8] INSTANT-ACTION COMMANDS Function Code & Argument Meaning/ Argument Value/Range Units 5.2.1 GENERATOR STOP 5.2.2 ANALYSERS SINGLE single RECYCLE recycle stop 5.2.3 PLOT AXES PLOT AXES 5.2.4 VERNIER VERNIER VA I frequency amplitude bias 5.2.5 VIEW FILE DISPLAY UF D 1 to approx 400* output file number LIST...
Page 94
[Chapter 8] ALL COMMANDS (ALPHABETICAL ORDER) CODE MENU/KEY PARAMETER/SELECTION GENERATOR AMPL GENERATOR BIAS BREAK/TEST BREAK DISPLAY ERROR BEEP MISCELLANEOUS CLEAR LAST ERRORS DISPLAY CO-ORDS PAUSE PAUSE/CONT ANALYZERS DEMOD MISCELLANEOUS REPEAT LAST RESULT EXEC. PROGRAM EXECUTE VIEW FILE LIST SCALING DIVIDE BY GENERATOR FREQ SWEEP...
Page 107
[Chapter 9] ERROR / WARNING CODE SUMMARY GROUP 0: COMMAND STRUCTURE These errors indicate when the user has incorrectly entered or specified a command. CODE Explanation Unknown Command. Argument mismatch. The wrong type, or number of arguments was used. Argument out of range. Floating point format error.
Page 109
Calibration constants in error; l out of 3. One out of the three internal copies of the calibration constants is corrupted. The 1253 is still usable and measurements are valid, but contact a Solartron service facility. Calibration constants in error; 3 out of 3. All of the three internal copies of the calibration constants are corrupted.
Page 117
[Chapter 11] Chapter 11 Learnt Programs Section Page Learnt Program Facilities 11.2 Program Storage and Size 11.2 11.3 Programming from the Front Panel LEARN PROGRAM Selections 11.3 {clear} 11.3 {learn} 11.4 {edit} 11.6 {copy} 11.7 {list} 11.8 EXECUTE PROGRAM 11.8 11.9 Program Example Learning the Program...
Page 118
[Chapter 11] LEARNT PROGRAM F ACILITIES The 1253 can store a sequence of measurement instructions for execution when required. These Learnt programs are useful where test sequences must be duplicated a number of times, for example in production testing. One instruction is equivalent to a single menu selection. A typical comprehensive program uses less than 50 instructions, each instruction using one memory block.
Page 120
[Chapter 11] PROGRAM clear If number n is wrong, press CLEAR to cancel the operation ENTER Measurement readings, if any To clear all menu settings and programs 1 to 9, use the BREAK {initialise} selection. {learn} To learn a new program, select the {learn} option and, using the number-entry key, input the number of the program to be learnt.
Page 123
[Chapter 11] {copy} Copying is used to make duplicate copies of learnt programs. To copy a given (source) program to another (destination) program select the {copy} option and enter the number of the source program: PROGRAM (n) {copy} ENTER COPY PROG n You now key in the number of the destination program, m.
[Chapter 11] REMOTE PROGRAMMING Remote control programming facilties parallel those available under front panel control. Additional facilities provided are line (instruction) numbering, JUMP instructions, and listing to remote device for external storage, etc. All remote learnt program manipulations can be performed whilst the 1253 is making measurements, but Execute Program commands will not be implemented until the measurement is complete.
Page 133
[Chapter 11] LINE NUMBERING Each learnt instruction can be numbered, for reference purposes or to enable the JP (jump) command to be used. When in ‘program learn’ mode or ‘edit insert’ mode you simply precede each command code by the required number (integer 1 to 98) e.g. 50 SG Line 50 is then the ‘Stop Generator’...
Page 134
[Chapter 11] Example I: CONTROLLER PROGRAM FOR TRANSFERRING LEARNT PROGRAM 2 FROM 1253 VIA GPIB PORT, WITHOUT HANDSHAKE Instruction Meaning DIM A$ (100) Allocate temporary store space. OUTPUT “?PN2” How many lines in Learnt Program 2? INPUT N N = number of lines in Learnt Program. OUTPUT “*P1”...
[Chapter 12] SYNCHRONIZER GPIB: compatible with IEEE488 (1978) Connection: differential, BNC Fully programmable Talker/ Listener Switch selectable Talk only Impedance, Hi or Lo to ground: >200kΩ Maximum data rate: 1000bytes/s <100pF Fuctions implemented: Maximum input SH1, AH1, T5, TE0, LE0, SR1, RL1, PP2, Hi to ground: ±350V peak DC1, C0, DT0...
Page 139
[Index] A.C. mains ............2.4 Facilities ..............1.4 Accessories ............2.2 Feet ..............2.10 Action Keys ..........4.5, 5.13 Floating-point format .......... 8.15 Analyzer ............1.3, 5.4 Freezing the generator output ........ 5.3 Analyzer input ............6.2 Frequency range of sweep ........5.6 ASCII output ..........8.14, 7.3 Front brackets ............
Page 141
[Index] Telescopic slide mounting kit ....2.9, 2.10 Test facility ..........5.17 Tilt bar ............2.10 Top cover removal ........2.7 Varying the set-up parameters ..3.5, 5.14, 11.19 Ventilation ............2.9 Vernier ............5.14 Viewing the History File ......5.14 Ind.3 1253 Op Man_DA...
Page 144
E-mail for customer support issues support@solartronanalytical.com Web: http://www.solartronanalytical.com For details of our agents in other countries, please contact our Farnborough, UK, office. Solartron pursues a policy of continuous development and product improvement. The specification in this document may therefore be changed without notice.
