Summary of Contents for ELLWEE EGC 201801 Series

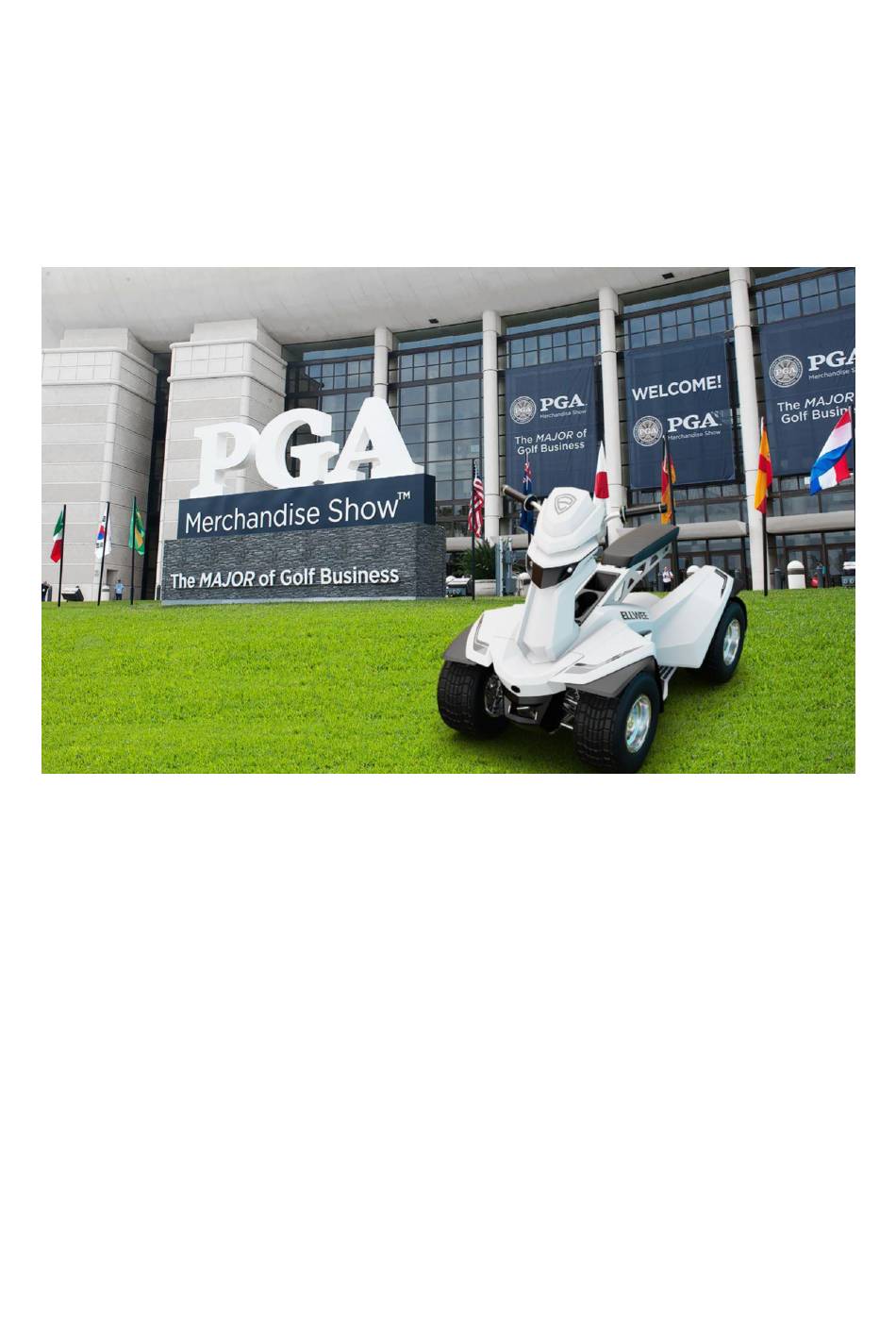

- Page 1 ELLWEE MANUAL ELLWEE SINGLE SEATED ELECTRIC GOLF VEHICLE...
-
Page 2: Table Of Contents
CONTROLS & INDICATORS ......................12 INTRODUCTION ............................16 3.1. IMPORTANT INSTRUCTIONS BEFORE USE OF THE VEHICLE FOR THE FIRST TIME ....16 3.2. SAFE OPERATION OF THE ELLWEE ....................16 3.3. DRIVING INSTRUCTIONS ........................17 3.3.1 STARTING THE VEHICLE ......................17 3.3.2... - Page 3 GENERAL MAINTENANCE .......................... 19 6.1. VEHICLE CLEANING AND CARE ....................... 20 6.2. LIGHT REPLACEMENT (OPTIONAL) ....................20 6.3. WHEEL REPLACEMENT ........................20 ONE-YEAR LIMITED MANUFACTURER WARRANTY ................20 THE MANUFACTURER’S DECLARATION OF CONFIRMITY ..............21 8.1. MANUFACTURER AND DECLARATION .................... 22 8.2.
-
Page 4: Safety Instructions
Accessories and spare parts not approved by us could lead to personal injury and/or damage to the machine and reduce the reliability. For safety reasons, use only ELLWEE recommended accessories and original spare parts. These accessories and parts are made especially for the machine and carry our stamp of approval with regard to safety. -
Page 5: Warning
1.1.2 WARNING PLACED IN FRONT OF SADDLE. 1.1.3 DANGER PLACED NEAR ENGINE ECU, BEHIND THE PLASTIC EXTERIOR. -
Page 6: Charging
PLACED NEXT TO THE CHARGE PORT. 1.2. SAFETY IN USE The ELLWEE electric golf cart is constructed, built and tuned to allow a safe ride on the vehicle. Keep in mind the following precautions when operating the vehicle. Always: Turn the vehicle off (key and main switch) and remove the key, when you leave the vehicle. -
Page 7: Safety In Maintenance
1.3. SAFETY IN MAINTENANCE Always: Replace damaged or missing safety decals. Service the vehicle according to the periodic service schedule in this manual. Ensure that qualified personnel do all repairs. Follow the manufacturer’s maintenance procedures. Use insulated tools within the battery area to prevent sparks or battery explosion. Use specified replacement parts.do not use replacement parts of less quality or parts that do not fit 100%. -
Page 8: General Specifications
2.1. IDENTIFICATION When you contact ELLWEE (manufacturer or retailer), please have all the information on your vehicle at hand. You will find the details on the product identification plaque on the vehicle, which displays the following details: Manufacturer's name and address Ce marking Mfg. -
Page 9: Technical Specifications
2.2. TECHNICAL SPECIFICATIONS Product name: ELLWEE Model: EGC 201801-xxx all-terrain vehicle (atv) Type: Electric Year: 2019 Regulatory classification: golf cart 2.2.1 DIMENSION AND WEIGHT Dry weight (with battery): 150kg / 330lb Total weight (dry weight + Max load): 320kg (705lb) -
Page 10: Vehicle Power And Transmission
2.2.2 VEHICLE POWER AND TRANSMISSION Type: Electric Motor: 48V bldc motor, solid copper windings. Motor effect: 1500 W Drive: Rear wheel drive Battery: Lithium-ion, 48V 45Ah or 48V 63Ah Range: 65 km@18 km/h (11 mph) (with 48V 63Ah on flat asphalt and driver weight 88kg) Battery charger: EY-AD900CH48 Charging time:... -
Page 11: Body, Chassi, Wheels & Brakes
DESCRIPTION AND IDENTIFICATION OF THE PRODUCT The ELLWEE is an electric four-wheeled multi-purpose vehicle the current model is an all- terrain vehicle (atv) intended for off-road use on domains specifically designated and delimited, i.e. golf courses, the type of vehicle is an electric golf cart and is intended for use on golf courses it is not approved for use on public roads. -
Page 12: Reference To The Harmonised Standards Used
The ELLWEE conforms to the European standard en 15997-2011 "all terrain vehicles (atvs - quads) - safety requirements and test methods" published by cen, the European committee for standardization, in so far as the standard en 15997-2011 refers to combustion engines, it is not applicable to the ELLWEE which is only equipped with an electric engine. - Page 13 • Forward/reverse switch • Throttle • Brake handles (with parking brake) • Horn • Epb electric park brake • Battery indicator • Steering handle • Charger receptacle • Battery compartment with connectors • Double usb port in top-box DRIVE/PARK SWITCH FORWARD/REVERSE SWITCH...
- Page 14 KEY SWITCH IGNITION USB PORT BATTERY INDICATOR...
- Page 15 CHARGER RECEPTACLE MAIN SWITCH HORN THROTTLE BRAKE HANDLE REAR BRAKES BRAKE HANDLE FRONT BRAKES...
-
Page 16: Introduction
Check that brakes are functioning 3.2. SAFE OPERATION OF THE ELLWEE The ELLWEE is an excellent vehicle, provided that the driver respects the following guidelines for a safe operation: • Do not drive while under the influence of alcohol, drugs, or medications. -
Page 17: Driving Instructions
• Transporting the ELLWEE inside another vehicle or on a trailer is done at one's own risk, seek appropriate advice on how to secure the vehicle properly. The manufacturer and distributor take no responsibility for accidents, Malfunctions or other misfortunes occurring as a result of the owner, rental customer or driver not respecting the guidelines for safe operation of the ELLWEE. -
Page 18: How To Operate The Vehicle While Driving
Use either of the brake handles to reduce speed and stop the vehicle. RECHARGING INSTRUCTIONS Connect the charger cable to the ELLWEE receptacle. Insert the charger cable in the wall socket. Charge the batteries for 4,5 hours after a full day's use or until the lighting on charger device is green. -
Page 19: Operating Instructions
OPERATING INSTRUCTIONS 4.1. INSTRUCTIONS USE -ACCESSORIES AND CUSTOMIZED EQUIPMENT Multi mount back Golf mount kit front and back 5.1. MULTI MOUNT DEVICE (REAR) Always make sure that the multi mount is firmly attached before operating the vehicle. To release the multi mount device/snap fitting: Turn both lever rearward, vehicle direction. -
Page 20: Vehicle Cleaning And Care
DO NOT USE A HIGH-PRESSURE CLEANER. Usage of high-pressure cleaner may result in faulty vehicle. Safety label on vehicle: 6.2. LIGHT REPLACEMENT (OPTIONAL) If one the Led lamps has stopped working, you need to replace the hole lamp. Contact the authorized ELLWEE dealer or a service station. 6.3. WHEEL REPLACEMENT The wheels and/or tires may be replaced by loosening the 4 wheel bolts, removing the rim and exchanging the tire for a new. -
Page 21: The Manufacturer's Declaration Of Confirmity
ELLWEE Swedish electric vehicles ab hereby warrants the materials and function of the product specified in these instructions for use for a period of one year after delivery. All warranty errands are processed by the local representative or ELLWEE. The warranty is valid under the condition that the contents and recommendations of the instructions for use have been followed by the original purchaser, the rental company, the rental customer or any other third party using the product. -
Page 22: Manufacturer And Declaration
Sweden +46(0)520–445 478 Info@ELLWEE.com The manufacturer and authorized representative hereby declare that: Machine: ELLWEE electric four-wheeled multi-purpose vehicle type: Electric golf cart Serial number: egc201801-xxx Is intended for use on golf courses and terrain, for use with custom-made accessories E.g. holder for golf bags, roof, trailer, cargo box, cooler, etc., covered by directive... -
Page 23: Authorized Representative Usa
Only authorized service personnel should remove the cable connectors from the battery terminals. • Do not attempt to charge batteries in any other way than with the supplied original charging cable attached to the charging connector on the ELLWEE. 9.2. INSTRUCTIONS BATTERIES (PARTSMART SUPERPOWER) •... -
Page 24: Specifications Batteries (Partsmart Superpower)
ELLWEE and allow the electric system to cool down. PROLONGED STORAGE In case the vehicle will not be used during a prolonged time, you may ask an authorized ELLWEE service company to disconnect the battery store in a location with ambient temperature. -
Page 25: Battery Disposal
ELLWEE service company can help you. BATTERY REMOVAL AND INSTALLATION Do not attempt to disconnect or repair the batteries, contact an authorized ELLWEE service company instead. BATTERY CHARGER •... -
Page 26: Service And Maintenance
SERVICE AND MAINTENANCE Only use original ELLWEE spare parts for repairing the vehicle, all use of unlicensed parts voids the warranty immediately. Consult an authorized service and maintenance partner for proper maintenance of the ELLWEE routine inspection and maintenance of the ELLWEE should be done at the following intervals: •... -
Page 27: Engine Maintenance/Oil Change
If you hear a mischievous sound from the engine stop driving immediately, check the oil, if low, fill it up after refill, do a test drive to see if sound has disappeared, if not, call a local ELLWEE service center. ELLWEE.com/support... -
Page 28: Annual Service Schedule
11.4 TRANSPORTING THE VEHICLE General advice on transporting the ELLWEE: • Transporting the ELLWEE inside another vehicle or on a trailer is done at one's own risk. • Seek appropriate advice on how to secure the vehicle properly. • The manufacturer takes no responsibility for such transport in the event of an accident or other misfortune. -
Page 29: Troubleshooting
• If the ELLWEE is heavily loaded and/or used for a long consecutive time and/or at high speeds, the electric engine and the batteries may be strained, park the ELLWEE and allow the electric system to cool down.
