Gulf Coast Data Concepts X16-1C Manual

Usb accelerometer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1
Features
• 3-axis accelerometer
• Single gain mode set to +/-16g
• 15-bit resolution
• User selectable sample rate of 12, 25,
50, 100, and 200 Hertz
• User selectable deadband setting
• Accurate time stamped data using Real
Time Clock (RTC)
• Convenient on/off button
• Data recorded to a removable microSD
card (2GB included)
• Easily readable comma separated text
data files
• Data transfer compatible with Windows
or Linux via Universal Serial Bus
(USB) interface (no special software)
• System appears as USB Mass Storage
Device to Windows and Linux OS's.
• Standard replaceable "AA" type battery
• LED indicator lights for system status
• Weighs 2oz (55g) with alkaline battery
January 2012 Rev New

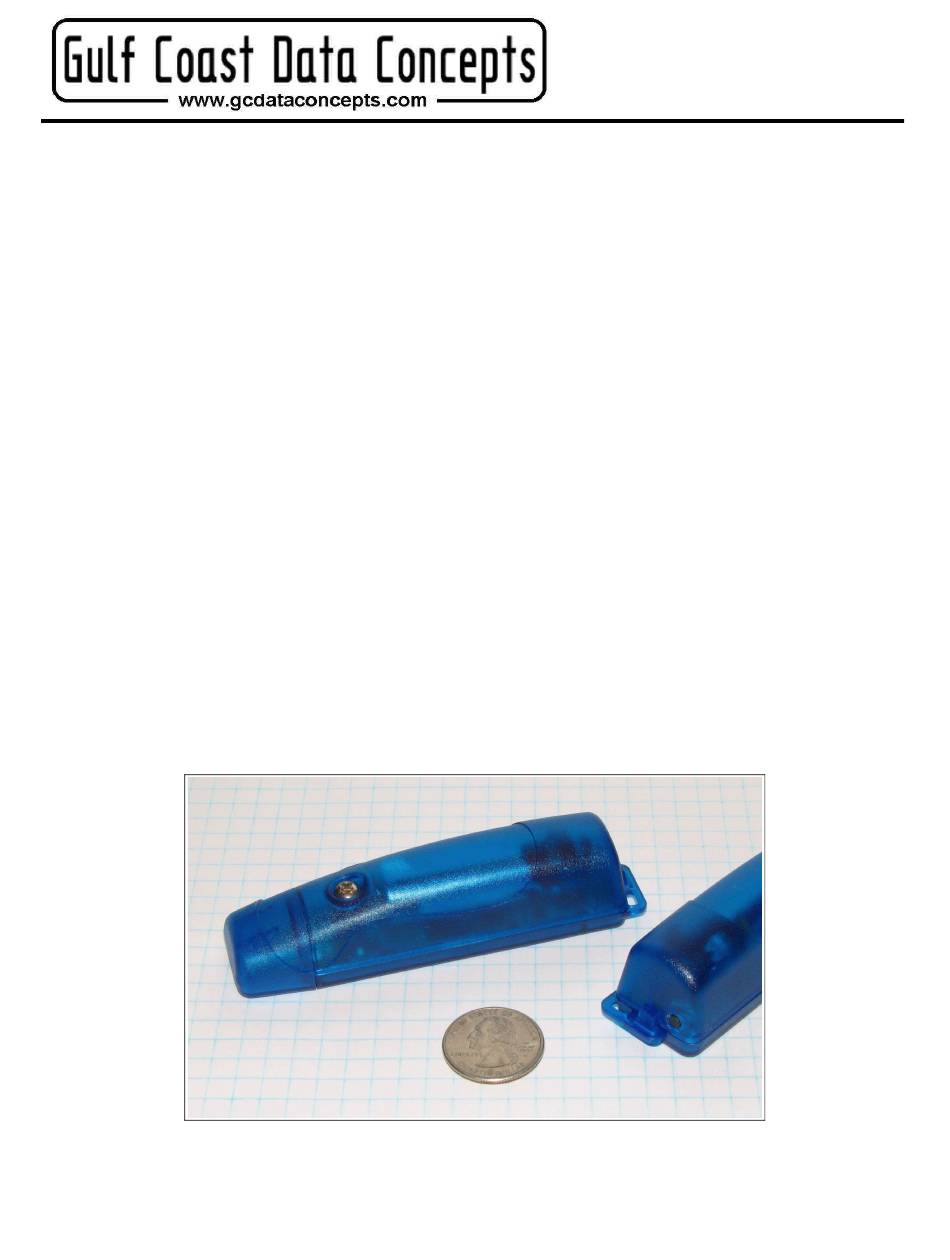

Figure 1: USB Accelerometer X16-1C
www.gcdataconcepts.com
USB Accelerometer
2
Applications
The X16-1C is applicable to:
• Continuous time stamped shock and
motion monitoring of critical freight.
• Monitoring human motor activity, or
actigraphy, such as exercise intensity or
sleeping disorders.
• Automotive performance monitoring
• Educational purposes
3
Description
The USB Accelerometer X16-1C uses a low
noise digital accelerometer sensor, precise time
stamped data logging, microSD memory
storage, real-time data access and USB
connectivity. Acceleration is collected in X, Y,
and Z axes and stored at a user selectable rate
of up to 200hz. When connected via the USB
to a personal computer, the X16-1C appears as
a standard mass storage device containing the
comma delimited data files and user setup files.
The commercial standard "AA" battery
provides extended life operation suitable to
long term data acquisition applications.
Model X16-1C
1 of 14
