Net

Communication system

Wildeboer-Net

User Manual 7.1 (2019-04) 1

The German original version of this document shall prevail

Table of Contents

Need help?

Do you have a question about the BS2-MO Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Wildeboer BS2-MO Series

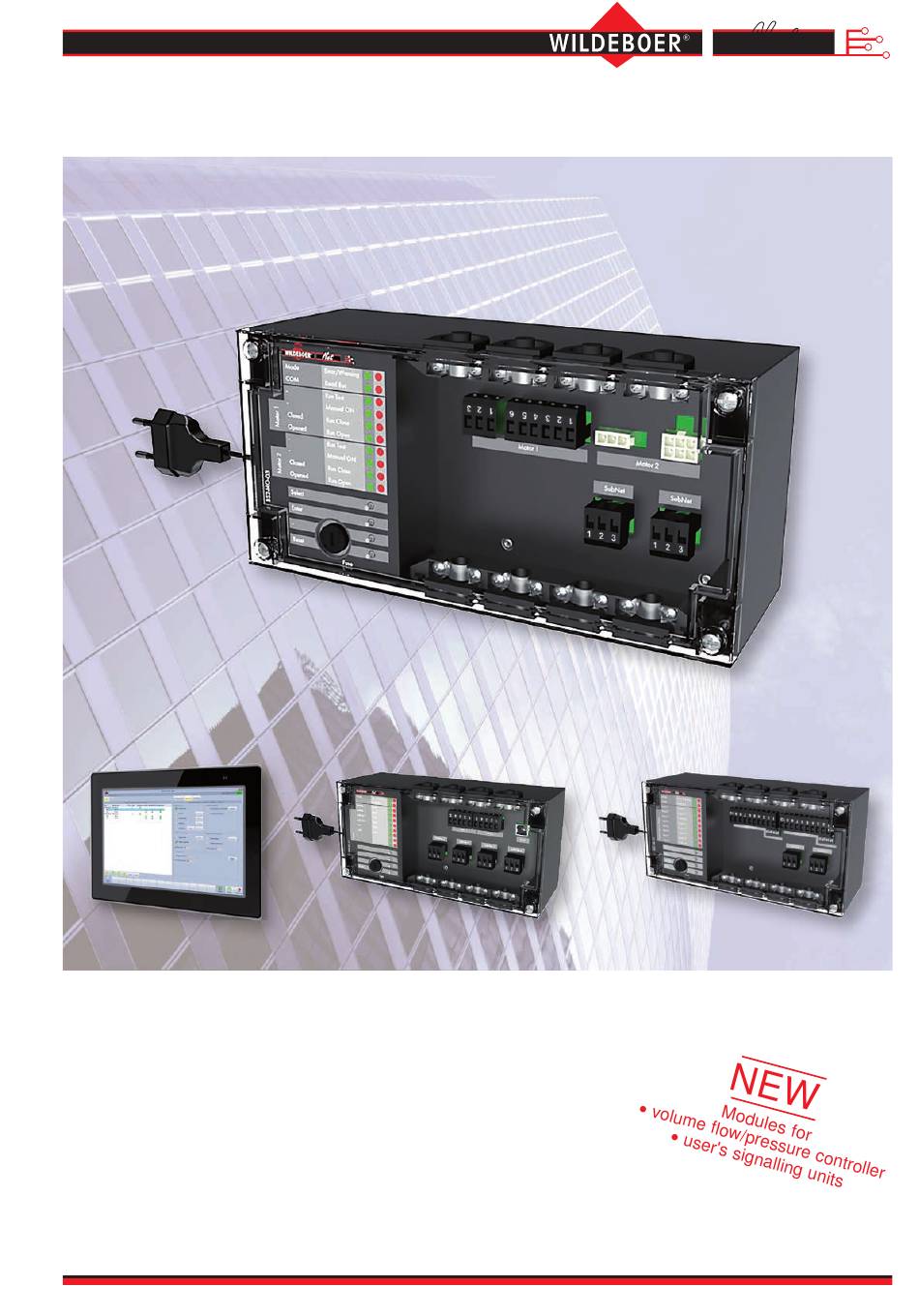

Page 1 Communication system Wildeboer-Net User Manual 7.1 (2019-04) 1 The German original version of this document shall prevail...
Page 2 Wildeboer-Net Control-related demands for ventilation and air conditioning systems Prevention of the spread of fire according to MBO According to § 41 of the “Musterbauordnung” (German model building code), ventilation ducts must only bypass enclosing components for which there is a stipulated fire resistance, if the spread of fire is not to be feared for a sufficiently long period, or if measures have been taken to prevent it.
Page 3: Product Description
Wildeboer-Net Product description The Wildeboer-Net is a system for meeting the control requirements for energy efficiency, fire protection and oper- ational reliability and safety of a ventilation and air conditioning system. High-performance topology and convenience values guarantee the best possible effectivity and synergy at all stages of engineering and operation.
Page 4: System Configuration
Wildeboer-Net System configuration Alternatively: On-site PC Gateways OPC UA server Central operating unit ⇒ see pages 22 and 23 ⇒ see page 24 ⇒ see page 25 BACnet/ BACnet/ BACnet/ Modbus, Modbus, Modbus, OPC-DA OPC-DA, OPC-DA, Cable length up to 100m...
Page 5 • Up to 32 field modules can be connected per subnet. They are detected and addressed automatically. • A total of up to 32 subnet controllers can be included in a single Wildeboer-Net. The subnet controllers contain the 2-way switches required for connection.
Page 6: Product Overview
Wildeboer-Net Product overview Management level WiNet-SW-01 Wildeboer-Net software for installation on the user's PC. Included and pre-in- stalled in the scope of delivery of the central operating unit. ⇒ see page 24 WiNet-ZB-01 central operating unit with pre-installed operating system and Wildeboer-Net software, ready for immediate use.
Page 7 An essential step when commissioning a system is the proper documentation and inspection of the orderly connec- tion of field devices to the field modules. In Wildeboer-Net a "1-to-1 test" can be carried out using pinging with the Wildeboer-Net software for fire dampers for this purpose.
Page 8: Comment Function
Use of the comment function for data point definitions for gateways ⇒ see page 22 Data point definition on Wildeboer-Net, as on a system connected by a gateway, always consists of an address in conjunction with additional metadata (structured data, information on the characteristics of other items of data included).
Page 9 Wildeboer-Net Functions (2) Fan enabling The fan enabling function can be used to cause a fan to be shut off automatically. The enabling signal for a fan can be deactivated via an output of the I/O module as soon as an OPEN limit switch on a group of fire dampers is no longer active.
Page 10 Wildeboer-Net Functions (3) Export User Manual 7.1 (2019-04) 10 Subject to change...
Page 11 The mechanism is valid for non-scheduled and scheduled manually started functional checks. The fan has to be shut off and switched on, and the functional checks have to be started manually using the Wildeboer-Net software. The mechanism is not effective for functional checks which are started locally using the motor modules directly.
Page 12 Wildeboer-Net software. Release groups are parametrised by the Wildeboer-Net software and transferred to the field modules in the form of release group matrices. In the process, the field devices connected to the field modules can always be included as devices in one or multiple release groups.
Page 13: Sequence Control
Functions (6) Sequence control ⇒ see page 2 (EnEV) The Wildeboer-Net software is used to implement the most frequent control application cases using assistants. An example of this is the fan enabling function The results of these assistants are automatically generated (⇒...
Page 14: Calendar Control
Wildeboer-Net Functions (7) Calendar control ⇒ see page 2 (EnEV) The calendar control makes it possible to automatically carry out actions specific to a product at defined points in time or at fixed intervals. For example, motor modules or the FKKUE-03 control unit for FK90 fire damper for commercial kitchens can be used to close the connected fire and smoke protection dampers at the end of operation and open them at the start of service (VdS directive 2038).
Page 15 Functions (8) Graphic analysis The Wildeboer-Net software also provides graphic analyses which allow you to detect trends simply. They can be used, for example, to display results of functional checks clearly so that the required maintenance measures can be easily identified and arranged in good time.
Page 16 It regulates the exchange of the operating data in its subnets with the higher management level via Ethernet, for example, with the Wildeboer-Net software or via a gateway with higher-level building control systems. During commissioning, the field modules connected to the subnets are detected and addressed automatically.
Page 17: Interface Module
⇒ see page 2 (EnEV, MBO) The volume flow and pressure controller module facilitates connection of up to four electronic volume flow and/or pressure controllers (manufacturer WILDEBOER) using spring terminals. ⇒ see table 1 The module is used to optimise the energy efficiency of a ventilation and air conditioning system. For this purpose, the parametrisable calendar control can be used to set the supply air and exhaust air volume flow rates of connected con- trollers with timer control to suit the building usage.
Page 18 • BS2-MO-03 for AMP connector of a fire damper and with plug-in screw terminals for the second fire damper or smoke protection damper. All the benefits of Wildeboer-Net can also be applied for the FK90 fire damper for commercial kitchens, in the same way as the motor modules. For this purpose, the...
Page 19 Wildeboer-Net Products (4) BS2-MO-02 Connection of fire dampers and/or smoke protection dampers to connection boxes on-site cables Motor connect- Motor connecting line 8-wire 0.75 mm², up to 100 m ing line approx. 0.75 m approx. 0.75 m Connection box AB-01 Connection box AB-01 for fire dampers with spring return actuator 24 V DC •...
Page 20 BS2-IO-01 I/O module The I/O module facilitates connection of external sensors and actuators to Wildeboer-Net using eight galvanically isolated inputs and eight galvanically isolated outputs. The module can be used for sequence controls - for example, to shut off fans - release groups and calendar controls.
Page 21 Products (6) BS2-BZ-01 FACP module The FACP module facilitates connection of on-site signalling units to Wildeboer-Net using four inputs for floating contacts and two floating outputs. The module monitors cables connected to the inputs for faults. It can be used for sequence controls, release group controls and calendar controls.
Page 22 • Housing 65 mm x B x 100 mm (L x B x H) B = 31 mm for WiNet-GW-01, -02 • Development and automatic generation of the EDE file required for BACnet using the Wildeboer-Net software. B = 48 mm for WiNet-GW-03, -04, -05, -06 ⇒ see page 8 Protection class III, protection rating IP20 •...
Page 23 Information is exchanged between devices with different communication protocols via data points. A data point, for example, is the position indicator “fire damper (BSK) opened”. If a data point of the Wildeboer-Net system is not only ported to one other protocol via the gateway, but to several protocols, more data points are required accordingly.
Page 24 The WiNet-OPC-01 OPC-UA software is used to query status data from the field modules of Wildeboer-Net. In addi- tion, this can be used to operate field modules, i.e. fire dampers can be opened and closed. Functional tests can be started and faults and alarms can be reset.
Page 25 IP65 switch cabinet front panel. Windows 10 Enterprise 2016 LTSB and the Wildeboer-Net software are pre-installed. • The display is resistant to shock and vibration, thermally stable and compliant with EMC standards.
Page 26: Order Data
Wildeboer-Net Order data Management level Wildeboer-Net software WiNet-SW-01 ⇒ see page 24 Central operating unit with pre-installed Wildeboer-Net software WiNet-ZB-01 ⇒ see page 25 Gateway for BACnet/Modbus + OPC Server DA 2.0 with 200 Data points WiNet-GW-01 Gateway for BACnet/Modbus + OPC Server DA 2.0...
Page 27: Specification Text
Specification text (1) Communication system for control and monitoring of fire dampers and smoke protection dampers, and electronic volume flow and pressure controllers (manufacturer: Wildeboer) for the ventilation and air conditioning system. Operation, visualisation and parametrisation of all functions is performed from a cen- tral point using ready-to-use software.
Page 28 24 V DC voltage. Alternatively, an on-site 24 V DC voltage can be connected via the mod- ule for the sensors and actuators. Accordingly, they must consist of: Wildeboer-Net software for installation on the user's PC as user interface for visualisation of the operating and diag- nostics data collected in the field. For parametrisation and control of connected modules.
Page 29 Wildeboer-Net Specification text (3) Gateway for the implementation of Wildeboer-Net on BACnet/ IP, Modbus/serial, Modbus/TCP or OPC server DA 2.0. Up to 200 data points are developed and an EDE file is generated by the Wildeboer-Net software..pc. of WiNet-GW-01 deliver: ..
Page 30 Volume flow and pressure controller module for connection of up to four electronic volume flow and/or pressure control- lers (manufacturer WILDEBOER). 24 V DC voltage supply for controllers via integrated power unit. Communication between the module and controllers via RS485 or MP-Bus. Connection of the controllers using spring terminals.
Page 31 Wildeboer-Net Specification text (5) Manufacturer: WILDEBOER I/O module with eight galvanically isolated inputs and eight outputs for connection of external sensors and actuators using plug-in screw terminals. Use for connections, transmitting alarm notifications, switching of fans etc. Mains connection 230 V AC with standard Europlug and 1.5 m connecting line.
Page 32 Telephone: +49 (0)7392 - 9692 - 0 Fax: +49 (0)4951 - 950 - 27299 E-mail: info@ulm.wildeboer.de TAKE ADVANTAGE OF OUR STRENGTHS! COMPONENTS FOR VENTILATION + AIR CONDITIONING air distribution fire protection noise protection building control systems © 2014...2019 WILDEBOER BAUTEILE GMBH D26826 WEENER...
