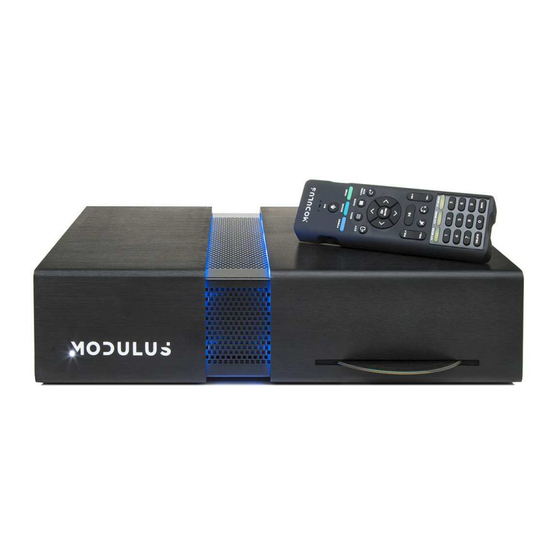

Summary of Contents for Modulus M1

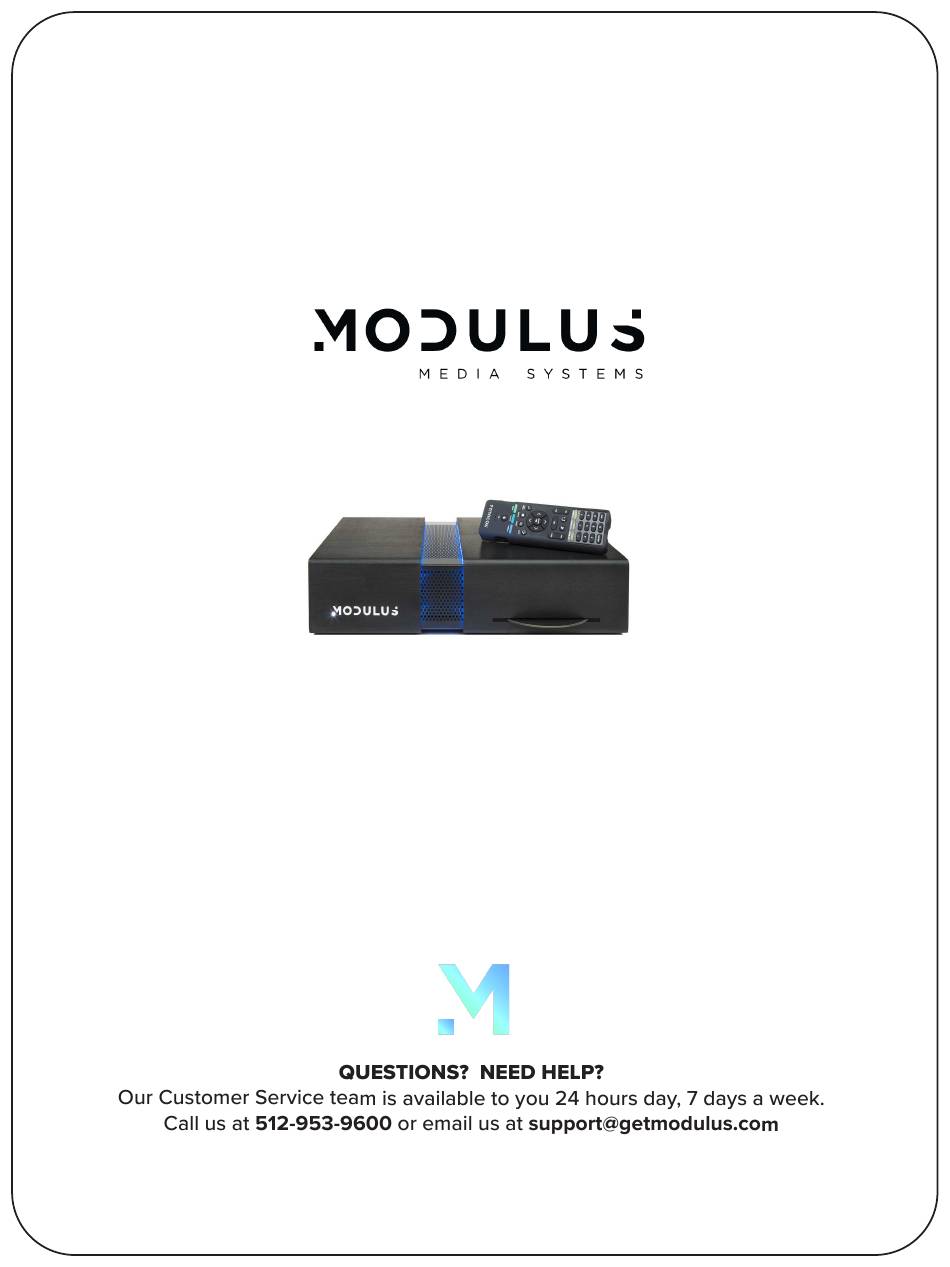

- Page 1 USER SET-UP & INSTALLATION GUIDE Fall 2018 Copyright 2018, MODULUS MEDIA SYSTEMS INC.
- Page 2 LED at the top of the remote control unit illuminates indicating power on. Plug the included USB Dongle into one STEP 2: of the rear USB ports on the M1 unit (see Fig. 2). Use any of four USB ports to connect the Dongle FIG 2:...
- Page 3 PLEASE NOTE: If the M1 is being rack mounted, an extension cable will need to be attached to the USB Dongle to ensure it is located outside the metal rack mount enclosure so it can properly receive the RF signals from the M1 remote.
- Page 4 The M1 rear panel (above) shows all feasible connections that can/could be made to the unit. Each install will be different so it is essential that you verify that all the cables for your installation can properly connect to the M1 where the unit will be located.
- Page 5 FIG 6: The initial setup of your STEP 5: Modulus Media System is complete and after the M1 reboots, you should see the Main Home screen on your display (Figure 7). Your system is now ready to deliver a world-class media experience!
