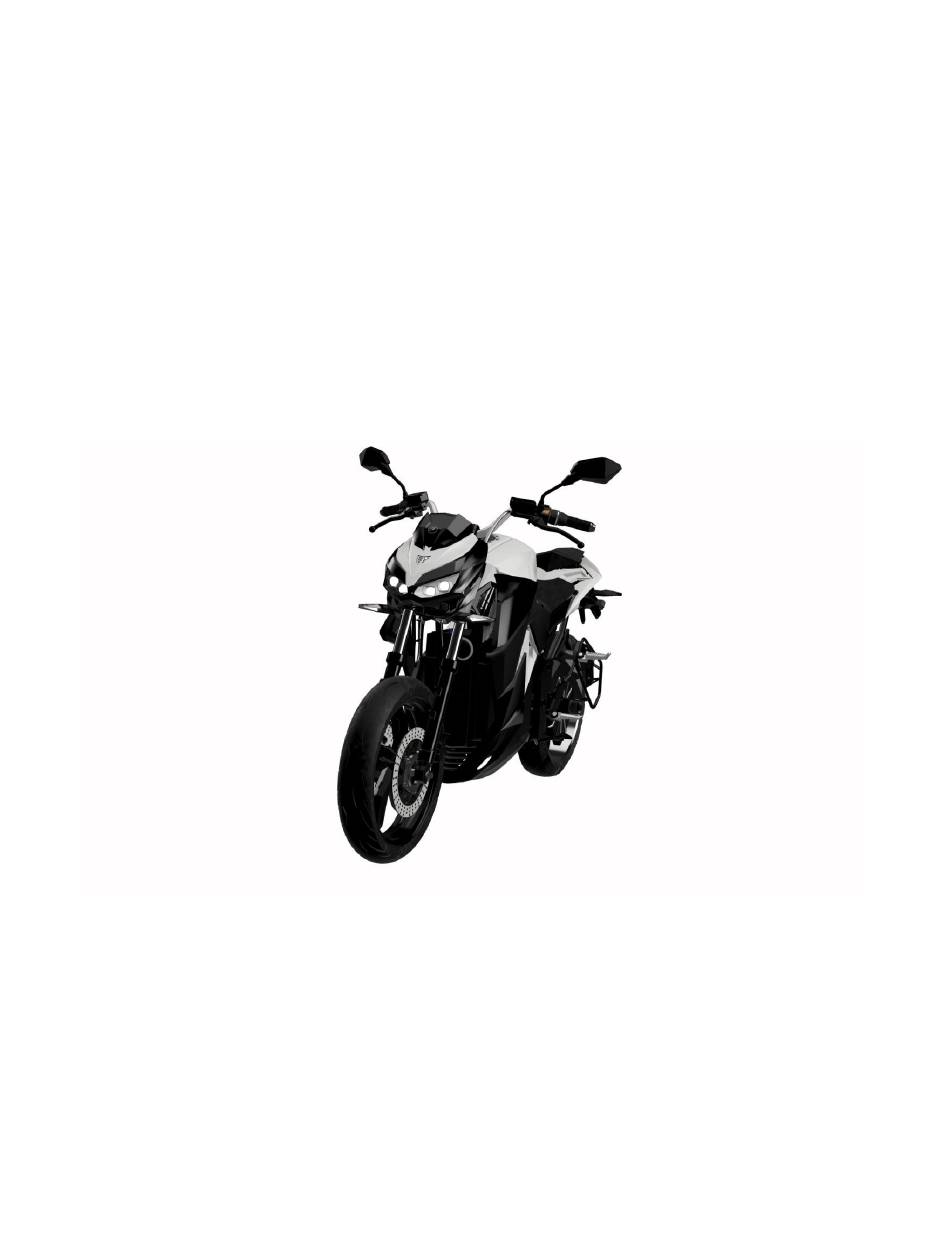

Page 1 Prana Motorcycles Grand User Manual...
Page 2 In Drive and Sports mode, it delivers quite a bit of power and acceleration. Your Prana has great capabilities and can grow with the skills of the rider to very high levels of performance, but it is important to start slow and speed up as you improve.
Page 3: Table Of Contents
Table of Contents INTRODUCTION VEHICLE IDENTIFICATION NUMBER (VIN) & MOTOR NO SAFETY INFORMATION KEY FUNCTIONS GOOD RIDING GUIDELINES VEHICLE OVERVIEW SPECIFICATIONS – PRANA BEFORE THE FIRST RIDE CHARGING SELF HEALING BRAKES TYRES FRONT WHEEL REMOVAL AND INSTALLATION REAR WHEEL REMOVAL AND INSTALLATION...
Page 4: Introduction
PLEASE READ THIS SAFETY INSTRUCTION MANUAL PRIOR TO OPERATION ! Understanding the operation and safety instruction helps to have a smooth experience with Prana. It is important to fully understand the features of the motorcycle. This manual contains Important information that every owner must fully understand.
Page 5: Safety Information
This motorcycle is for personal use only and is not intended for commercial purposes. The use of this Prana for commercial purposes, such as rentals, will void all warranties. Maintain proper posture while riding. The posture of the rider is important for proper control of the motorcycle.
Page 6: Key Functions
ENGINE ON AS SOON AS POWER IS ON: Prana’s engine is ON as soon as the key is turned ON. Be aware that your motorcycle is still ON when stopped and while at an “idle”. Accidentally twisting the throttle can quickly accelerate the vehicle &...
Page 7: Vehicle Overview
Prana is designed to be an elite vehicle for people who are demanding better engineering from unwanted vibration, harmful emission. The Prana is designed to be used by youths and adults who love faster but cleaner personal commute solution. Powerful PRANA opens the door to a whole new riding...
Page 8 INSTRUMENT CLUSTER : MOTORCYCLE CONTROLS:...
Page 9: Specifications - Prana
1. Check the tire pressure of both tires and confirm that they are properly inflated. The optimal tire pressure for the Prana is 28-33 PSI for general use. 2. Compress each brake lever. The lever should not compress completely to the handlebar. Each individual brake should hold the bike securely when you push the motorcycle against the brake.
Page 10: Charging
● Automatic Thermal & Power Management in the Energy system. MAINTENANCE: Prana requires significantly less maintenance compared to traditional gas bikes since they have very few moving parts, no fuel burning engine, and no exhaust. The brake fluids and disc need normal routine maintenance.
Page 11 Cleaning is extremely important. This will ensure your PRANA to serve you for a long time. In the long run, it will save you money and a lot of time waiting for the PRANA to be repaired. You should clean your PRANA weekly.
Page 12: Brakes
TO DISASSEMBLE OR ADJUST ANY COMPONENT Doing so may cause extensive damage to these components, will void your warranty and may result in danger to persons and/ or property. If you cannot resolve any problem using this owner’s manual, contact your SVM authorized dealer, or call the SVM Customer Service for assistance. BRAKES FRONT BRAKE &...
Page 13: Tyres
TYRES TYRE PRESSURE : Check the tyre pressure at least once a week, if not more frequently. Insufficient air pressure in the tyres not only hasten tyre wear, but also seriously affects the stability of the vehicle. Under inflated tyres make smooth cornering difficult and over inflated tyres decreases the tyre contact with the ground which can lead to skidding and loss of control, Be sure the tyre pressure is within specified limits at all times.
Page 14: Rear Wheel Removal And Installation
REAR WHEEL REMOVAL AND INSTALLATION 1. Turn OFF the miniature circuit breaker (MCB) located under the Pillion rider seat. 2. After switching off MCB, wait for 2-3 minutes, because fully charged capacitor in controller needs time to discharge. Remove the side fairing, seat, tank and then remove Power wire & Hall sensor connection from the Power Controller.
Page 16 CONTROLLER TERMINALS...
Page 17: Battery Use, Care And Maintenance
LONG TERM STORAGE If you do not plan to use your PRANA for an extended period of time (2 months or more), connect the charger cable to power outlet and charge for 4 hrs. This will help to keep the battery fully charged.
Page 18: Riding Instructions & Safety Tips (Novice Riders)
RIDING INSTRUCTIONS & SAFETY TIPS (NOVICE RIDERS) With the bike set up correctly, your SVM PRANA is ready to ride. The novice riders, please follow these tips and instructions. The riders will get the most enjoyment if they feel safe and in control. Do not be tempted to accelerate too quickly.
Page 19: Range At Single Charge
Motor to overheat. MCB Tripped due to So 150 to 160 kg Weight is short circuit or loose wires Prana stopped suddenly suggested (maximum two passengers recommended.) Contact your local SVM Controller, DC-DC converter may authorized service center for be fault.
Page 20 Center in your area, visit our website at www.srivarumotors.com or call +91 6374999217 to speak to a live Customer Service Representative Emergency roadside assistance is standard on all SVM-PRANA for the duration of the warranty period. Contact your authorized SVM bikes dealer for further information.
Page 21 After you have serviced your PRANA, please make sure that the appropriate maintenance record has been completed. 10000 km 20000 km Date: Date: Notes: Notes: Performed by: Performed by: 40000 km 60000 km Date: Date: Notes: Notes: Performed by: Performed by:...
Page 22: Limited Warranty
Prana’s battery, Motor, charger and controller is covered for earlier of 100,000km or 2 years limited. WARNING! The SVM-PRANA is designed to operate at 72 volts only. Use of any battery voltage other than 72 volts will result in component failure. SVM considers modifications and/or changes to Prana’s electrical components to be a material alteration of its products, thereby voiding any warranties and/or guarantees in their entirety.
Page 23 Manufacturing plant address : Srivaru Motors Pvt Ltd, 135/3, B.S Nagar, Near Kumaran Kottam, Trichy main road, Sulur, Coimbatore – 641402. Mail : info@srivarumotors.com...
