HOW TO REMOVE FRONT WHEEL

Need help?

Do you have a question about the FLEX 500 and is the answer not in the manual?

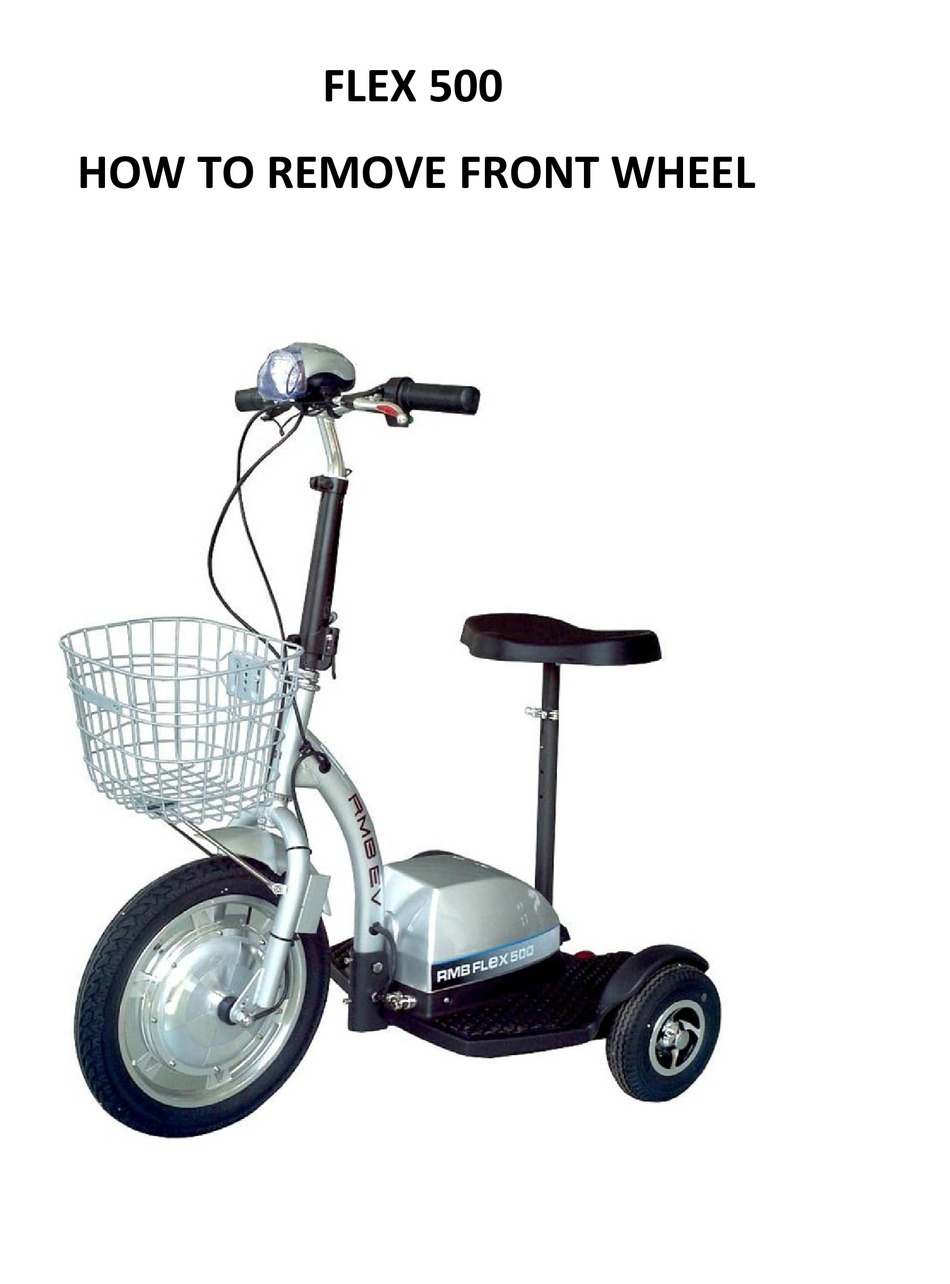

Page 1 FLEX 500 HOW TO REMOVE FRONT WHEEL ...
Page 2 BE SURE POWER IS TURNED OFF. CLIP OFF ZIP TIE TO RELEASE POWER CABLE. THIS WILL ALLOW YOU TO GENTLY PULL DOWN THE WIRING CONNECTORS IN THE JUNCTION BOX. ...
Page 3 GENTLY PULL THE WIRING CONNECTORS OUT OF THE JUNCTION BOX PAYING ATTENTION TO HOW THEY WILL BE REINSERTED. ...
Page 4 UNPLUG THE CONNECTORS. NOW THE WHEEL IS FREE FROM WIRING. ...
Page 5 REMOVE ACORN NUT FROM AXEL. ...
Page 6 NOTE THE SLOT IN THE AXEL AND THE WASHERS ALIGNMENT FOR WIRE TO BE SECURED AT A 90 DEGREE ANGLE. TO THE MOTOR. ...
Page 7 NOW GO TO THE OTHER SIDE WHICH HAS THE BRAKE CABLE AND BRAKE ASSEMBLY TO REMOVE. ...
Page 8 REMOVE THE BRAKE CABLE TENSIONING NUT. THIS WILL FREE THE CABLE FROM THE BRAKE DRUM LEVER. ...
Page 9 SLIDE THE BOOT WITH SPRING OFF OF THE TREADED CABLE. ...
Page 10 PULL CABLE TROUGH MOUNTING HOLE. ...
Page 11 REMOVE ACORN NUT AND LOCK WASHER FROM AXEL. ...
Page 12 REMOVE NUT AND BOLT FROM BRAKE MOUNTING BRACKET FLANGE. ...
Page 13 THE WHEEL IS NOW FREE TO BE REMOVED FROM THE FORK. PLACE A BLOCK OF WOOD UNDER THE SCOOTER TO LIFT THE FRONT WHEEL OFF THE GROUND AND SLIDE THE WHEEL OFF. YOU NOW HAVE ACCES TO THE BRAKES. THE BRAKE ASSEMBLY SIMPLY SLIDES OFF OF THE DRUM. ...
