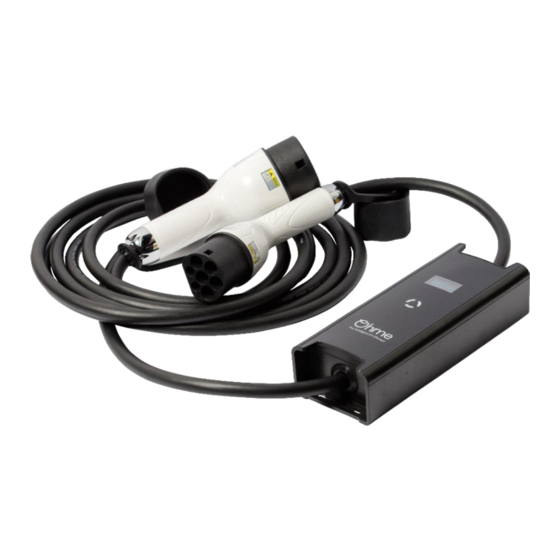

Summary of Contents for Ohme Cable
- Page 1 Ohme Cable Product Manual v1.0...
-
Page 2: Table Of Contents
Contents Safety Precautions ..........................3 Product Specification ........................... 4 Product Description ..........................4 Installation ............................4 Instructions for Use ..........................6 Grid-sympathetic Charging ........................7 Indicator Lights ............................ 7 Troubleshooting ..........................7 Cleaning ............................... 8 Maintenance ............................8 Standards Compliance ......................... 9 Disposal ............................... -
Page 3: Safety Precautions
Do not disconnect the Ohme Cable from the wall socket/power supply when charging. Always disconnect from the vehicle first Handle the Ohme Cable with care. Do not expose any part of the cable to severe forces, impact or sharp objects The Ohme cable is weatherproof –... -
Page 4: Product Specification
Charging cable • Vehicle connector The Ohme Cable is supplied in various connection formats to make installation and use as easy as possible. All Ohme Cables are to be used with single phase electricity supplies (most UK houses are single phase). - Page 5 The Ohme Cable will “talk to” your charge point and make sure that it does not charge above the rating of your unit. It is therefore safe to use a 32 Amp Ohme Cable, for instance, with a 16A charge point.
-
Page 6: Instructions For Use
Instructions for Use Starting a charge session Firstly, connect the Ohme Cable to the power supply socket or the charge point. The Ohme Cable will automatically initialise, check for faults and initialise and connect to the Ohme cloud service. Secondly, connect to the vehicle. The vehicle will begin charging. Once the cable has connected to the Ohme service, a charging profile will be sent to the cable based on your requirements and preferences. -
Page 7: Grid-Sympathetic Charging
Grid-sympathetic Charging The Ohme platform is designed to help reduce power demand in times of stress to the local and regional electricity networks. As the adoption of EVs progresses, these features will become more important to avoid expensive and disruptive upgrades to electricity networks. -
Page 8: Cleaning
0203 375 1586, or send a direct message on Twitter to @OhmeEV. Cleaning The Ohme cable can be cleaned with a soft damp cloth. Avoid the use of cleaning agents and solvents. Maintenance The Ohme Cable is maintenance free. If the cable is defective or damaged, please discontinue usage and contact the Ohme Support Centre for advice. -
Page 9: Standards Compliance
Standards Compliance The Ohme Cable is classed as an IC-CPD (In-Cable Control and Protection Device) as described in IEC62752:2016. The product complies with: • IEC62752:2016 In-cable control and protection device for mode 2 charging of electric road vehicles (IC-CPD) •... -
Page 10: Contact Details
+44 (0) 20 3375 1586 Manufacturer’s Warranty The Ohme Cable is protected by a manufacturer’s warranty for 12 months from the date of purchase or delivery, whichever is later. The warranty covers any defects in materials or workmanship under normal use. During the... -
Page 11: Limitation Of Liability
You may have other legal rights under local laws in addition to the rights under this manufacturer’s warranty. Contact Ohme in the first instance to discuss your options. To initiate a service from Ohme under the manufacturer’s warranty, it is necessary to contact Ohme first to assist in determining the most appropriate solution.
