GANKER EX
User Manual
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GANKER EX and is the answer not in the manual?

Questions and answers

Summary of Contents for GJS Robot GANKER EX

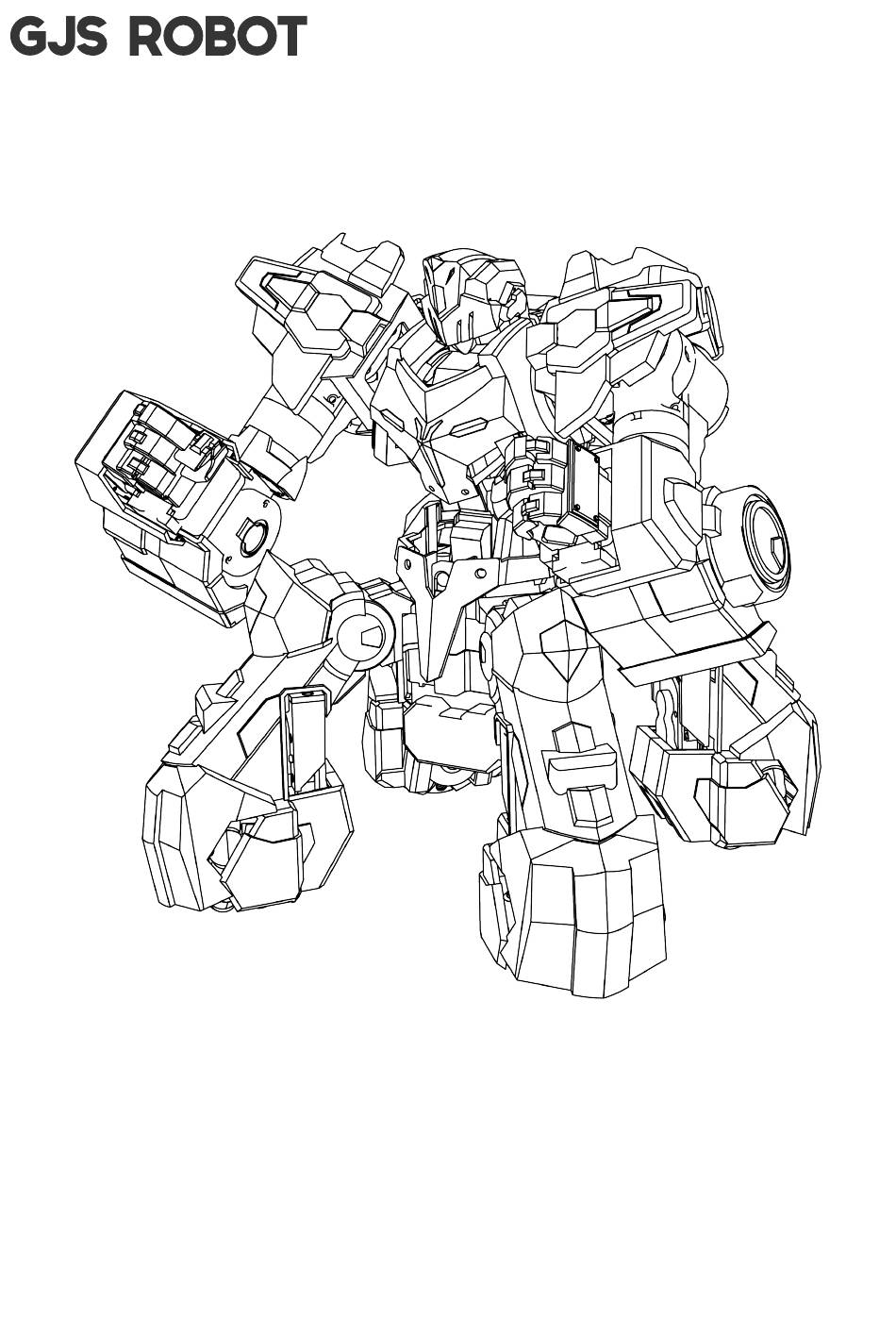

  • Page 1 GANKER EX User Manual V1.0...

  • Page 2: Table Of Contents

    Contents Product Overview About GANKER EX About the Controller Installing the Battery and Recharging Using GANKER EX Preparing the Controller Application Scenarios Preparing the Robot Connection Movement Scoring and Judgment Rules APP Download and Instructions Technical Specifications @Shenzhen GJS Technology Co., Ltd.

  • Page 3: Product Overview

    Product Overview This chapter mainly describes the features and preparations for GANKER EX. @Shenzhen GJS Technology Co., Ltd.

  • Page 4: About Ganker Ex

    About GANKER EX GANKER EX is a new generation battle robot that is equipped with advanced motion systems and is capable of implementing multi-dimensional upper limb motion, omni-directional chassis motion, and precise spatial orientation. The sensitive electronic scoring system is used to implement scoring and determine the winner/loser in battle.

  • Page 5: About The Controller

    About the Controller The controller for GANKER EX is designed with up-to-date wireless control technology and is capable of controlling the robot more stably and efficiently. A high-precision spatial orientation algorithm is used to fully and synchronously map the actions of the controller to the robot.

  • Page 6: Installing The Battery And Recharging

    Installing the Battery and Recharging Installation of machine battery Controller recharge Machine battery recharge @Shenzhen GJS Technology Co., Ltd.

  • Page 7: Using Ganker Ex

    Using GANKER EX This chapter mainly describes the basic operations, application scenarios, and scoring rules of GANKER EX. @Shenzhen GJS Technology Co., Ltd.

  • Page 8: Preparing The Controller

    Preparing the Controller ON/OFF ON: Press and hold the button for about 2 s until the light on the front turns on (1 short beep) OFF: When powered on, press and hold the button for about 2 s to turn the machine off Controller Battery Controller fully charged Controller battery low...
  • Page 9 Steady on: Communicating with the robot Flashing slowly: Robot battery low Flashing quickly in a cyclic manner: Searching for and connecting to the robot Mobile phone connection indicator Steady on: Communicating with the mobile device (GANKER EX APP) @Shenzhen GJS Technology Co., Ltd.

  • Page 10: Application Scenarios

    Application Scenarios Wearable @Shenzhen GJS Technology Co., Ltd.
  • Page 11 Application Scenarios Desktop @Shenzhen GJS Technology Co., Ltd.

  • Page 12: Preparing The Robot

    Preparing the Robot ON/OFF ON: Press and hold the button for about 2 s until the light on the front turns on (1 short beep) OFF: When powered on, press and hold the button for about 2 s to turn the machine off @Shenzhen GJS Technology Co., Ltd.

  • Page 13: Connection

    Connection Initial Connection/Changing the Controller WPS button WPS button On the left of the controller 1. After startup, both ring indicators act as a breathing light. 2. When the breathing light changes to a steady light, press the WPS buttons on the robot and also the joystick controller respectively.

  • Page 14: Movement

    Movement When the controller is successfully connected to the robot, you are now ready to control the robot. Preparation Posture Place your middle fingers through the rings at the front end of the controller, and lightly rest your index fingers on the L/R keys. Lightly rest the palms at the base of the thumbs on the shoulders of the joystick, as shown in the figure, to keep the preparation pose.
  • Page 15 Pushing the cross rocker backwards will make the robot move backwards. Pushing the cross rocker to the left will make the robot move left. @Shenzhen GJS Technology Co., Ltd.
  • Page 16 Pushing the cross rocker to the right will make the robot move right. Anti-clockwise rotation of the body (when the controller is worn) will drive the robot to rotate anti-clockwise. @Shenzhen GJS Technology Co., Ltd.
  • Page 17 Clockwise rotation of the body (when the controller is worn) will drive the robot to rotate clockwise. B key A key R key L key Press and hold the L/R key on the handle to control the anti-clockwise or clockwise rotation of the robot.
  • Page 18 Upper Part Starting from the preparation posture, control the upper part of the joystick to execute humanoid motions to control the upper part of the robot. Key Functions Controls Features Press and hold L + R + A + B for 3 seconds Revive (when the machine dies) Press L + R + A + B...

  • Page 19: Scoring And Judgment Rules

    Scoring and Judgment Rules Head Back Shoulder Shoulder Hand Hand Chest The robot has a total of 7 electronic scoring points on its body. Scoring will be triggered when it receives a hit under a certain amount of force. @Shenzhen GJS Technology Co., Ltd.

  • Page 20: App Download And Instructions

    APP Download and Instructions You can download "GANKER EX APP" from the App Store or an Android app store for free. APP Download and Instructions 1.Connect to GANKER EX via Bluetooth When you see this screen, switch on Bluetooth on your mobile device, and move it closer to the controller’s main control module (the lower square box for the Joystick Controller;...
  • Page 21 2.Home When your mobile device has connected to the controller, the Home screen will display three menus offering more functions. 3.Battle Stats This screen displays real-time health, battery usage, and damage information for each module of your robot. You can also switch to different battle modes here. @Shenzhen GJS Technology Co., Ltd.
  • Page 22 4.Settings This screen allows you to configure some functions and parameters for the APP, robots and its controller. It also allows you to upgrade the firmware of the robot and its controller. For more information about firmware upgrades, see the instructions in the APP. @Shenzhen GJS Technology Co., Ltd.

  • Page 23: Technical Specifications

    Technical Specifications Robot L×W×H (without a case): 236×188×218 mm L×W×H (with a standard case): 251×197×222 mm Weight (including a standard case): 1375 g Number of servos: 9 Number of motors: 4 Materials: aluminum alloy, ABS, and PC Controller Communication: Wi-Fi Operating frequency: 5 GHz Battery capacity: 1500 mAh Rated input: 5V...
  • Page 24 Technology and craftsmanship give rise to happiness. Shenzhen GJS Technology Co., Ltd. WWW.GJSROBOT.COM @Shenzhen GJS Technology Co., Ltd.
