INTERFACE BOARD
1. GENERAL DESCRIPTION
The IB-9012 is designed to be mounted on the Q-SS9012 speaker selector for achieving the simple two-RJ45
port connection with the Q-RM9012 remote microphone. It is also equipped with a 3pin removable terminal for
sending out a line level audio signal to an external mixer/amplifier.
2. BASIC SPECIFICATIONS
2.1. IB-9012

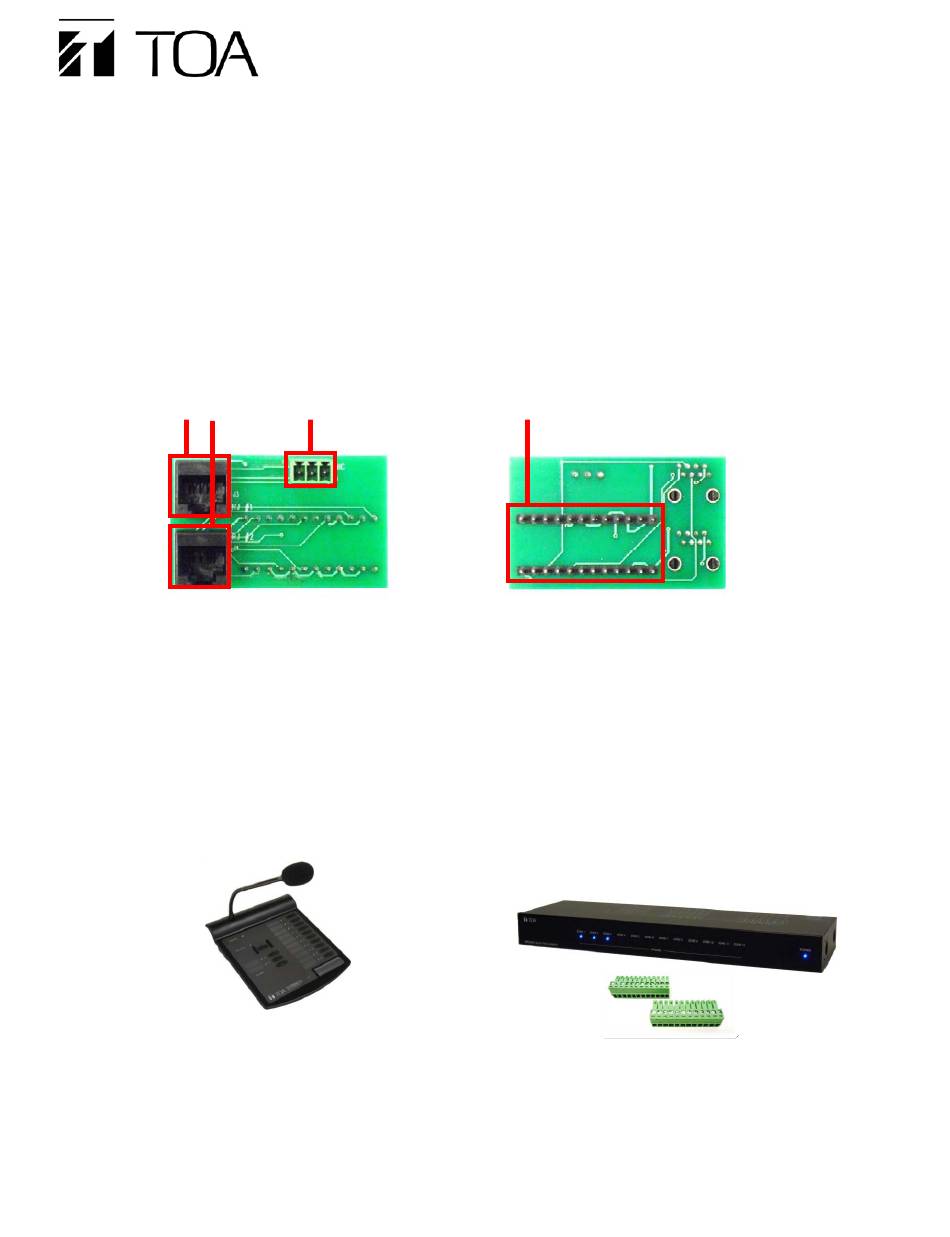

① ②
① RJ45 connector for connecting with the left RJ45 connector of the Q-RM9012.
② RJ45 connector for connecting with the right RJ45 connector of the Q-RM9012.
③ 3pin removable terminal for connecting with the audio input of an external mixer/amplifier.
④ Two 12pins for connecting with the removal terminals supplied with Q-SS9012.
2.1. Related Equipment
Q-RM9012
③
Remote Microphone
TOA Canada Corporation
INSTALLATION MANUAL
④
Q-SS9012
Speaker Selector
IB-9012
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Toa IB-9012
Summary of Contents for Toa IB-9012
- Page 1 IB-9012 1. GENERAL DESCRIPTION The IB-9012 is designed to be mounted on the Q-SS9012 speaker selector for achieving the simple two-RJ45 port connection with the Q-RM9012 remote microphone. It is also equipped with a 3pin removable terminal for sending out a line level audio signal to an external mixer/amplifier.
- Page 2 3. INSTALLATION PROCEDURE Step1. Loosen the terminal screws of the 12pin removable terminal supplied with the Q-SS9012 and attach it onto the lower pins of the IB-9012. Fix the screws with a mini flat head screwdriver. Step2. Attach another 12pin removable terminal onto the upper pins of the IB-9012.
