Summary of Contents for MTI Dust Vac DV-1
- Page 1 User Manual DV-1 & DV-3 Dust Vac™ U.S. & Canada (888) 520-4998 International (801) 875-4998 Strength in patient care. ™ www.mti.net...
- Page 2 THIS PAGE IS INTENTIONALLY BLANK.
-
Page 3: Table Of Contents
T able of Contents APPLICABLE MODEL(S) ........................................................IV REVISION HISTORY TABLE ......................................................IV GENERAL INFORMATION ........................................................1 Purpose of this Manual ......................................................1 Intended Use ............................................................1 Symbols and Warnings......................................................2 Symboles et Avertissements ..................................................2 Safety Instructions ........................................................2 Electrical Requirements .......................................................3 Contraindications ...........................................................3 Transportation and Storage Conditions ............................................3 Disposal of Equipment ......................................................3 EQUIPMENT FEATURES ........................................................ -
Page 4: Applicable Model(S)
User Manual | DV-1 & DV-3 Dust Vac™ APPLICABLE MODEL(S) This manual is for the following part numbers and revisions: PART NUMBER DESCRIPTION EFFECTIVE S/N 1000008 DV-3 Dust Vac Debris Vacuum w/Foot Control, 115V 080728008 - Current 1000019 DV-1 Dust Vac Debris Vacuum, 115V 000222003 - Current REVISION HISTORY TABLE DATE... -
Page 5: General Information
User Manual DV-1 & DV-3 Dust Vac™ GENERAL INFORMATION Purpose of this Manual This manual covers the safety, installation, instructions for use, and maintenance of this equipment. It is intended that it be used by the service professional installing the equipment and by the medical professionals who have been trained to use it. -
Page 6: Symbols And Warnings
User Manual | DV-1 & DV-3 Dust Vac™ Symbols and Warnings Protective earth ground This manual contains Notices, Cautions, and Warnings, Terre électrique de protection which are meant to call attention to particular parts Alternating current or sections of this manual. Since safety is our first Le courant alternatif concern, this manual should be read by all personnel Indicates the presence of a dangerous... -
Page 7: Electrical Requirements
California to cause cancer. For more information go to unacceptable risk. www.P65Warnings.ca.gov and see www.mti.net/faqs for L’équipement doit être relié à une source d’alimentation details on California Proposition 65. appropriée en cas de perte de la source d’alimentation Ce produit peut vous exposer à... -
Page 8: Equipment Features

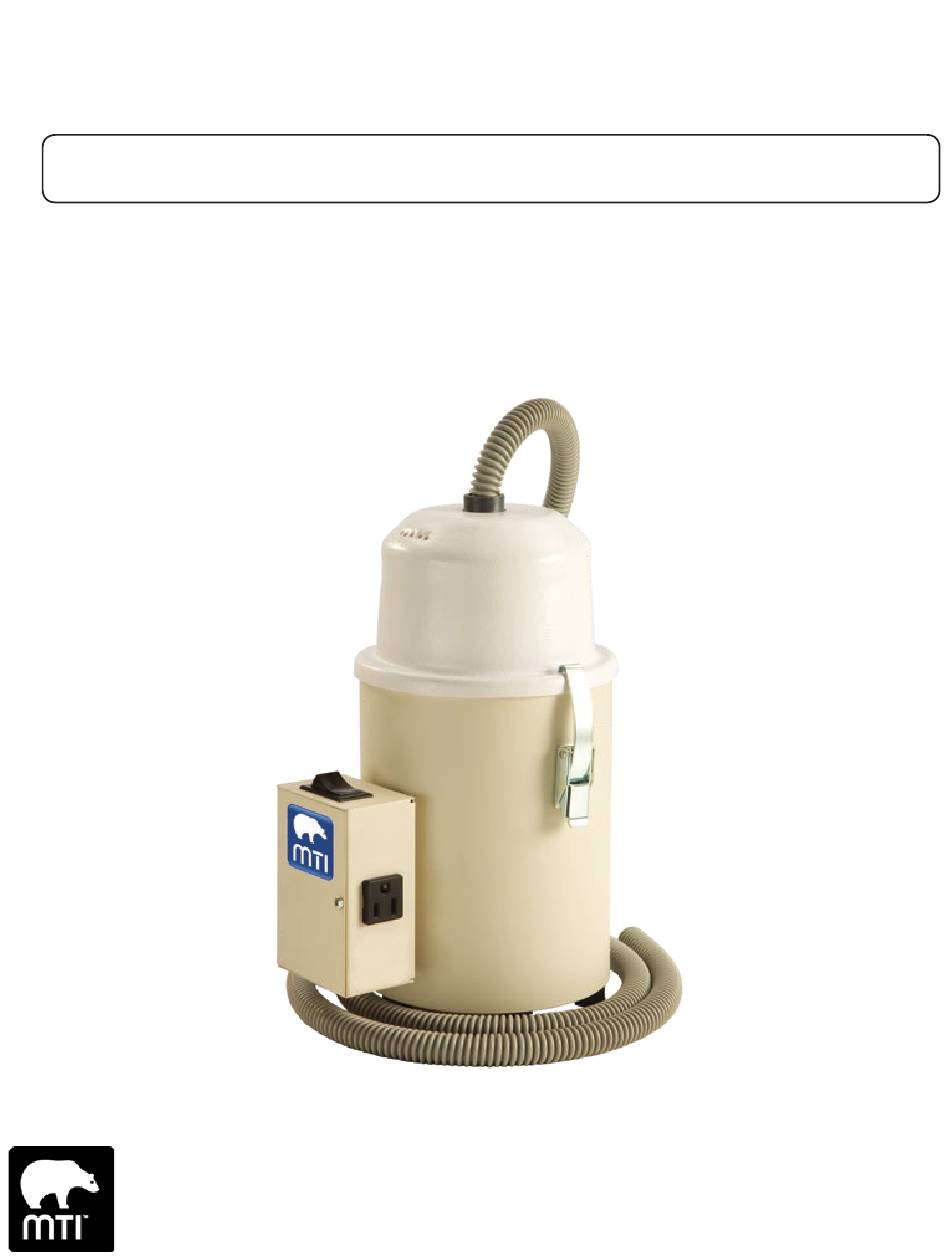

Description of Dust Vacs™ MTI Dust Vacs™ come in two stand alone versions. The DV-1 Dust Vac™ is a vacuum with an auxiliary outlet for connecting a rotary power tool with a toggle switch to turn on/off both the vacuum and rotary tool. The DV-3 Vac™... -
Page 9: Installation
User Manual | DV-1 & DV-3 Dust Vac™ INSTALLATION Option 1 Option 2 .1 Micron Filter NOTICE/AVIS Inspect the shipping boxes for visible damage. Record (25) 10 Micron Filter on bill of lading, photograph, and report any damage to the carrier immediately. Request an inspection by the Charcoal Disc carrier if any concealed damage is noted. - Page 10 NOTICE/AVIS Both types of filters can be ordered in varying quantities from MTI, Inc Les deux types de filtres peuvent être achetés à des quantités variables de MTI, Inc.
-
Page 11: Operation
User Manual | DV-1 & DV-3 Dust Vac™ OPERATION Controls Toggle Switch Foot Pedal (DV-3 Only) Rotary Tool Outlet Toggle Switch Foot Pedal Rotary Tool Outlet Allows a corded rotary tool to The toggle switch turns on the The foot pedal turns on the vacuum. -
Page 12: List Of Accessories
La procédure de La Maîtrise des Énergies Dangereuses (lockout/ déconsignation) § 1910.147 doit être suivie pour désactiver l’équipement, empêchant la libération des énergies dangereuses lors de l’exécution des activités de maintenance et d’entretien. NOTICE/AVIS MTI recommends cleaning the equipment frequently. MTI recommande de nettoyer l’équipement fréquemment. Cleaning and Disinfection Painted Surfaces All painted metal parts have been electrostatically painted, and the paint is baked on for durability. -
Page 13: Calls For Service
Calls for Service authorized repair facility. Except as it may otherwise specifically agree in writing, MTI shall not be liable for transportation or labor Equipment’s model and serial number information are charges for repairs or adjustments or other work done on any of required when calling for service. -
Page 14: Troubleshooting Guide
For more information on this equipment, including circuit diagrams, parts and service manuals, and other descriptions, please contact MTI. Pour plus d’informations sur cet équipement, y compris des schémas de circuits, les manuels de service et pièces, et autres descriptions, s’il vous plaît contacter MTI. SYMPTOM PROBLEM CAUSE... -
Page 15: Specifications
User Manual | DV-1 & DV-3 Dust Vac™ SPECIFICATIONS DESCRIPTION SPECIFICATION Overall Height 13” (33.0 cm) Overall Width 6” (15.2 cm) Overall Depth 8” (20.3 cm) Weight 7 lbs (3.2 kg) Electrical Input/Power Consumption 115VAC/60hz, 9.6 amps... - Page 16 Salt Lake City, Utah, 84104-6572 (800) 924-4655 • (801) 875-4999 • Fax (801) 952-0548 www.mti.net © MTI, Inc. All rights reserved. Strength in patient care. ™ MTI reserves the right to make any product changes without notice. 073166 Rev B...
