Summary of Contents for Sherpa ST-CS4500

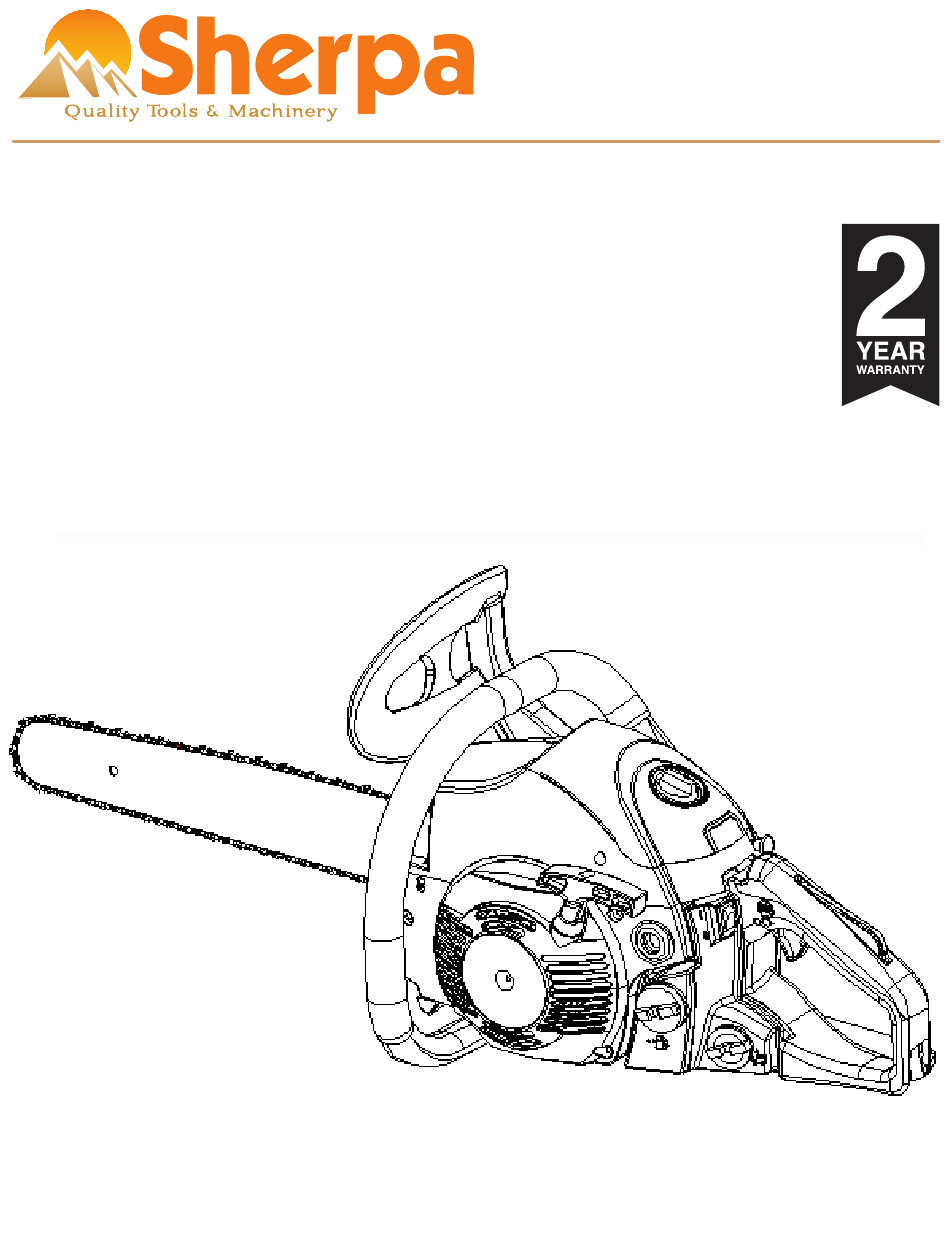

- Page 1 OWNER’S MANUAL OPERATOR’S MANUAL ST-CS4500 18” PETROL CHAINSAW IMPORTANT! IT IS ESSENTIAL THAT YOU READ THE INSTRUCTIONS IN THIS MANUAL BEFORE ASSEMBLING, OPERATING AND MAINTAINING THIS MACHINE.
- Page 2 OWNER’S MANUAL PETROL CHAIN SAW 4518 AND 5020 USER MANUAL, MAINTENANCE INSTRUCTIONS AND SPARE PARTS READ THIS MANUAL CAREFULLY BEFORE OPERATING THE MACHINE WARNING: THIS SYMBOL INDICATES IMPORTANT SAFETY PRECAUTIONS...
-
Page 6: Safety Symbols
6. Beware of objects being thrown from ■ SAFETY SYMBOLS the operating zone. 1. Warning, Danger, Caution 7. Warning! Danger of kickback 2. Read the documentation and safety instructions which are provided in this user manual. 8. Directive 2000-14/CE. Guaranteed noise levels. -
Page 7: Carburetor Adjustments
EXPLANATION OF SYMBOLS ON THE MACHINE ■ For safe operation and maintenance, symbols are carved in relief on the machine: FUEL TANK Fuel tank 2 stroke mix Position: Fuel cap CHAIN OIL Chain oil tank Position: oil cap IGNITION SWITCH Setting the switch to the “O”... - Page 14 Dia 1 Dia 1...
- Page 15 ■ A DJUSTING THE CARBURETTOR L low speed adjust screw H high speed adjust screw T idle adjust screw The carburettor has been factory adjusted, but may require fine tuning due to a change in operating conditions. Carburettor adjustments should be made by the supplying dealer using specialist tools as follows. •...
-
Page 16: Troubleshooting
There are carbon deposits in the exhaust muffler restricting the engine. Clean or change the muffler. Spark plug is worn. Replace spark plug. Saw chain will not rotate. Chain brake is activated. Deactivate chain brake. Specifications ■ MITOX 4518 Model no. ST-CS4500 Engine type 1E43F Power unit: Peak power (kw): …………………..……………1.8kw Equipment mobility Hand-held Displacement ( ): ..………………………………45.0... -
Page 17: Engine Parts Diagram
Engine Parts Diagram... - Page 18 Chainsaw Main Parts Diagram...
- Page 19 TTCS-A1 Inner Guide TTCS-A52 Gasket, Air-filter TTCS-B18 Spring TTCS-A2 Bolt M5*12 TTCS-A53 Air-filter TTCS-B19 Washer TTCS-A3 Insulator TTCS-A54 Bolt M4*14 TTCS-B20 Starter rope TTCS-A4 Gasket, Insulator TTCS-A55 Hook TTCS-B21 Starter cover TTCS-A5 Cylinder TTCS-A56 Anti-vibration, Hook TTCS-B22 Long anti-vibration damper TTCS-A6 Spark Plug TTCS-A57...
