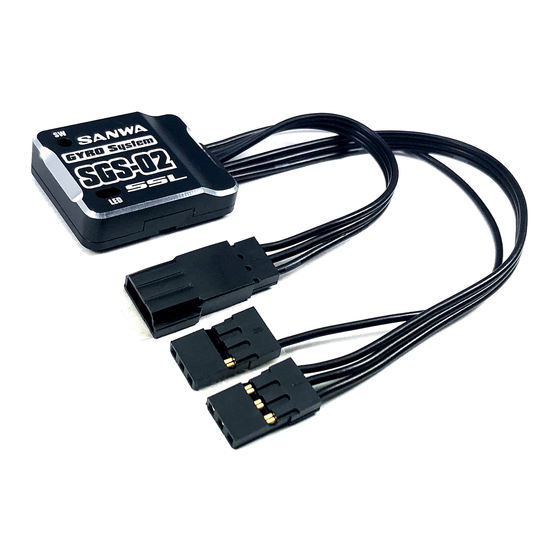

Sanwa SGS-02 Operation Manual

Thank you for purchasing SANWA SGS-02.
This operation manual is to explain how to use SGS-02 for safety uses.
Please read carefully and keep the operation manual after reading.
Caution and Warnings
■The SGS-02 is designed specifically for use with SANWA transmitter.
■The products is not waterproof. Please do not use in raining as excessive moisture.
■After driving RC car, please keep it to take off the battery.
Feature
SGS-02 is for the automatically motion control for opposite lock (counter-steering).
It use any categories as F1 and Drift and adjust setting values for various categories.

Main Features

High quality competition grade gyro system
New system "QUICK" function can make ideal motion
Compatible with SXR (SANWA Extreme Response) mode (will be the best smooth motion)
The setting can be set by SANWA transmitter (AUX-ADJ, CODE10)
Aluminum case is installed and compact gyro

HOW to Set / Initial Setting

Please set the below contents before install the SGS-02 to car.
1. Car steering is same way with transmitter steering. (If steering is opposite way please set by REV on the transmitter)
2. Please set neutral steering setting. (If neutral is not correct, please set by SUB TRIM on the transmitter)
3. Please set End Point Adjustment for both right and left steering. (If not setting, please set by EPA on transmitter)
*In case of not setting in the above contents, please set the contents by transmitter.
Please check transmitter manual when setting the above contents.
In case of improper setting, gyro cannot be worked correctly and might be caused servo broken.

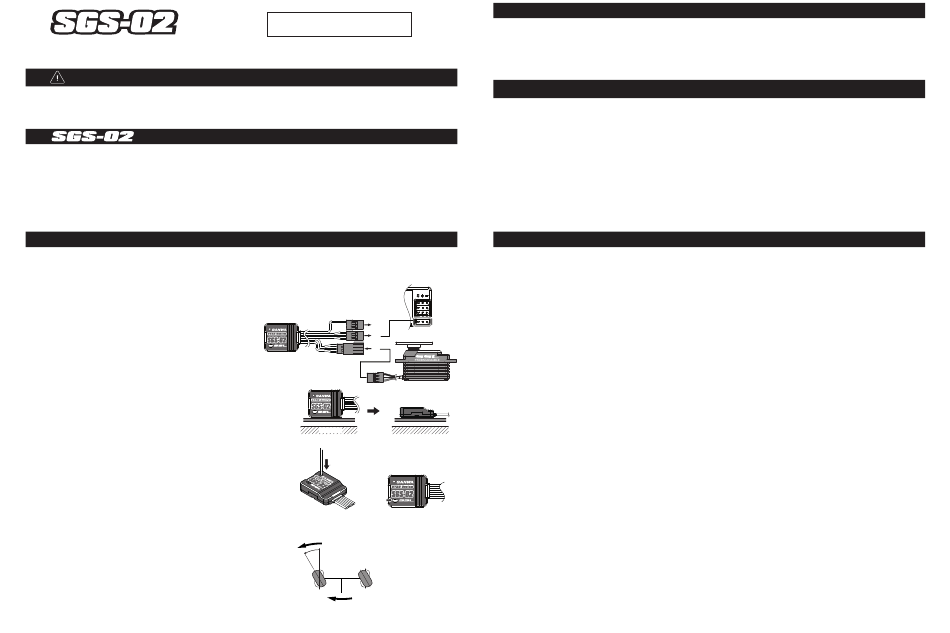

1. SGS-02 Connection

Please connect servo to the ❸ and connect ❷ to receiver CH1
* Please do not use ❶ at initial setting.
❶ AUX / SSL input connector
❷Steering Data input connector
❸Steering Data output connector

2. How to Install SGS-02

Please install the SGS-02 as right figure by double side tape.
*SGS-02 cannot correctly work with wrong installation.

3. Initial Setting (Limit Mode)

1. Turn on the transmitter
2. Press with holding SGS-02 SW and turn on car power.
(LED Status: Red Lighting / Blue and Green is flashing)
3. Turn right on transmitter steering until end. Then, press SW.
(LED Status: Green flashing change to Green lighting after press SW)
4. Turn left on transmitter steering until end. Then, press SW.
(LED Status: Blue flashing change to Blue lightning after press SW)
5. Finish default setting
(LED Status: Green, Red, and Blue lightning. After 2 seconds, the
lights will be blinking. Then, Blue lightning.)
*In case of setting REVERSE, green and blue light will work opposite.

4. Gyro Operation Direction Checking

Please move car as the right figure.
In case steering will work opposite side, the initial setting is finished.
Please turn off the car.
* In case steering will NOT work opposite side, it need to change SGS-02 REVERSE
setting by PROGRAM MODE or MULTI SETTING GEAR.
Please check how to change the setting in PROGRAM MODE contents.
1
670A02599A
Operation Manual
CH1
❶
SW
Receiver
❷
❸
LED
Servo
× SW ○
NG OK
LED
Chassis Surface
Surface
Please press SW by
thin stick
SW
LED
LED
*Tire direction
* Steering will work opposite side
by moving car
*Car moving direction

Caution Before Driving

●Caution before tuning on the car
Please turn on the transmitter first. With the car sitting on a stable flat surface, and turn on the receiver.
Please do not turn right or left steering on the transmitter when turning on the receiver.
*It will cause on inappropriate neutral position.
●In case of using SANWA PGS servo series, hunting will be happened by PGS setting.
Please check PGS setting recommendation in last page of the manual.
HOW to SET GYRO SETTING CONTENTS
To change each setting values is in the below methods.
山路を登りながら
●Change SGS-02 Setting Methods 山路を登りながら
山路を登りながら 山路を登りながら
1. Changing setting values by PROGRAM MODE
2. Changing setting values by MULTI-SETTING GEAR
●Change SGS-02 Setting Methods by the SANWA transmitter (Wireless settng from transmitter)
3. Changing setting values by AUX
4. Changing setting values by CODE10
2. and 4. methods are needed to prepare devices.
2. method needs MULTI-SETTING GEAR.
4. method needs receivers and transmitter are compatible with CODE10 (CODE5 is not compatible).
*In case of using MULTI-SETTING GEAR, please update firmware for SGS-02.
Please check SANWA HP for firmware (Firmware ver is same as PGS-HR).
*Please also check devices are compatible with CODE10 and SSL function on SANWA HP.
GYRO FUNCTION
SGS-02 can be set each function values in the below.
●GAIN
Function is for setting gain.
In case of increasing gain setting, the car will be stable.
●QUICK
Function is for quick car movement.
In case car will be difficult to turn due to high gain, car will be easy to turn by increasing QUICK values.
●SPD-FW/SPD-RT(Speed-Forward/Return)
Function is for reduce gyro movement speed.
F(Gyro movement speed when initial cornering), R(Gyro movement when servo will be back to the neutral position)
In case of reducing gyro movement speed, the car will be smooth and the car movement will be as real car.
●GY-LIM(Gyro Limiter)
Function for limited the gyro movement.
Mainly, the function will be used for F1. In case gyro worked too much, the gyro movement will be limited by increasing value.
●AVE-FL(Average Filter)
Function is for reducing servo hunting.
In case of nonprogrammable servos, hunting might be happened.
Hunting will be less by increasing the value.
●REVERSE
Function is for gyro movement reverse.
In case of gyro movement is opposite in default setting, it will be set reverse.
●SXR-OUT
山路を登りながら
Function can be gyro out put will be SXR (SANWA Extreme Response) mode.
Even if device is incompatible with SXR mode, gyro out put will be SXR mode. 山路を登りながら
(*The function is required to use servo is compatible with SXR mode.)
●AUX-ADJ( AUX Adjust)
Function is setting content change by AUX.
SGS-02 can change AUX setting content by AUX-ADJ function.
AUX-ADJ function can choose one content from GAIN, QUICK, SPD-FW/SPD-RT, GY-LIM, and AVE-FL.
●GAIN-LV(Gain Level)
Function is for changing gain rate.
In case of changing gain rate, SGS-02 will fit to any categories as F1 and Drift.
Basically, F1 set 0.5 and Drift set 1.
山路を登りながら 山路を登りながら
