Summary of Contents for Dietz TSE-1

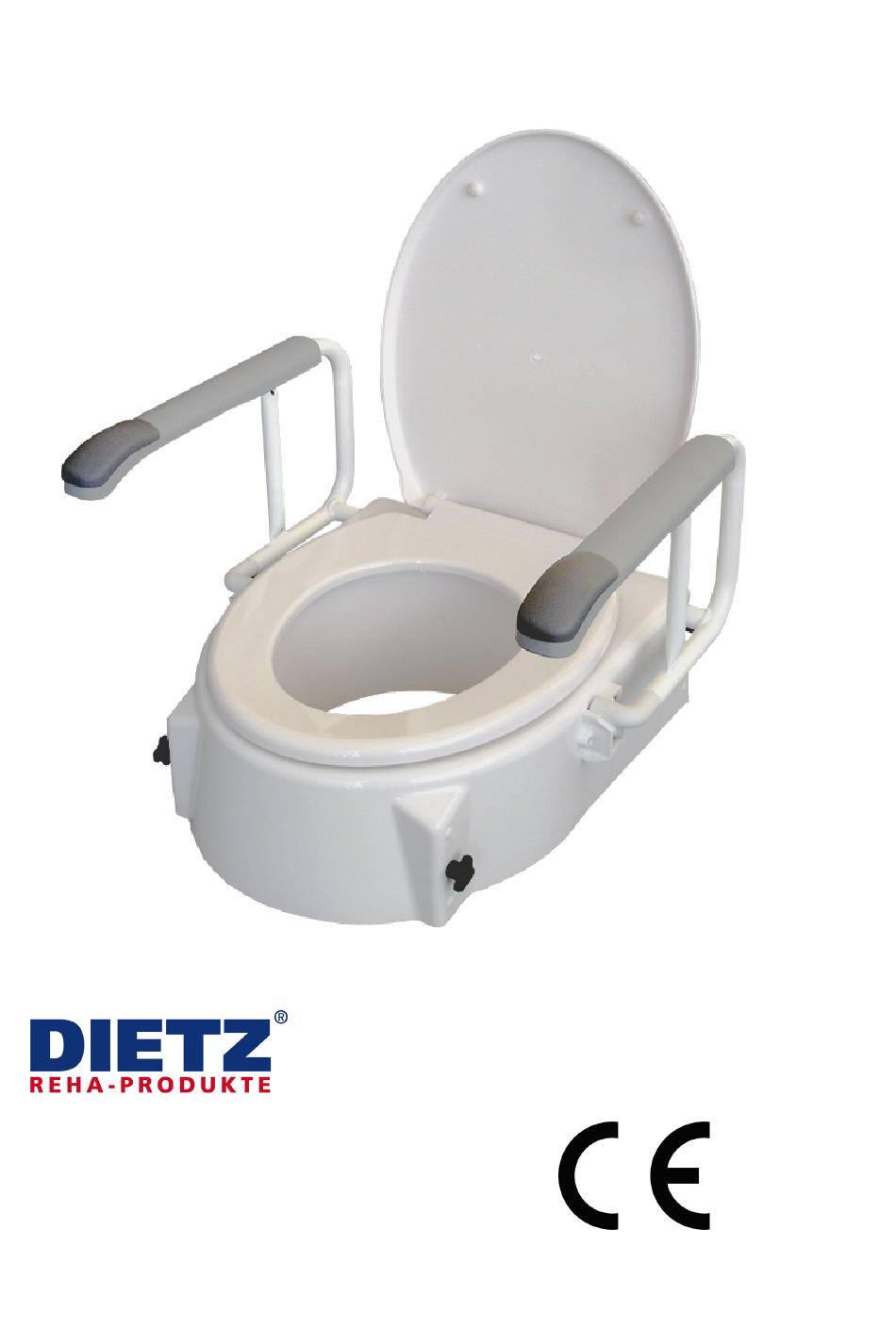

- Page 1 Instructions for Use Booster Toilet Seat TSE-1 Reutäckerstraße 12 D-76307 Karlsbad-Ittersbach Tel. +49 (0) 7248/ 9186 - 0 Fax. +49 (0) 7248/ 9186 - 86...
-
Page 2: Table Of Contents
Liability ............ Notes on Safety................4 Overview of Product and Delivery ..........5 Inspection of Delivery ................5 Equipment of the Booster Toilet Seat TSE-1 .......... 5 Labeling and type plates ................6 Assembly ..................6 Assembly of arm-rests ................6 Setting the seat height ................ -
Page 3: General Information
TSE-1 pursuant to EC Directive 93/42 for medical products. Appropriate use The booster toilet seat TSE-1 is suitable for toilet use by persons up to a maximum body weight of 120 kg. The adjusted height of the booster toilet seat and the movable arm-rests make it much easier to shift from the wheelchair to the toilet. -
Page 4: Indication
Important! Indicates very useful information for the respective context. Liability Dietz GmbH only accepts liability if the products are used under the conditions specified and for the purpose specified. We recommend that products be handled properly and in accordance with the instructions for use. -
Page 5: Overview Of Product And Delivery
The contents comprise: 1 packaging and transport box 1 pre-assembled booster toilet seat 2 arm-rests 1 instructions for use Equipment of the Booster toilet seat TSE-1 Arm-rests Seat Complete booster Bolts for bar (front) Bar height adjustment... -
Page 6: Labeling And Type Plates
Booster Toilet Seat TSE-1 Labeling and type plates Type plates and manufacturer plates are attached to the frame under the seat. Plates must be legible. Illegible or missing plates must be replaced immediately. The type plate is important for identification of the product. -
Page 7: Setting The Seat Height
Setting the Seat Height The seating height of the booster toilet seat can be easily adjusted to your requirements. First, remove the hole covers by pushing them out from the inside. Unscrew the twist buttons to remove the bearing bar. Move the bearing bar to the desired height ... -
Page 8: Attaching The Booster Toilet Seat
Booster Toilet Seat TSE-1 Attaching the booster toilet seat To mount the booster toilet seat, the old toilet seat first hast o be removed. Check if the factory-set height of the booster toilet seat meets your requirements. To do this, place the booster toilet seat on the toilet bowl. You can adjust the height. -
Page 9: Use
Use the arm-rests for careful sitting down and getting up from the front. When entering from the side (e.g. wheelchair), swivel the arm-rests to the back on the respective side of entrance. Make sure that the arm-rests lock correctly when flapping them down. Clothing or parts of the body may become jammed in the catch for the arm-rests when flapping down the arm-rests. -
Page 10: Notes On Care For The User
This does not include malfunctions which can be rectified by cleaning. The specialist trader is to be supplied with necessary information and documents for repair and servicing, on request. Dietz Customer Service is available to deal with any questions, on +49 (0) 7248/ 9186 - 0. Disposal... -
Page 11: Technical Data
Technical Data Order Number 000119 Width cm Height cm Length cm Increase in seating 8/ 12/ 16 position cm Seat width cm Seat depth cm Opening cm 28 x 23 Distance between the armrests cm Empty weight kg Max. load capacity kg... -
Page 12: Guarantee
Booster Toilet Seat TSE-1 Guarantee Guarantees cover all defects of the product verifiably caused by material or manufacturing defects. The guarantee period is 24 months as of readiness for shipment, and at the latest after delivery. The guarantee does not cover damage caused by natural wear and tear, by intent or by negligent, inappropriate operation or use.
