VitBest SQ-04014K Manual

4k 4x1 seamless switcher with multi-view
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SQ-04014K
4K 4X1 Seamless Switcher with Multi-view
All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SQ-04014K and is the answer not in the manual?

Questions and answers

Summary of Contents for VitBest SQ-04014K

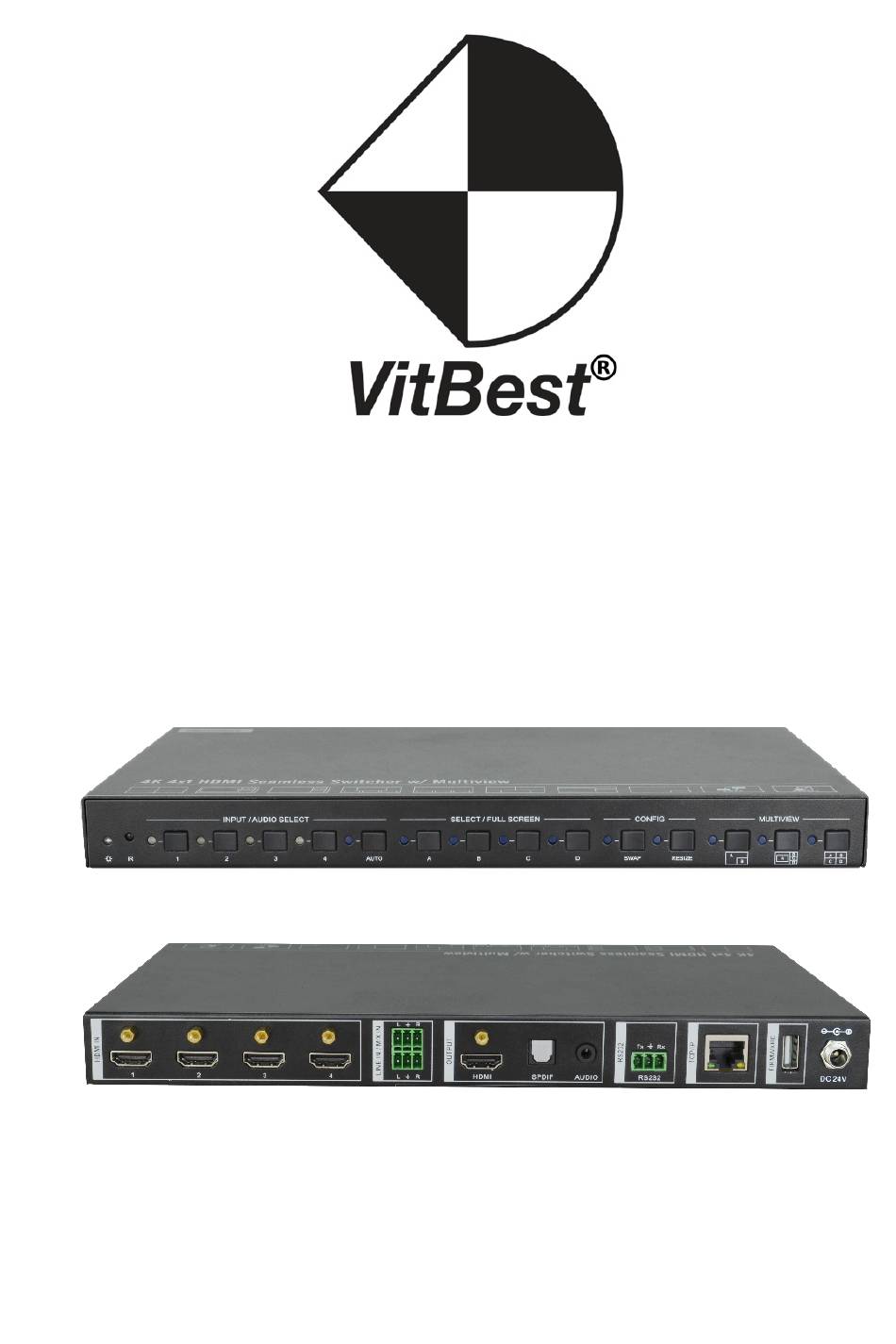

  • Page 1 SQ-04014K 4K 4X1 Seamless Switcher with Multi-view All Rights Reserved...

  • Page 2: Table Of Contents

    SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view Table of Contents Specification ........................ 1 Panel Description ......................3 Front Panel ......................3 Rear Panel ......................4 System Connection ..................... 5 Usage Precaution ....................5 System Diagram ....................5 Front Panel Control ..................... 6 Multi-views Selection ..................
  • Page 3 SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view 7.2.3 Audio Switching ..................23 7.2.4 Function Setting ..................24 7.2.5 CEC Command ..................30 7.2.6 Special Commands ................35 Firmware Upgrade ..................... 37 Panel Drawing ......................37 Troubleshooting & Maintenance ................38...

  • Page 4: Specification

    SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view Specification Video Video Input (4) HDMI IN (1~4) Video Input Connector (4) Type-A female HDMI HDMI Input Resolution Up to 4K@30Hz 4:4:4 Video Output (1) HDMI Video Output Connector (1) Type-A female HDMI...
  • Page 5 SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view Audio Out (1) AUDIO Audio Out Connector (1) 3.5mm mini jack Frequency Response 20 Hz to 20 kHz, ±1dB 2.0 Vrms ± 0.5 dB. 2 V = 16 dB headroom above -...

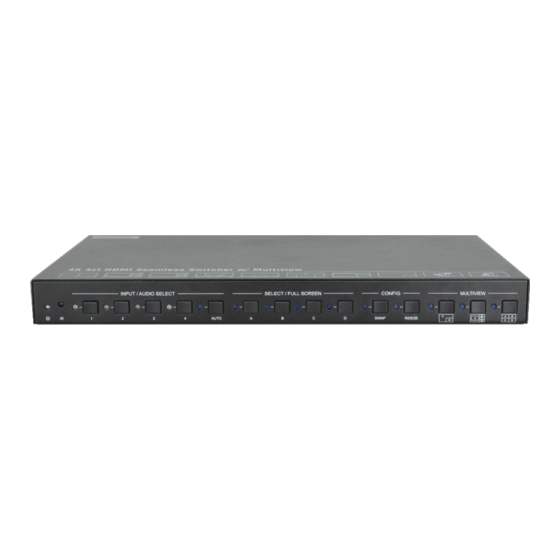

  • Page 6: Panel Description

    Panel Description Front Panel ① POWER LED: The LED illuminates green when it is working, and the LED illuminates red when it is standby. ② IR LED: Built-in IR sensor, receive IR signal sent from IR remote. ③ FOUR INPUT LEDS/AUDIO SELECTS: Press the buttons to selected corresponding HDMI input, its LED illuminates yellow when there is a video signal, it will illuminates blue when the video signal is chosen as input source.

  • Page 7: Rear Panel

    SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view Rear Panel ① HDMI IN: Four type-A female HDMI input ports to connect HDMI source devices. ② LINE IN: 3-pin terminal block to connect audio source device like mobile phone or computer to embed in HDMI audio sources.

  • Page 8: System Connection

    SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view System Connection Usage Precaution Make sure all components and accessories included before installation. System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets, and power cords should be insulated and safe.

  • Page 9: Front Panel Control

    SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view Front Panel Control Multi-views Selection Factory default is four quarter views, and factory default input and output corresponding relation is input1 -> window A, input2 -> window B, input3 -> window C, input 4->...

  • Page 10: Video Switching Status Inquiry

    SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view 5) When full screen mode changes into multi-view mode, the AUTO mode will not exit. Video Switching Status Inquiry In the Multi-view mode (Window A, B, C or D LED illuminate blue).

  • Page 11: Ir Remote

    SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view IR Remote ① INPUTS: Press 1-4 button to select the input sources. Press AUTO button to INPUTS automatically detect the input sources. ② SELECT/FULL SCREEN: Press A-D AUTO button to display corresponding input as full-screen mode.

  • Page 12: Gui Control

    SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view GUI Control The switcher can be controlled via TCP/IP. The default IP settings are: IP Address: 192.168.0.178 Subnet Mask: 255.255.255.0 Type 192.168.0.178 in the internet browser, it will enter the below log-in webpage:...

  • Page 13: Multiview Tab

    SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view Multiview Tab Type the default user name and password, and then click Login to enter the Multiview Tab shown as below: ① Pre-defined § Pre-defined: ü Click the corresponding button (Layout1~16) to select video input view and mode.
  • Page 14 SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view ü Click Setting button to enter Window Select, and select any one of input sources and corresponding output shown windows. ② User-defined ü Click 1, 2, 3, or 4 button to choose User Layout.

  • Page 15: Audio Tab

    SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view ü Click OK button to exit the current interface and reselect User-defined if the Bandwidth limit exceeded. Audio Tab ü Click On button to enter Mix mode, Click Off button to exit Mix mode.

  • Page 16: Resolution Tab

    SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view Resolution Tab ü Click any one of built-in resolutions for the selected input source device, click Auto button to show the resolution from third-party display device automatically. ü Click Confirm button when the selection is completed.

  • Page 17: Cec Tab

    SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view ü Command Ending: NULL, CR, LF or CR+LF can be chosen. ü Command: Type the command in this box to control the third-party device which is connected to the RS232 port of the switcher.
  • Page 18 SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view ② Display ü Click Display buttons to control the third-party display devices. ③ User-defined ü Select corresponding input source devices and display devices to control via CEC commands. www.vitbest.com - Page 15...

  • Page 19: Edid Tab

    SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view EDID Tab ① Upload ü User-defined EDID can be customized by the below steps: Step 1: Prepare the EDID file (.bin) on the control PC. Step 2: Select the EDID file (.bin) according the tooltip.

  • Page 20: Network Tab

    SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view ü Click Setting button to set built-in EDID. ü Click HDMI 1-4 button to select input source. ü Click any one of built-in EDIDs for the selected input source device. Network Tab ü...

  • Page 21: Security Tab

    SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view Security Tab ü Modify the login password. ü Lock or unlock the front panel buttons. GUI Update Web-based GUI for the Seamless Switcher supports online update in http://192.168.0.178:100. First, the Switcher is running. Type the username and password (the same as the GUI log-in settings, modified password will be available only after rebooting) to log in the configuration interface.

  • Page 22: Rs232 Control

    RS232 Control Connect the RS232 port to control device (e.g. PC) with RS232 cable. The switcher can be controlled by sending RS232 commands. RS232 Control Software Installation: Copy the control software file to the control PC. Uninstallation: Delete all the control software files in corresponding file path. Basic Settings: Connect the switcher with all input devices and output devices needed, then to connect it with a PC which is installed with RS232 control software.
  • Page 23 SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view The main view is shown as below: Parameter configuration area Monitoring area, show the commands and its feedback information. Command sending area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, and then you are able to send command in command sending area.

  • Page 24: Rs232 Command

    SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view RS232 Command Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none 7.2.1 System Control The ending mark of command is “<CR><LF>”. Command & Feedback...

  • Page 25: Signal Switching

    SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view 7.2.2 Signal Switching Command & Feedback Command Description Example Switch an input AV signal to one or more outputs #SET_AV INPARAM TO OUTPARAM #SET_AV 3 #SET_AV 1 TO A INPARAM = 1 ~ 4...

  • Page 26: Audio Switching

    SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view 7.2.3 Audio Switching Command & Command Description Feedback Example Mute/Unmute audio #SET_AUDIO_MUTE PARAM #SET_AUDIO_MUTE 1 #SET_AUDIO_MUTE PARAM = 0 ~ 1 @AUDIO_MUTE 1 0 - DISABLED 1 - ENABLED #GET_AUDIO_MUTE #GET_AUDIO_MUTE Get the audio mute status...

  • Page 27: Function Setting

    SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view 7.2.4 Function Setting Command & Command Function Feedback Example Set the RS232 baud rate. #SET_RS232_BAUD PARAM PARAM = 1 ~ 7 1 - 115200 #SET_RS232_BAUD 0 #SET_RS232_BAUD 2 - 57600 @RS232_BAUD 5...
  • Page 28 SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view Command & Command Function Feedback Example Get the HDCP mode of #GET_OUTPUT_HDCP #GET_OUTPUT_HDCP output port @OUTPUT_HDCP 1 Set the EDID mode #SET_EDID_MODE PARAM1 PARAM2 PARAM1 = 1 ~ 4 1 - HDMI 1...
  • Page 29 SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view Command & Command Function Feedback Example @KEYPAD_LOCK 1 #SET_KEYPAD_LOCK PARAM PARAM = 0 ~ 1 0 - DISABLED 1 - ENABLED Get the keypad locking #GET_KEYPAD_LOCK #GET_KEYPAD_LOCK status @KEYPAD_LOCK 1 Enter/exit standby mode...
  • Page 30 SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view Command & Command Function Feedback Example 13 - 4 WINDOWS PIP 1F3L 14 - 4 WINDOWS PIP 1F3R 15 - 4 WINDOWS PIP 1F3U 16 - 4 WINDOWS PIP 1F3D 17 - USER CONFIG 1...
  • Page 31 SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view Command & Command Function Feedback Example @SUBNET_MASK: 255.255.255.0 @GATEWAY: 192.168.0.1 #SET_SWAP_SRC @SWAP_SRC @VIDEO #SET_SWAP_SRC Swap input source OUT A B C D IN 1 2 3 4 @AUDIO_SRC 1 #SET_RESIZE_WIM #SET_RESIZE_WIM Resize display windows...
  • Page 32 SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view Command & Command Function Feedback Example Set the time while no signal to do CEC and RS232 #SET_DTIME 1:30 action #SET_DTIME 1 #SET_DTIME #SET_DTIME 0:1800 #SET_DTIME PARAM1:PARAM2 @DTIME 1:30 PARAM1 = 0 ~ 30 minus...

  • Page 33: Cec Command

    SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view Command & Command Function Feedback Example Set the DISPLAY OFF message loop delay time #SET_OFF_DELAY #SET_OFF_DELAY #SET_OFF_DELAY PARAM @OFF_DELAY 5 PARAM (1=100ms) DISPLAY #GET_OFF_DELAY 5 #GET_OFF_DELAY message loop delay time @OFF_DELAY 5 CEC Command 7.2.5...
  • Page 34 SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view Command & Command Function Feedback Example PARAM = 1 ~ 4 1 - HDMI 1 2 - HDMI 2 3 - HDMI 3 4 - HDMI 4 Send CEC LEFT command to source...
  • Page 35 SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view Command & Command Function Feedback Example #SET_SRC_ENTER PARAM PARAM = 1 ~ 4 1 - HDMI 1 2 - HDMI 2 3 - HDMI 3 4 - HDMI 4 Send CEC ON command to...
  • Page 36 SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view Command & Command Function Feedback Example Send CEC PLAY command to source #SET_SRC_PLAY PARAM #SET_SRC_PLAY 1 #SET_SRC_PLAY PARAM = 1 ~ 4 @SRC_PLAY 1 1 - HDMI 1 2 - HDMI 2...
  • Page 37 SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view Command & Command Function Feedback Example 3 - HDMI 3 4 - HDMI 4 Send CEC rewind command to source #SET_SRC_REW PARAM #SET_SRC_REW 1 #SET_SRC_REW PARAM = 1 ~ 4 @SRC_REW 1...

  • Page 38: Special Commands

    SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view 7.2.6 Special Commands Note: The below commands don’t need ending mark. Command & Command Description Feedback Example Send the command "XXXX" to the 3th device while the system enter power on mode.
  • Page 39 SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view Command & Command Description Feedback Example Send the command "XXXX" to the 3th device while the system enter power off or standby mode. #SET_OF_(PARAM):XXXX #SET_OF_05:ABCD PARAM = 01~07 01 - 115200 ABCDEFG...

  • Page 40: Firmware Upgrade

    SQ-04014K - 4K 4x1 Seamless Switcher with Multi-view Firmware Upgrade 1) Prepare the latest upgrade file (.bin) and rename it as “FW_MV bin” on PC. Power off the switcher and connect the FIRMWARE port of switcher to the PC with Type-A USB cable.

  • Page 41: Troubleshooting & Maintenance

    (e.g. a PC) through Send it to authorized RS232 port Broken RS232 port. dealer for checking. Note: If your problem still remaining after following the above troubleshooting steps, please contact your local dealer or distributor for further assistance. www.vitbest.com – Page 38...
