Selser GRAL02 Installation Manual

LED AREA LIGHT
Installation Guide
PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION
— To prevent personal injury or product damage only licensed electricians should install.
— To avoid electric shock or component damage disconnect power before attempting installation or servicing.
— This product must be installed in accordance with the national electric code (NEC) and all applicable federal, state and local electric codes and safety standards.
— Disconnect product and allow cooling prior to servicing.
— Any alteration or modification of this product is expressly forbidden as it may cause serious personal injury, death, property damage and/or product malfunction.
— To prevent product malfunction and/or electrical shock this product must be properly grounded.
— This luminaire is designed to operate in ambient temperatures ranging from -40°C to 45°C and to be horizontally mounted with the LEDs facing down.
— This product must be installed in accordance with the applicable installation code by a Person familiar with the construction and operation of the product and
the hazards involved.
— MIN 75°C SUPPLY CONDUCTORS
— CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH CIRCUIT CONDUCTOR
— CAUTION - RISK OF FIRE
— Slipfitter Mounted with PHOTOCELL function elevation angle should not exceed 15 degrees

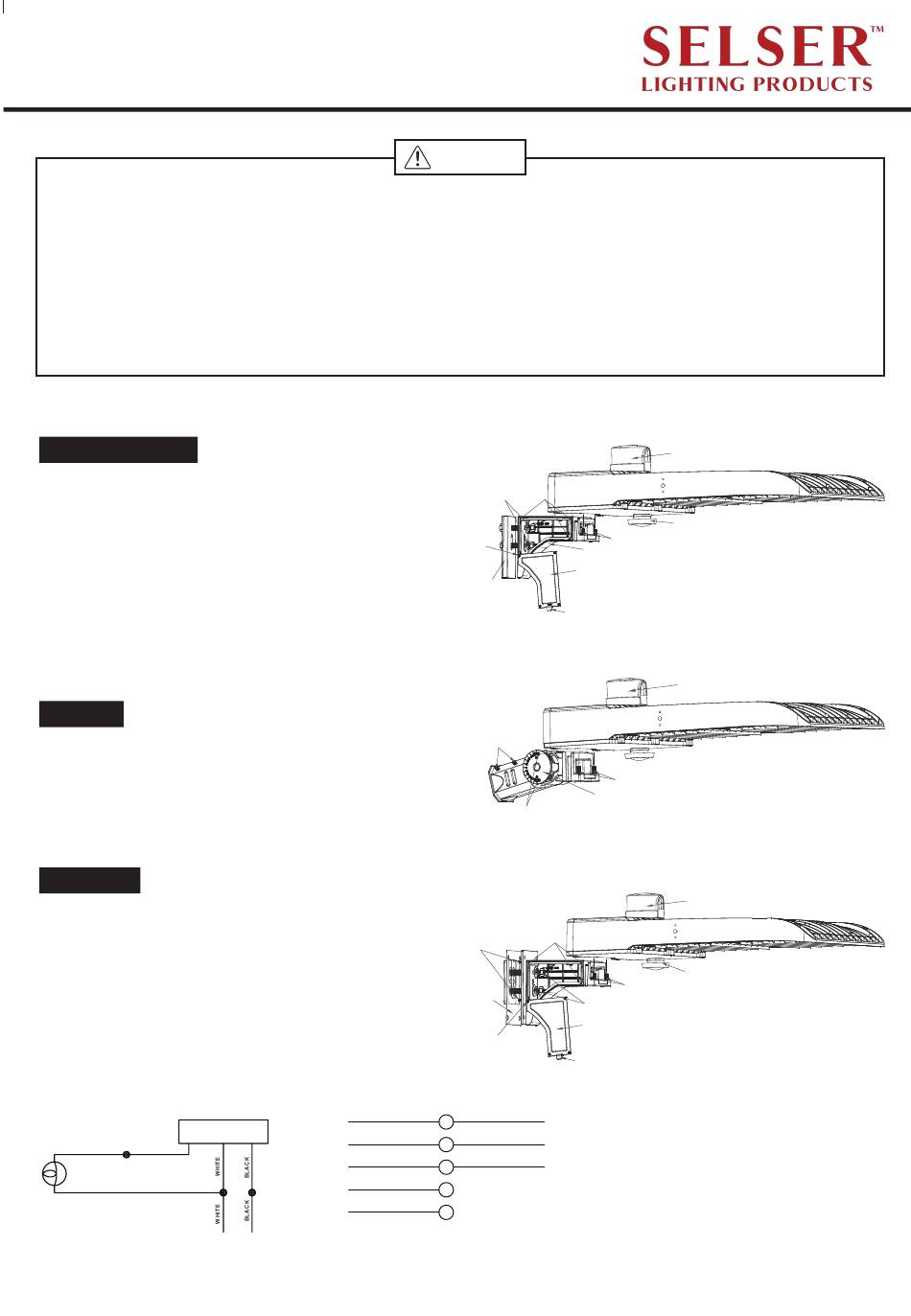

Installation Guide

Square/Round Pole

1. Remove the side plate from mounting bracket. Please skip to
step 3 if mounted onto the square Pole.
2. Attach round pole mounting plate on mounting bracket.
3. Route the cord into mounting bracket through the hole for wiring,
slide the fixture onto the bracket and tighten 2 bottom screws.
4. Slightly drag the wires to make sure the hole on bracket is
sealed by silicon gasket.
5. Make wiring connection as per wire diagram below, replace
the side plate and fasten screws.
Slipfitter
1. Connect the wires to L / N / GND
2. Remove the cover and adjust the bracket to the desired angle
3. Install the bracket on the pole and fix it with screws
Wall Mount
1. Remove the side plate by loosen the screws.
2. Fix the back plate onto the arm bracket with screws provided.
3. Use the metal template provided to locate footprint on the wall
to drill the holes, then fix the bracket on the wall with screws.
4. Route the power cord into wall mount bracket, slide the fixture
onto the mounting bracket, then tighten bottom screws.
5. Make wiring connection inside of bracket and replace the
side plate with screws.
PHOTOCONTROL
MOTION SENSOR
BLACK RED
LAMPLOAD
WHITE

Wire Connection

Black
White
Green/Yellow Green
Purple
Gray
Note:Two dimming wire in the driver box
INPUT
WARNING
PM4*8(mm)
1/2''*1.97(inch)
Screws
UNC Screws
PM4*12(mm)
Screws
Mounting bracket
Side plate
Round pole
mounting plate
OPEN
M8*20(mm) Screws
Side plate
PM4*12(mm) Screws
PM4*8(mm) Screws
KM4*10(mm) Screws
Back plate
1/2''1.46(inch) UNC Screws
Side plate
PM4*12(mm) Screws
OPEN
Line
Neutral
Ground
Twisted photocell (optional)
Motion Sensor (optional)
5/16''*1.02(inch) UNC Screws
Twisted photocell (optional)
5/16''*1.02(inch) UNC Screws
Twisted photocell (optional)
Motion Sensor (optional)
5/16''*1.02(inch) UNC Screws
(Figure 1)
(Figure 2)
(Figure 3)
