SWIT PL-E60D User Manual

PL-E60D/PL-E90D
Edge Mounted SMD Panel LED Light
Ver:B
Congratulations on your purchase of this product. Please read this user manual carefully.

Features

1. Using super high CRI SMD LEDs with accurate color temperature and
50,000hrs long life time;
2. Edge mounted LEDs; the output light is stable, uniform, soft and
glareless;
3. Color temperature 2700K-6500K continuously adjustable, 0%-100%
brightness adjustable;
4. Provide normal and quick adjusting modes for color temperature and
brightness;
5. There are two communication control modes: DMX communication
mode and interaction control mode
Specification
Model PL-E60D
Color temperature 2700K-6500K
Brightness 0%-100%
luminance 1500 Lux@1m
Appr.70º( without honey comb)
Half beam angle
Appr.40º （ with honey comb）
CRI
98
TLCI
99
Working voltage
DC 11-36V
Power consumption
Appr.60W
Dimension
382mmx403mmx48mm
Lighting area
257mmx257mm
Net weight
3.8Kg

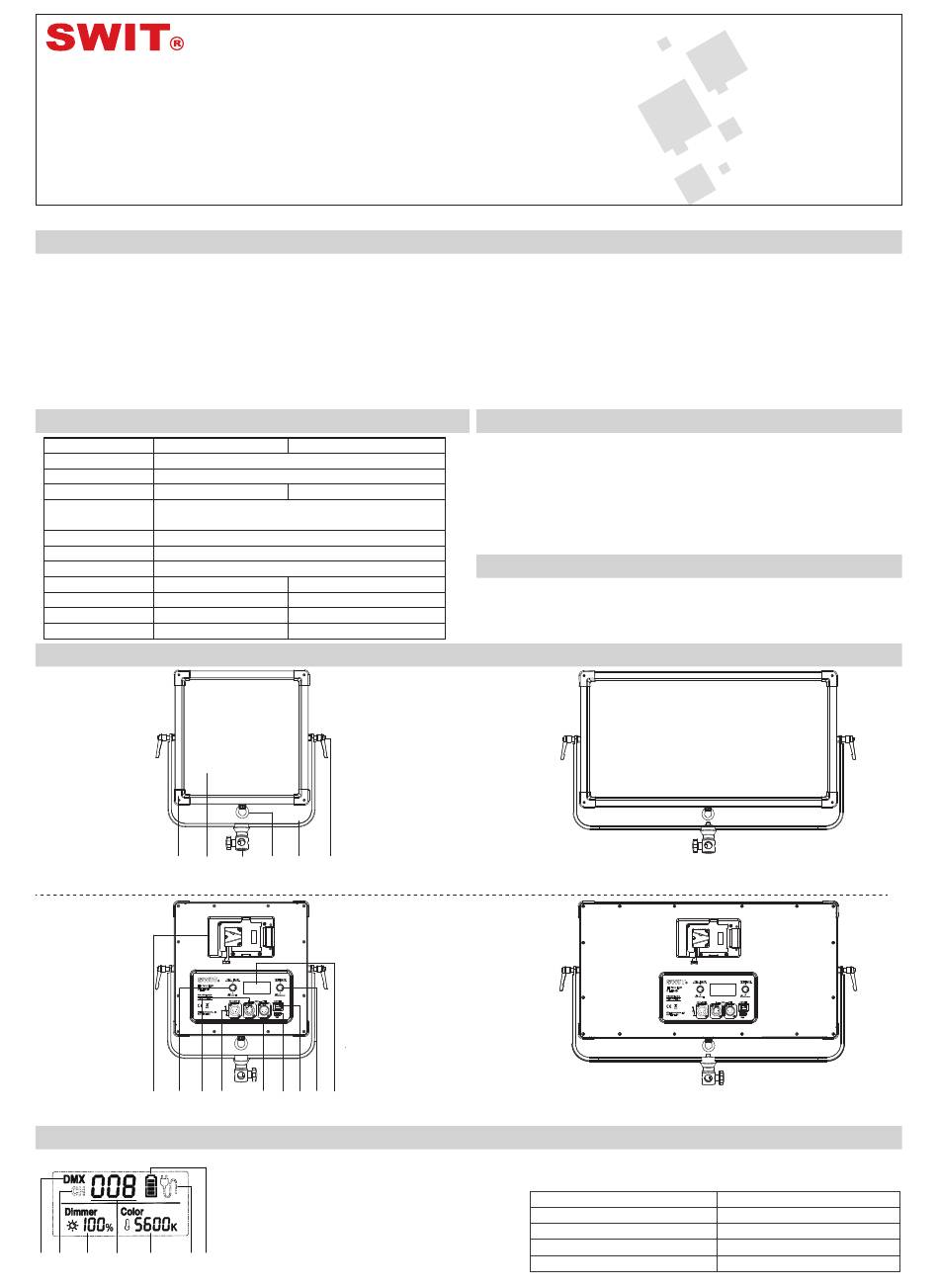

Appearance

Front view:
① ②
Fig.1 PL-E60D
Rear view:
⑦ ⑧ ⑨ ⑩
Fig. 3 PL-E60D

LCD display

For example: color temperature 5600K, dimmer 100%, powered by fully charged battery ,DMX communication mode, address008, it will display as below:
① ② ③ ④ ⑤ ⑥ ⑦
Fig. 5 LCD display
USER MANUAL
S W I T E l e c t r o n i c s C o. , L t d .
PL-E90D
2200 Lux@1m
Appr.90W
654mmx403mmx 48mm
526mm x 257mm
5.7Kg
① Barn door mounting point
② Diffuser
③ U-shape bracket connector
④ Ring
⑤ U-shape bracket
⑥ bracket knob
③ ④ ⑤ ⑥
⑦ Battery plate
⑧ CT dimming knob
⑨ DMX IN
⑩ DC11-36V IN
⑪ DMX OUT
⑫ USB socket
⑬ Power switch
⑭ Dimmer knob
⑮ LCD display
⑪ ⑫ ⑬ ⑭ ⑮
① Current communication control mode
⸺DMX communication mode
② Current communication control mode
⸺interaction control mode
③ Brightness display
④ Communication address
⑤ CT display
⑥ Power supply display(AC adaptor power supply)
⑦ Power supply display( battery power supply)
6. Super high CRI Ra 98, TLCI 99;
7. Support powering by V-mount/Gold mount battery or 4-pin XLR, and has
power reverse protection function;
8. LCD displays current color temperature value, current dimmer percentage,
communication address, communication mode, power supply and
remaining battery indications;
9. All-metal body; super thin design;
10. Packing options: portable simple package, engineering package and
three lights set package.
Caution
1. Please do not disassemble the light or touch its inner part with metal;
2. Please do not put the light under conditions full of dust or moisture to avoid
damage;
3. USB socket is reserved socket; pls use according to specified using environment
for related products, and do not use for other purpose to avoid damage.
4. When using interaction control function, pls do not connect to DMX output
equipments, otherwise this function can not be used.
5. Only use the light in the temperature range of -10℃～40℃.
Clean
1. Please clean the front LED panel with soft dry cloth. If using soft cloth with
slight clean neutral detergent solution, please wipe again with a soft dry cloth.
2. Do not use wet cloth, anhydrous alcohol, gasoline, or a mixture of anhydrous
alcohol and ether etc. to wipe the front LED panel.
Note:
When powered by battery, the battery capacity will be displayed as below:
Four LEDs
Three LEDs
Two LEDs
One LED
No display (outline boarder flicker)
Tel:+86-25-85805753
Fax:+86-25-85805296
http://www.swit.cc
E-mail: contact@swit.cc
Fig.2 PL-E90D
Fig. 4 PL-E90D
About 80%-100%
About 60%-80%
About 40%-60%
About 20%-40%
Under 20%, lack of power
