Summary of Contents for Hickory Springs TRANSITIONAL TS150

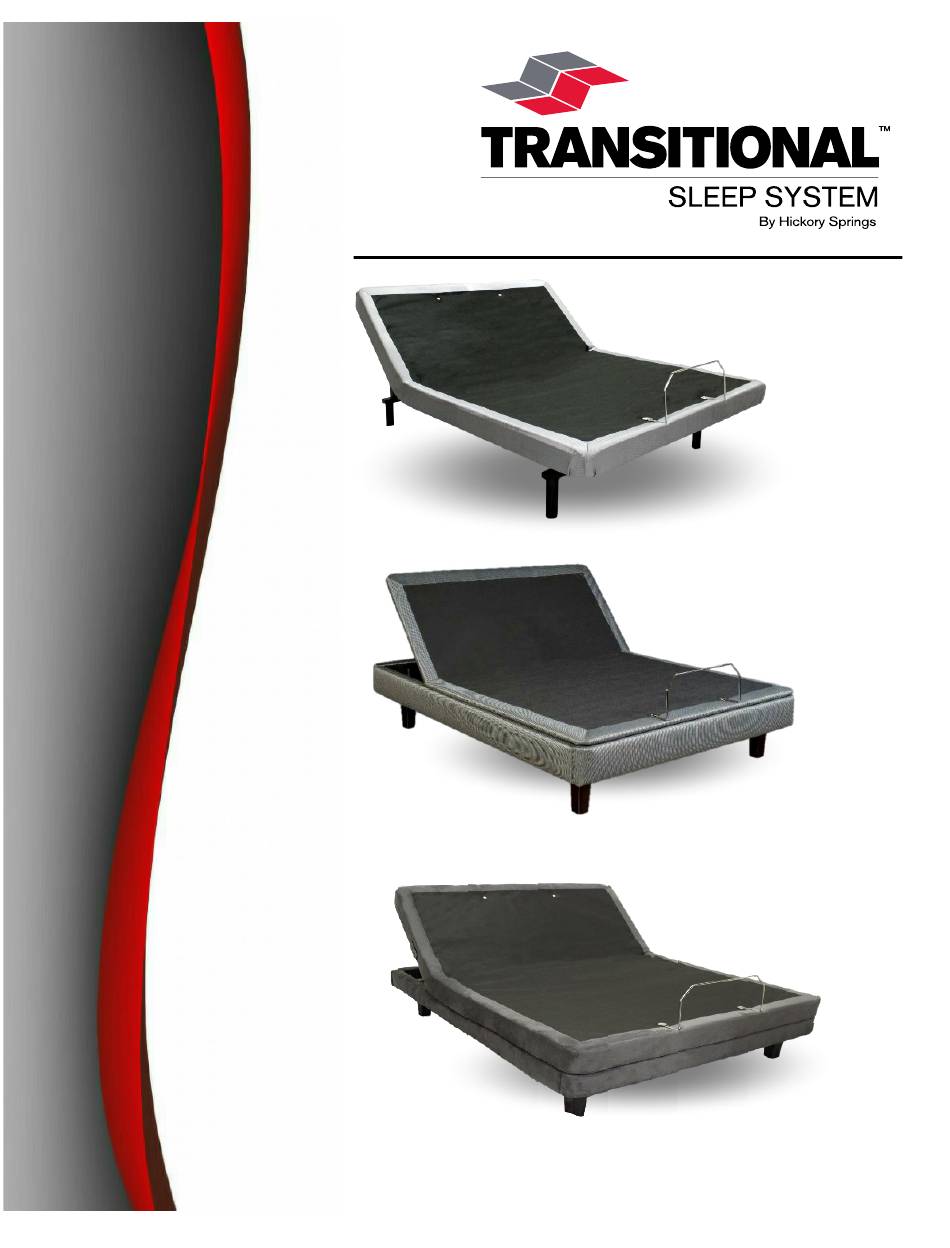

- Page 1 TS150 TS250 TS300 Adjustable Base Owners Manual HS Manufacturing, LLC, a subsidiary of Hickory Springs Manufacturing Company | P/N 303007002 REV. Sept 2018...
- Page 3 ADVISORY IMPORTANT INFORMATION READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THIS PRODUCT FOR OPTIMUM ADJUSTABLE BASE OPERATION, USE A GROUNDED ELECTRICAL SURGE PROTECTION DEVICE (NOT INCLUDED). FAILURE TO USE A SURGE PROTECTION DEVICE COULD COMPROMISE SAFETY OR CAUSE PRODUCT MALFUNCTION. ELECTRICAL RATING Electrical components are rated for 100-240V, 50-60Hz, 1.6 amp.
-
Page 5: Table Of Contents
TABLE OF CONTENTS Advisories .......................… Included Parts ....................….…. Leg Installation ....................….… Battery Backup & Power Connection ..............….… Wireless Remote Setup..................….…. Bluetooth Setup (TS300)..................… Base Setup......................….…. Mattress Retainer Installation................….…. Trim Board Installation (TS250 and TS300)..........….…...… Split Bed Setup....................…. Headboard Installation….…………….…….…….….….…………….……….……….. TS150 Wireless Remote Overview..............… TS250/TS300 Wireless Remote Overview..............14 Optional Accessories.....................…16... -
Page 6: Included Parts
INSTALLATION To install and setup your Transitional Sleep Adjustable Base, complete the numbered procedure indicated below and on the following pages. Before discarding any packing materials, verify the following items have been included: TS150: Four (4) Metal Support Legs One (1) Wireless Remote Control Two (2) 9V Batteries Two (2) AAA Batteries One (1) Hex L-key... -
Page 7: Leg Installation
INSTALLATION Step 1: Unpackaging and Leg Installation Lay shipping box flat on floor (top up) and open. Set all loose parts to the side. Open smaller box and remove legs. Install legs to base frame by screwing them into the threaded inserts in the frame. Do not over-tighten. -
Page 8: Battery Backup & Power Connection
INSTALLATION Step 2: Battery Backup and Power Supply Locate backup battery compartment and connect 9 volt batteries (included). Connect control box cord and power cord to AC adapter (TS250 & TS300.) Plug power cord into grounded electrical outlet. Use of a electrical surge protector (not included) is recommended. -
Page 9: Wireless Remote Setup
INSTALLATION Step 3: Remote Setup The wireless remote is synced to the electronics controller at the factory. If however, the remote is not synced, or becomes unsynced, follow the steps below: TS150 Press/hold HEAD DOWN FOOT UP buttons at the same time, then press/release CODING button on motor housing... -
Page 10: Bluetooth Setup (Ts300)
INSTALLATION Step 4: Bluetooth Setup (TS300) To Set Up Bluetooth Control Plug Bluetooth Module into slot in Control Box Sync Bluetooth Module to Wireless Remote : Press/hold LOUNGE buttons on remote at the same time, then press/release RESET button on front of Bluetooth module. -
Page 11: Base Setup
INSTALLATION Step 5: Base Setup Inspect underside of base and confirm all cables are secured and connections are tight. Confirm that lift motors are working properly and that all other applicable functions (massage, LED lights, and/or Bluetooth) are operational. Unplug power cord from outlet. Lift base out of box by metal frame and set on legs. -
Page 12: Trim Board Installation (Ts250 And Ts300)
INSTALLATION Step 7: Trim Boards (TS250 & TS300) The trim boards are installed at the factory. However, if the boards become loose or are uninstalled, the following procedure should be used to reinstall. a. Raise head and foot section of base to highest positions. -
Page 13: Split Bed Setup
INSTALLATION Step 8: Split Bed Setup Two (2) Twin XL or Split California King bases can be set up next to one other to create a King or California King adjustable unit. These bases can operate independently or be synced together to operate as one unit. -
Page 14: Headboard Installation
INSTALLATION Step 9: Headboard and Footboard Bracket (Optional) To attach a headboard and/or footboard to your adjustable base, the optional headboard and/or footboard brackets must be purchased from the manufacturer. See page 16 for more information. Parts: • (1) RH Mounting Bracket •... -
Page 15: Ts150 Wireless Remote Overview
REMOTE FUNCTIONS – TS150 POWER HEAD UP INDICATOR HEAD DOWN FOOT DOWN FOOT UP HEAD & FOOT DOWN HEAD & FOOT UP FLASHLIGHT (Off & On) BUTTON FUNCTION POWER Turns remote power on HEAD UP Raises Head section of base HEAD DOWN Lowers Head section of base FOOT UP... -
Page 16: Ts250/Ts300 Wireless Remote Overview
REMOTE FUNCTIONS – TS250 & TS300 FLASHLIGHT HEAD LOUNGE POSITION INTENSITY POSITION MASSAGE DOWN ON/OFF ZERO INTENSITY GRAVITY DOWN FLAT FLASHLIGHT UNDER ON/OFF LIGHTS ON/OFF FOOT BUTTON FUNCTION Puts remote into Head mode, where massage and HEAD position buttons will control head portion of base Puts remote into Foot mode, where massage and FOOT position buttons will control foot portion of base... - Page 17 REMOTE FUNCTIONS – TS250 & TS300 BASIC OPERATION MEMORY FEATURE To Sync to Control Box To Enter Memory Mode • Press/hold LOUNGE buttons at the • Press/hold INTENSITY UP (+) same time, then press/release RESET POSITION UP (POS ▲) buttons at the same button on time until control box.
-
Page 18: Optional Accessories
OPTIONAL ACCESSORIES For additional information or to order, please call Customer Service at 844-433-2435 or email inquiries to info@transitionalsleep.com Mattress Retainer (includes capture washers) TS150, TS250, TS300 Wired Remote TS150 Split Bed Split Bed Bluetooth Connectors Connector Receiver TS250, TS300 TS150 TS250 Headboard Brackets... - Page 19 TROUBLESHOOTING If your Transitional Sleep Adjustable Bed fails to operate, please review the problem you are having and look for a solution below. SYMPTOM SOLUTION Wireless remote control lights up, but is not operating 1. Check to make sure that your adjustable bed is plugged into the wall outlet.
- Page 20 Subject to the limitations set forth below, during this period Hickory Springs will replace at no cost to the original purchaser, any defective electronic part(s). Liability is limited to the replacement of the defective electronic part(s) ONLY, with the purchaser responsible for all service, installation and transportation costs associated with any warranty repair.
- Page 21 Provinces and 3 Territories of Canada. For customer service under this limited warranty, please give notice to Hickory Springs by mail, phone, email or online to the addresses set out below: For warranty claims: call or email Customer Service Toll Free at (844) 433-2435 or send email to tehamlin@hickorysprings.com.
