RENPHO RP-AP001S User Manual

Smart air purifier

Hide thumbs

Table Of Contents

model: RP-AP001S

RP-AP001S USER MANUAL

READ AND SAVE THESE INSTRUCTIONS

Table of Contents

Need help?

Do you have a question about the RP-AP001S and is the answer not in the manual?

Questions and answers

Denise

April 3, 2025

I can’t get my Renpho purifer to pair on my modems WiFi no matter how many times I’ve tried, so now the WiFi light on the purifer keeps on blinking when it’s on. How do I turn off the WiFi light off so it quits blinking?

2 comments:

Mr. Anderson

April 3, 2025

To turn off the WiFi light on the RENPHO RP-AP001S air purifier, press and hold the "Lock" and "AQ" buttons together for 5 seconds until the WiFi light starts blinking. This resets the WiFi and may turn off the light if the device is not connected.

This answer is automatically generated

Denise

April 5, 2025

@Mr. Anderson That’s the thing the device is not connected to my WiFi. I’ve tried pairing back my Renpho on the Gennic app again to reset the WiFi light to stop blinking but for some strange reason it won’t pair now. So the WiFi lights keeps on blinking while in use. Thanks for the quick response back.

Michael Arellano

March 13, 2025

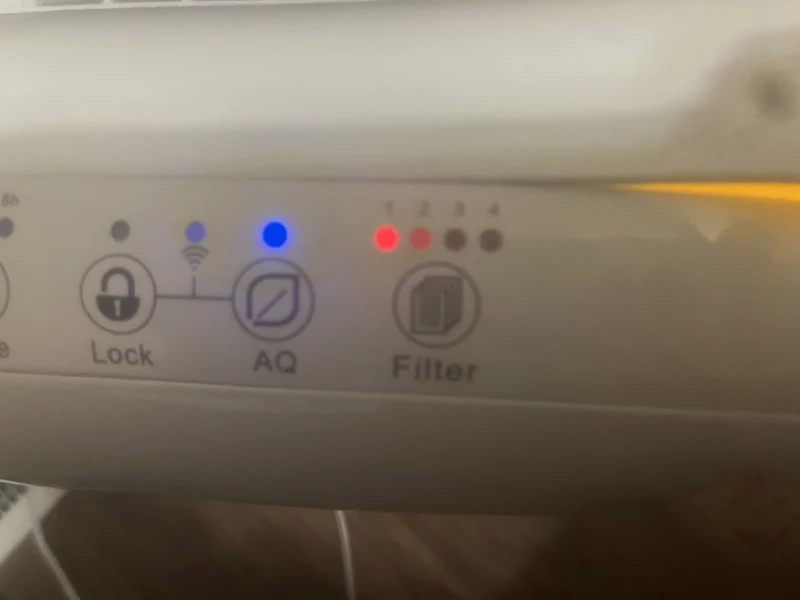

After changing all filters and reinstalling, the #1 filter light blinks orange continuously.

1 comments:

Mr. Anderson

May 14, 2025

When the #1 filter light blinks orange continuously on the RENPHO RP-AP001S after changing all filters, it means the filter’s lifetime sensor has not been reset. You need to reset the filter’s lifetime sensor so the appliance can calculate the filter’s new lifetime. To reset, press the button to select the filter number, then press and hold the button for 3 seconds until the light turns off.

This answer is automatically generated

Summary of Contents for RENPHO RP-AP001S

Page 1 RP-AP001S RP-AP001S USER MANUAL READ AND SAVE THESE INSTRUCTIONS...
Page 2: Table Of Contents
4. Control Panel …………… … … … … ………………………06 5. Before First Use ……………………………………………07 6. Using the Appliance ………………………………………09 7. RENPHO Smart App Setup ………………………………11 8. Connect with Alexa ………………………………………27 9. Connect with Google Home ……………………………30 10. Cleaning ………………………… … … … …………………33 11.
Page 3: Specifications
What’s Included Your RENPHO Air Purifier box includes 1 x RENPHO Air Purifier(Filters Pre-Installed) 1 x User Manual Specifications Power Supply AC 120V 60Hz 50 W Rated Power Effective Range ≤ 301 ft² (≤ 28m²) Operating Conditions Temperature: 23°F~108°F(-5°C~42°C) Noise Level ≤...
Page 4 FCC CAUTION This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Page 5: Safety Information
Safety Information IMPORTANT: Please read and comply with all of the instructions and warnings provided in this manual before using the product. Failure to comply with the instructions and warnings provided herein may result in inaccurate results and/or damage to the product itself. Danger ●...
Page 6 ● Do not place anything on top of the appliance and do not sit on the appliance. ● Do not place the appliance directly below an air conditioner to prevent conden sation from dripping onto the appliance. ● Make sure all filters are properly installed before you switch on the appliance. ●...
Page 7: Product Structure
Product Structure RENPHO Air Thank you for purchasing the Purifier. Before using, please read this manual carefully.
Page 8: Control Panel
WiFi Indicator Status Fan Speed Button • Cycles through fan speeds: Air purifier is not configured low, medium, and high. with the RENPHO Smart • The fan speed cannot be is off app. To configure, see page changed during Auto or 11 .
Page 9: Before First Use
Before First Use The appliance comes with all filters fitted inside, but you have to remove the packag- ing of the filters before you can use the appliance. Remove all filters, unpack them and place them back into the appliance as described below. Tip: Place the appliance against a wall for more stability when you remove or insert filters.
Page 10 4. Put filter 4(HEPA filter), filter 3(Activated carbon filter), filter 2(Charcoal filter), filter 1(Pre-filter) back into the appliance. For more detail, see section "Filter replacement". Note: Make sure that the side with the tag is pointing towards you (Filter 4、3、2). 5.
Page 11: Using The Appliance
Using the Appliance 1. Put the plug in the wall socket All lights will turn on once and you hear a beep. Then the lights go out again. 2. Press the on/off button to switch on the appliance. The power light and FAN SPEED 1 (lowest) light will turn on.
Page 12 Tips : When the appliance is switched on, the fan speed is at the low level. AQI indicator Blue Yellow Color Fan Speed Speed 1 Speed 2 Speed 3 Auto To exit mode, just press the Speed button. The appliance will return to Auto manual control at fan speed 1and the mode light turns off.
Page 13: Renpho Smart App Setup
Download APP 1. Search and download "RENPHO Smart" app from Apple App Store / Google Play or scan the QR code below and follow the instruction to download the app. Note: For iPad download, please choose filters-support-iPhone only.
Page 14 1. Tap the Add Device button to add 2. Tap Air Purifier. your air purifier. 3. Plug in your air purifier. 4. Check Light Status. The WiFi indicator light should be rapidly blinking blue (2 blink per second), indicating that your air purifier is in default configuration mode. A.
Page 15 5. Follow the in-app instructions to connect to WiFi.
Page 16 6. Wait for the app to connect. This may take up to 90 seconds. 7. You’ve completed setup! Give your air 8. If you can’t connect, try Again in AP configuration mode. purifier a unique name, or simply use the default name.
Page 17 Configuration in AP Mode If Default Configuration Mode fails to connect your Air Purifier to your WiFi, you can use AP (Access Point) Mode. You can choose this mode at the beginning of setup. 1. Power off after 10s and then power on the device. 2.
Page 18 4.Follow the in-app instructions to connect to WiFi.
Page 19 Using the App From the “ My Home ” screen, tap to turn the air purifier on and off.
Page 20 A. Tap to turn the air purifier on or off. B. Tap Low, Mid, High or Auto to select the fan speed. C. Tap to set or cancel a timer. D. Tap Sleep to turn Sleep Mode on or off. E.
Page 21 Schedules 1.Tap Schedule. Then, tap Add Schedule to set a time options ,whether to display on or off and the mode details. 2. To delete a schedule, swipe left and tap Delete.
Page 22 Remaining Filter Life A. View different filters remaining life individually to clean or replace the appropriate filter. B. Once replaced, tap Reset Filter appropriately. C. If you need a new filter, tap Filter Purchase URL to see buying options. D. Tap Filter replacement instructions to see the filter installation video. Family Management If you have different air purifiers for different rooms, add more rooms in your home to control them individually.
Page 23 1.Tap My Home in the upper left corner to enter the Family Management. 2.Tap Room Management to add more rooms.
Page 24 3. Add more air purifier devices in your 4. Now you can control any air purifier RENPHO Smart app. (See page 12 ). in your home from anywhere. Device Settings To change any setting, tap on any of the text, icons, or symbols on the right in the upper right corner to enter the device settings page.
Page 25 Share Devices You can allow someone else to control your air purifier (such as family, friends, roommates, or anyone you choose). Note: People who you share your air purifier with cannot edit or delete any of your device settings. 1.Tap Share Device. 2.Tap Add Sharing.
Page 26 3.Type in the email of the user you want to share control of your air purifier with. The remove people who you have user must also have a RENPHO Smart shared your air purifier with. account. Then tap Done in the upper These people will no longer be right corner.
Page 27 1. Delete the air purifier from the 2. Press "Lock" + "AQ" buttons and hold RENPHO Smart app. for 5 seconds until the WiFi light starts blinking. Then the air purifier has been reset and deleted from the RENPHO Smart app.
Page 28: Connect With Alexa
Connect with Alexa Note: You must create a RENPHO Smart account to connect with Alexa. Step 1: Open your Alexa app, tap the menu icon, and go to the Skill section. Step 2: Search for Smart Life. Step 3: Tap to enable skill.
Page 29 Step 4: Enter your RENPHO Smart account information and choose RENPHO Smart to link the skill. Step 5: Tap Authorize to connect to Alexa.
Page 30 Step 6: Tap Discover Devices. Alexa will search for your RENPHO Smart devices. Step 7: Your enabled devices should appear on your Smart Home page. Step 8: Set a unique name for your device to help with voice control. Use the name...
Page 31: Connect With Google Home
Connect with Google Home Note : You must create a RENPHO Smart account to connect with Google Home. Step 1: Launch the Google Home app and tap in the menu icon, then go to Home Control. Step 2: Tap "+" to all new devices. And Search for Smart Life.
Page 32 Step 3: Enter your RENPHO Smart account information and tap Authorize to connect to Google Home. Step 4: Your enabled devices should appear on your Smart Home page. Step 5: Set a unique name for your device to help with voice control. Use the name...
Page 33: Cleaning
Cleaning ● Always unplug the appliance before you clean it. ● Never immerse the appliance in water or any other liquid. ● Never use aggressive or flammable cleaning agents such as bleach or alcohol to clean any part of the appliance. ●...
Page 34 3) Clean the air quality sensor , the dust inlet and the dust outlet with a lightly moistened cotton swab. 4) Dry them with a dry cotton swab. 5) Reattach the air quality sensor cover. 3. Pre-filter Note: Filter light 1 flashes: Filter 1(pre-filter) needs to be cleaned.
Page 35 3) To remove the pre-filter, grab the two projections at the top and pull the filter towards you. (c) 4) Wash the pre-filter under a running tap. If the pre-filter is very dirty, use a soft brush to brush away the dust. (d) Tip: Alternatively, you can clean the pre-filter by removing the dust with a vacuum cleaner.
Page 36: Filter Replacement
Filter Replacement When one of the filters is almost full and has to be cleaned or replaced, the appropriate filter replacement light starts to flash. Filter light 2 flashes: Filter 2(Charcoal filter) needs to be replaced. We suggest replacing the charcoal filter every 6 months. Normally, light 2 flashes after running 6 months.
Page 37 4) To remove the filter 2 (charcoal filter) which is fixed by velcro with filter 3, just tear it off and replace the new charcoal filter. (d) 5) To remove the filter 3 (activated carbon filter), grab its tag and pull it towards you, then replace the new activated carbon filter.
Page 38 3. Filter Replacement Force Mode If you use the appliance in an environment with more pollution, you can replace these filters even if the light does not flash. The filter replacing method is the same. To force reset the filter ’s lifetime: 1) Power plugged and turn off the appliance, press and hold for 5 seconds and the filters light...
Page 39: Troubleshooting
Troubleshooting This chapter summaries the most common problems you could encounter with the appliance. If you are unable to solve the problem with the informa- tion below, contact us directly via e-mail at: support@renpho.com or phone: 1(844)417-0149. Problem Possible cause...
Page 40 1. Make sure your router is connected to the internet, and your phone’s network connection is working properly. 2. Delete the offline air purifier from the RENPHO Smart app. 3. Reset the air purifier by pressing "Lock" + "AQ" buttons and My air purifier is offline.
Page 41: Warranty Information
Warranty Information RENPHO provides 1-Year warranty for all products to be of the highest quality in material, craftsmanship, and service, effective starting from the date of purchase. Terms & Policy RENPHO will replace any product found to be defective due to manufacturer flaws based on eligibility.
Page 42 JOICOM CORPORATION 165 E. Freedom Ave., Anaheim, California, 92801, United States Email: support@renpho.com Tel: 1-844-417-0149 Web: www.renpho.com Support Hours Monday - Friday: 9:00 am - 4:30 pm PST *Please have your order number ready before contacting customer support.
