Summary of Contents for Linear Security LSE.CD700VAR

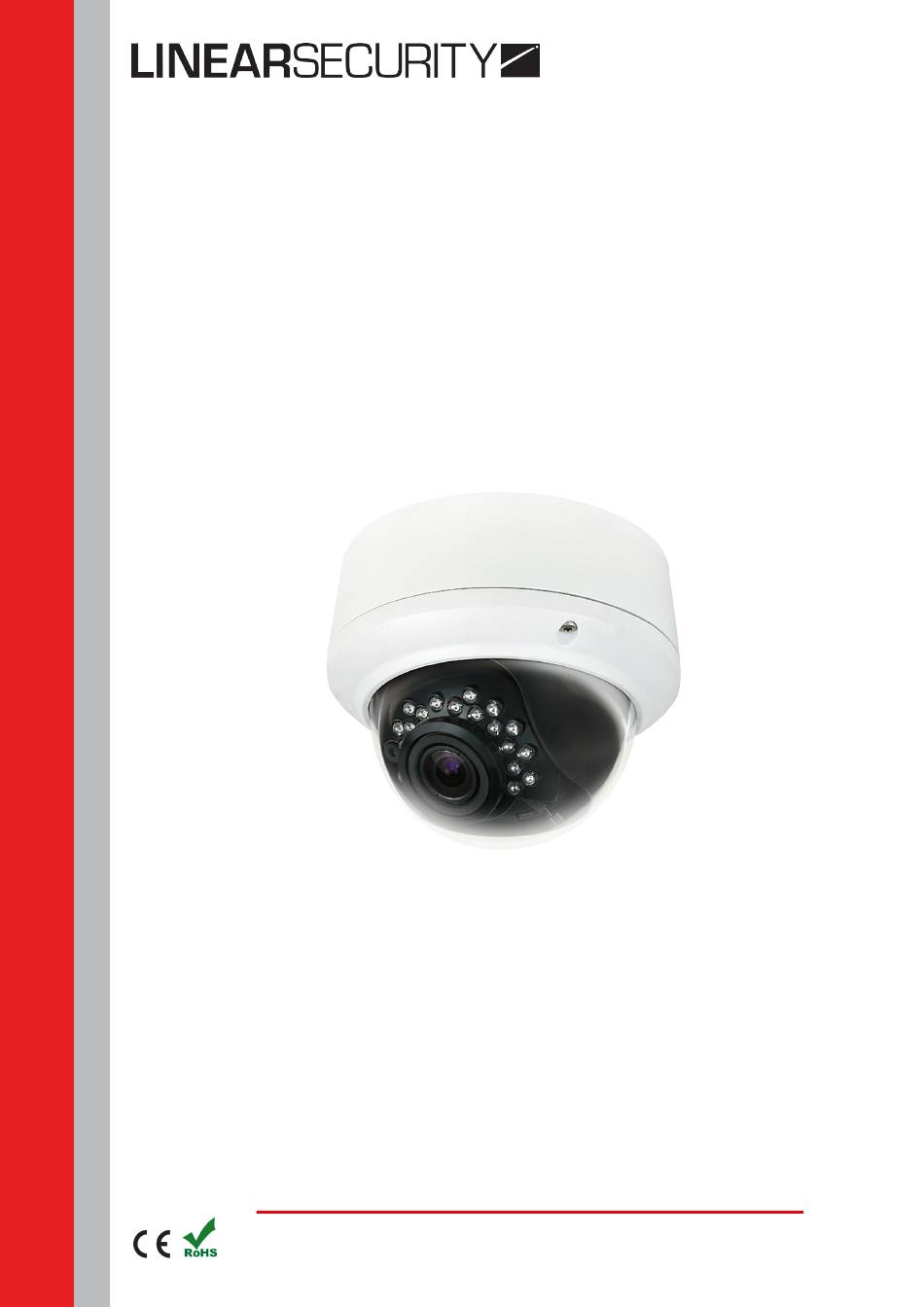

- Page 1 DOME CAMERA 700 TVL LSE.CD700VAR Operation manual Linear Technologie • 11 rue du Puits Rochefort • 42 100 Saint-Etienne V.2017 Tél: +33 (0)4 77 81 49 49 • Fax: +33 (0)4 77 81 49 40 • www.lineartech.fr...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page 4 1. Specifications Page 4 2. Dimensions 3. Pack content Page 5 4. Installation Page 5 5. Camera adjustment Page 7... - Page 3 TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning with an arrowhead symbol, within an equilateral triangle is intended to alert the users to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be suffcient magnitude to constitute a risk of electric shock to persons.
-
Page 4: Specifications
1. SPECIFICATIONS Sensor 8.5mm (1/3’’) SONY CCD Objectif 2.8-12mm Varifocal Day/Night Lens Technology Advanced Digital Noise Reduction (DNR) Shadow Reduction (ATR) Menu OSD Menu Control Hiding Privacy Masking / Motion Detection Output Video (BNC) Power supply 12V DC or 24V AC (option) LEDS 21 LEDs IR 850nm Power supply... -
Page 5: Pack Content
3. PACK CONTENT 3 screws 70mm 3 screws 30mm 3 plug 04mm Camera in housing........1 RCA - BNC test cable......1 Camera Locking screw (PM3 Type)... 1 PMounting screw pack......1 Instruction guide (This Document)..... 1 Star Shape Dome Cover Tamper key..1 Surface Mounting Template....... - Page 6 a ) Remove camera cover by squeezing the back and front of the cover as indicated by the “PRESS” indicators at the same time and lifting it up and away from the lens. b ) Insert the included video test cable into the RCA jack and connect to test monitor to set up camera.
-
Page 7: Camera Adjustment
5. CAMERA ADJUSTMENT... - Page 8 OSD MENU control Press down on the function joystick to access the setup menu. SETUP MENU Select a function by moving the joystick up and down and move left or right to change setting value and press joystick to confirm selection. If a menu option features a , a sub menu is available which can be accessed by pressing down on the joystick.
- Page 9 AUTO SETUP HIGH LUMINANCE MODE : SHUT BRIGHTNESS: 000 - 255 Default setting is 32 MODE : SHUT (FERMé) + AGC SHUTTER : 1/60 1/120 1/250 1/500 1/1000 1/2000 1/4000 1/10000. Shutter speed in fractions of a second. Default setting is 1/60 AGC : 6.00 / 12.00 / 18.00 / 24.00 / 30.00 / 36.00 / 42.00 / 44.80 - AGC value in [dB] Default setting is 6.00 WHITE BAL...
- Page 10 ANTI CR MANUEL ATW LEVEL (niveau) 0 - 255 Specifies the R and B gain values for manual WB. Default setting is 58 Picture and display control settings MIRROIR : ON / OFF Horizontally flip the display output BRIGHTNESS : 000 - 255 Screen brightness CONTRAST : 000 - 255 Screen contrast SHARPNESS : 000 - 255 Screen sharpness HUE : 000 - 255 Adjust the hue...
- Page 11 BACKLIGHT OFF / BLC / HLC - OFF : Backlight compensation OFF - BLC : Backlight compensation ON - HLC : High light compensation ON SHADOW REDUCTION (ATR) This function compensates for darker areas surrounding the object to provide naturally sharp picture and improves contrast in bright/dark areas.
- Page 12 Linear Technologie • 11 rue du Puits Rochefort • 42 100 Saint-Etienne Tél: +33 (0)4 77 81 49 49 • Fax: +33 (0)4 77 81 49 40 • www.lineartech.fr...
