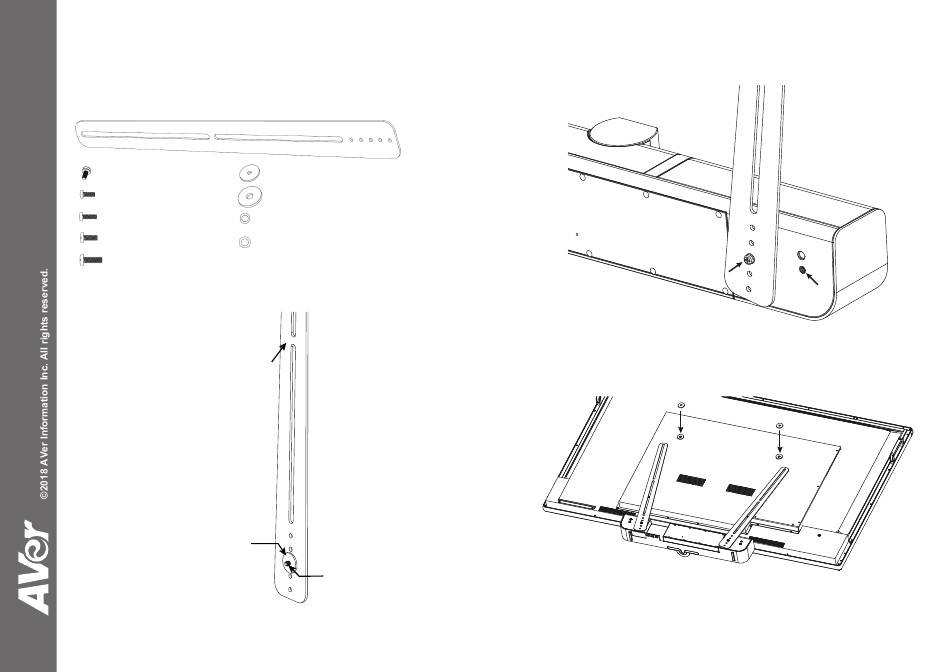

TV Mount Installation Guide
Package Contents
Screw(M5*10) x 2
Screw(M6*15) x 4
Screw(M6*20) x 4
Screw(M8*20) x 4
Screw(M8*30) x 4
(1)
Fix the screw(M5*10) with silicone washer in suitable
holes(1~5).
Silicon washer
Fixture x 2
Silicone washer x 2
Metal washer x 2
Washer(M6) x 4
Washer(M8) x 4
Fixture
Screw(M5*10)
(2)
Secure the fixture which has completed step 1 on the left side
fix hole or right side fix hole. Don't screw tight.
Place the metal washers on the mount holes of TV.
(3)
[Note] If the user does not need to install the mount rack of
TV, just skip step 3 to 5 and go to step 6.
Advertisement
Table of Contents
Summary of Contents for AVer 26AV-VB342-TVM
- Page 1 TV Mount Installation Guide Secure the fixture which has completed step 1 on the left side fix hole or right side fix hole. Don’t screw tight. Package Contents Fixture x 2 Screw(M5*10) x 2 Silicone washer x 2 Screw(M6*15) x 4 Metal washer x 2 Screw(M6*20) x 4...
- Page 2 Place mount rack of TV on top of fixture. If the user doesn’t need to install mount rack of TV, then, secure the fixture on the TV. Then, adjust the fixture to an appropriate position if needed. Finally, screw tight all screws. The device can be mounted on top of the TV or bottom of TV.
