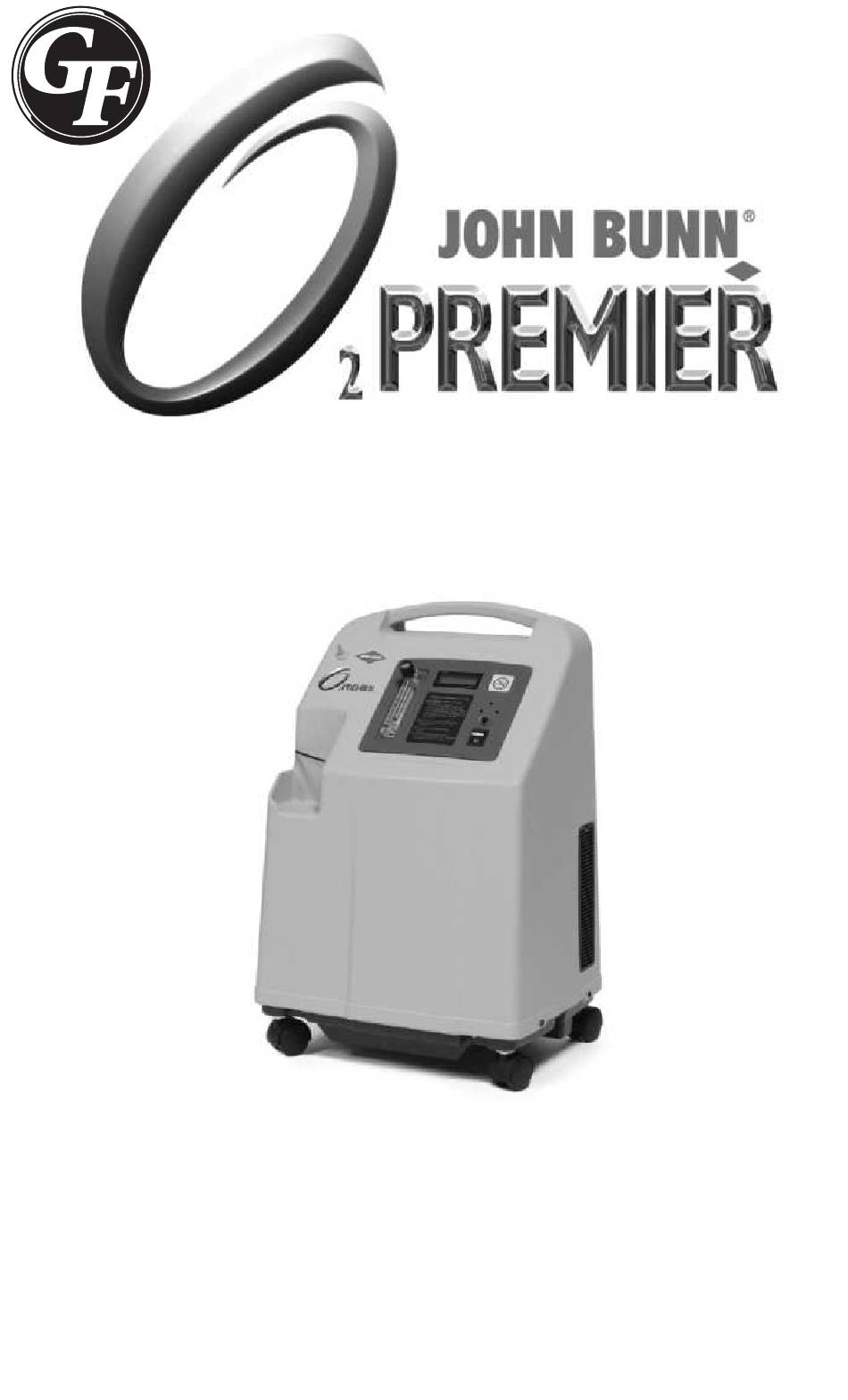

Oxygen COnCentratOr
User ManUal
Model numbers JB0160-010/JB0160-010-220
and
JB0160-015/JB0160-015-220 with O
sensor
2
Important: Do not operate this concentrator without
first reading and understanding this manual!
save this manual for future use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the John Bunn O2 Premier JB0160-010 and is the answer not in the manual?

Questions and answers

Summary of Contents for GF John Bunn O2 Premier JB0160-010

  • Page 1 ® Oxygen COnCentratOr User ManUal Model numbers JB0160-010/JB0160-010-220 JB0160-015/JB0160-015-220 with O sensor Important: Do not operate this concentrator without first reading and understanding this manual! save this manual for future use.

  • Page 2: Table Of Contents

    Radio frequency Interference ............. 5 additional safety Warnings ............6  featuRes ................8 summary..................8 Characteristics ................8 3 HandlIng ................9 gf Health Products, Inc. freight Policy ........9 unpacking ..................9 Inspection ..................10 storage ..................10 4 OPeRatIOn and InstallatIOn ........11 Preparing the Concentrator ............11 turning the Concentrator On ............. 1 turning the Concentrator Off.............

  • Page 3: Safety

    WARNING: Users who require continuous oxygenation must plan for alternate reserve sources of power and oxygen in the event of a failure or loss of power and oxygen. This device is to be used ONLY as an oxygen supplement device and is NOT intended to be a life- supporting or life-sustaining device.

  • Page 4: Placement

    Damage: The oxygen concentrator cabinet contains no serviceable parts! The oxygen concentrator cabinet should ONLY be opened by an authorized equipment provider. Placement ATTENTION: The oxygen concentrator is intended to be rolled from room to room. Do not place the oxygen concentrator in surroundings where its airflow is obstructed.

  • Page 5: Maintenance

    WARNING: To reduce the risk of fire, special care must be taken when using oxygen concentrators. DO NOT SMOKE while using this device. Keep all matches, lighted cigarettes or other sources of ignition out of the room in which this concentrator is located. In public settings or when used in hospital or long-term care environments, prominently display NO SMOKING signs.

  • Page 6: Additional Safety Warnings

    additional safety Warnings WARNING: TO REDUCE THE RISK OF BURNS, ELECTROCUTION, FIRE OR INJURY TO PERSONS, avoid using while bathing. If continuous usage is required by the direction of a physician, the concentrator must be located in another room at least 9 feet (2.8m) from the bath.
  • Page 7 ATTENTION: ALWAYS supervise closely when this product is used near children or those who require close supervision. ATTENTION: Only use this device as intended and described in this manual. ATTENTION: DO NOT use parts, accessories or adapters other than those authorized by manufacturer. ATTENTION: DO NOT connect the concentrator in parallel or series with other oxygen concentrators or oxygen therapy devices.

  • Page 8: Features

     featuRes summary The John Bunn O Premier oxygen concentrator is intend- ed for use as an oxygen supplement device in a home or care facility. Use the concentrator only as prescribed by a physician. The concentrator separates oxygen from ambient air, providing the user a high concentration of oxygen.

  • Page 9: Handling

    3 HandlIng gf Health Products, Inc. freight Policy for your Protection, Read Carefully The carrier accepted this merchandise “in good condition” and is responsible for safe delivery. Before signing the freight bill, inspect the shipment care- fully for damage or missing pieces. Apparent Loss or Damage Should visual inspection show loss or damage, this MUST be noted on the freight bill and signed by the carrier’s...

  • Page 10: Inspection

    Inspection Examine exterior of the oxygen concentrator for nicks, dents, scratches or other damages. Inspect all compo- nents. storage Store the repackaged oxygen concentrator in a dry area. DO NOT place anything on top of the repackaged concen- trator. John Bunn O Premier Oxygen Concentrator...

  • Page 11: Operation And Installation

    4 OPeRatIOn and InstallatIOn Preparing the Concentrator (refer to above picture) 1. Unscrew the humidifier bottle cover, if so equipped (hu- midifier bottle is optional). 2. Fill the humidifier bottle with purified water (or dis- tilled water) between the maximum and minimum water level lines. If needed, add medication to the water, as prescribed by physician.

  • Page 12: Turning The Concentrator On

    trator’s AC connector into a properly grounded power outlet. turning the Concentrator On 1. Press the power switch to start the concentrator. There will be a brief delay before the concentrator starts. The alarm system emits a tone of one second duration, the word HELLO appears on the hour meter LED panel, and the green power indicator light illuminates.

  • Page 13: Maintenance

    5 MaIntenanCe Cleaning the Cabinet Clean the cabinet at least once a month. 1. Turn off the power switch. 2. Clean the cabinet with a mild household cleaner and a non-abrasive cloth or sponge. Do not spill liquid inside the cabinet. Cleaning or Replacing the filters (3 types) Clean or replace the filters as often as specified in the following paragraphs in order to protect the compressor and extend the concentrator’s life.
  • Page 14 Side filters Note: For earlier models only, you will need a small blade screwdriver to open the side filter access door. For later models, the filter grill simply pulls out. If this operation is too difficult for you to perform, please contact your equipment provider to perform this for you. Clean the side filters weekly. There are two side filters, one located on each side of the concentrator cabinet. Perform the following steps on both side filters. 1. Turn off the power switch and unplug the concentra- tor’s AC connector from the power outlet.

  • Page 15: Cleaning The Optional Humidifier Bottle

    • A wood stove is used • Kerosene or oil is used • Pets are present • Tobacco is used Intake filter Note: Please have your Graham-Field equipment provider replace the intake filter. This operation requires opening the intake filter access door. Replace, do not clean, the intake filter annually (or more often, if the intake filter turns black). The frequency of re- placement depends on usage and condition of the environ- ment where the concentrator is used.

  • Page 16: Troubleshooting Guide

    6 tROuBlesHOOtIng guIde syMPtOM CHeCK / aCtIOn Concentrator power is Check if concentrator is unplugged; plug in. on and alarm is on, but concentrator doesn’t Check if circuit breaker is tripped; fix circuit work breaker. If concentrator still doesn’t work, contact graham-field equipment provider. syMPtOM CHeCK / aCtIOn Concentrator works, Inspect tubes and cannula to ensure that they are but little or no oxygen not kinked or blocked. smooth tubes to unblock. from outlet Check humidifier bottle, if so equipped, for leaks or jamming. Give humidifier bottle a slight shake to open safety valve.
  • Page 17 syMPtOM CHeCK / aCtIOn Concentrator doesn’t, discontinue use; contact graham-field equipment work; alarm sounds; provider immediately. Oxygen concentration is too optional O sensor red low for safe use. warning light illuminates (JB0160-015/ JB0160-015-0 only) Note: If you experience a problem with your concentrator and are unable to service it yourself, contact the equipment provider from whom you purchased the concentrator. If the equipment provider is unable to help you, contact Graham-Field’s Customer Service Department at 800-347-5678. John Bunn O Premier Oxygen Concentrator...

  • Page 18: Bill Of Materials

    7 BIll Of MateRIals Your concentrator includes the following components: • Oxygen concentrator (one each) • User manual (one each) • Humidifier bottle hose (one each) • Humidifier bottle adapter (one each) The concentrator comes with one bottom filter, two side filters, and one intake filter already installed; Model No. JB0160-015/JB0160-015-220 comes with one O sensor al- ready installed.

  • Page 19: Specifications

    8 sPeCIfICatIOns • Flow Range: 1 to 5L/min • Oxygen Concentration: 1-4 LPM 94% ± 2% 5 LPM 92% ± 2% • Maximum Outlet Pressure: 6.52 psi ± .065 psi (45kPa ± 4.5kPa) • Pressure Relief Mechanism Operational at: 36.26 psi ± 3.63 psi (250kPa ± 25kPa) •...

  • Page 20: Limited Warranty

    If within such warranty period any such product shall be proven to GF Health Products, Inc.’s satisfaction to be defec- tive, such product shall be repaired or replaced, at GF Health Products, Inc.’s option. This warranty only applies to the labor for repairs performed by the authorized Equipment Pro- viders.
  • Page 21 (30) days of the return autho- rization date. Do not return products to GF Health Products, Inc. or its Authorized Equipment Providers, without prior consent. C.O.D. shipments will be refused. All return ship- ments must prepay shipping charges, unless otherwise au- thorized by GF Health Products, Inc.

  • Page 22: Index

    10 Index ATTENTION, significance 3 Radio Frequency Interference (RFI) 5 Replacement parts and op- Before installation, safety 3 tional accessories 18 Bill of materials 18 Replacing the battery 15 CAUTION, significance 3 Safety 3 Cleaning the cabinet 13 Safety warnings, additional 6 Specifications 19 Storage 10 Damage, significance 3, 14...
  • Page 23 nOtes John Bunn O Premier Oxygen Concentrator...
  • Page 24 • Receive updates with product information, mainte- nance tips, and industry news. • GF Health Products, Inc. can contact your or your pro- vider, if servicing is needed on your product. • It will enable GF Health Products, Inc. to improve prod- uct designs based on your input and needs.
  • Page 25 11. User’s year of birth:_______________ If at any time you wish not to receive future mailings from us, please contact us at GF Health Products, Inc., 2935 Northeast Parkway, Atlanta, GA 30360, 800-347-5678 To find more information about our products, visit www.grahamfield.com...
  • Page 26 Affix first-class postage here GF Health Products, Inc. 2935 Northeast Parkway Atlanta, GA 30360...
  • Page 28 USA, Corporate Headquarters: Graham-Field Health Products 2935 Northeast Parkway Atlanta, Georgia 30360 telephone: 800-347-5678, 770-447-1609 fax: 800-726-0601, 678-291-3232 http://www.grahamfield.com GF0600004RevF06 ©GF Health Products, Inc. printed in China John Bunn, O2 Premier, GF, and Graham-Field are registered trademarks of GF Health Products, Inc.
