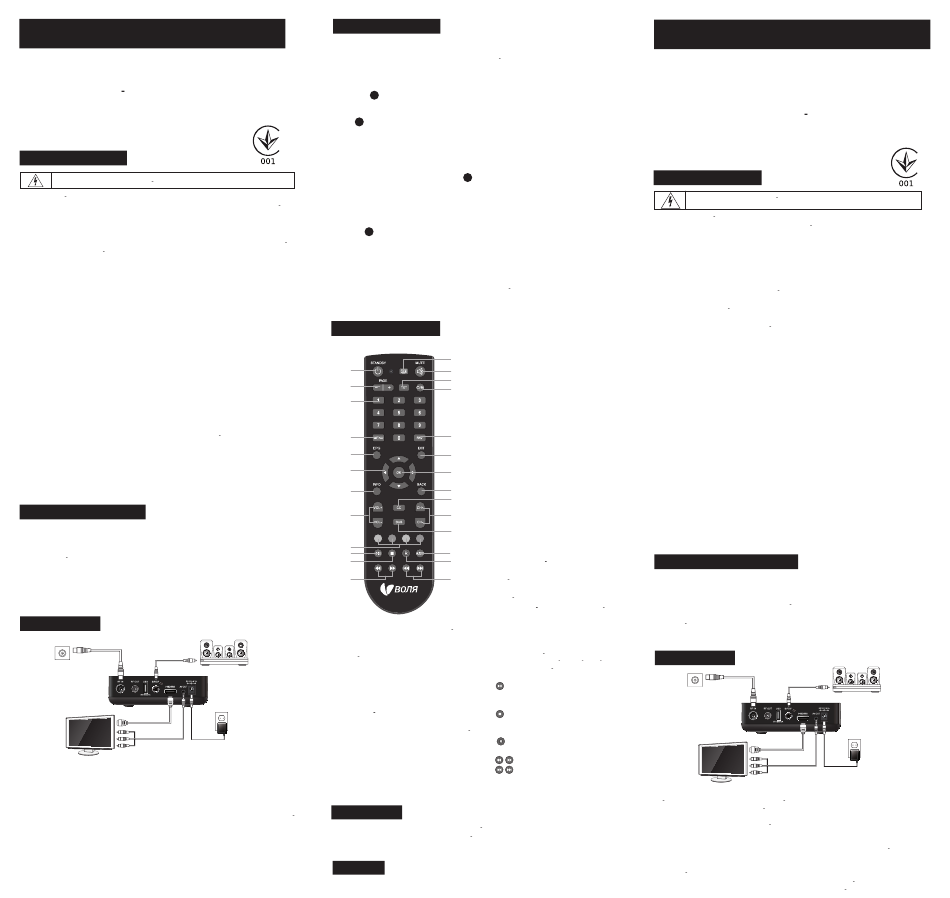

USER MANUAL
Please carefully read this user manual to
ensure proper use of the device.
DIGITAL CABLE SET TOP BOX DCD7304
Manufacturer: AccessHD Limited
Address: Room 4304 China Resources Building, 26
Harbour Road, Wan Chai, Hong Kong
Shelf life: 3 years
Safety information
Removing the cover of the set top box may lead to a severe electric shock.
This digital set top box has been manufactured to meet international safety standards.
However, safety precautions must be followed to ensure the safe and reliable opera
tion of the device.
Please take note of the following guidelines to avoid the risk of an electric shock:
This device operates with an electrical power supply in the range of 100 to 240V AC,
50/60 Hz. Use a standard AC wall outlet; a DC power source cannot be used. Remem
ber that contact with a 110 240 Volt AC power supply can be lethal.
Ensure that all electrical connections are properly made before connecting the device
to the power supply (the mains). Always unplug the device before connecting or
disconnecting any cables.
Whenever you connect the device to the power supply (the mains), always connect the
power lead to the power input connector on the rear panel of the device before you
connect the power socket to the wall outlet.
Whenever you disconnect the device from the power supply (the mains), always
remove the power socket from the wall outlet before you remove the other end of the
lead from the power input connector on the rear panel of the device.
Batteries shall not be exposed to excessive heat such as sunshine, fire or the likes.
Be extremely careful if this device is in contact with water. Immediately disconnect the
power socket if possible.
This device shall not be exposed to dripping or splashing and no objects filled with
liquids shall be placed on the device.
Where the mains plug or an appliance coupler is used as the disconnect device, the
disconnect device shall remain readily operable.
DO:
√
Unplug the device and have it checked by a qualified technician if anything falls
into the casing.
√
Allow adequate air circulation to prevent internal heat build up. Do not place the
device next to a radiator or any heat source and make sure that the air vents are
not covered.
DO NOT:
×
Expose the device to extreme temperatures, direct sun light or high humidity.
×
Place any object on top of the device in order to facilitate air circulation.
×
Place the device on fabric furnishings, carpets or other flammable materials.
Technical specification
•
Ali M3715P processor
•
High definition
•
Conax Conditional Access
•
Fully DVB C compliant
•
Constellation: 64, 128, 256 QAM
•
DVB Subtitles and teletext
•
Parental Access Control
•
Ukrainian, Russian, English,
Connection
Connect to Cable Outlet
Audio System
Cable Outlet
HDMI Cable
RCA Cable
Step 1: Connect the cable, providing the Volia Cable feed, to the "RF IN" on the back of
DCD7304 Cable STB using an IEC connector.
Step 2: Connect the DCD7304 Cable STB and your TV by using the RCA or HDMI cable
(supplied with DCD7304), connected to the RCA or HDMI connector on the back of the
DCD7304.
Step 3: Remove the battery cover from the remote control and insert the 2 x AAA batter
ies provided with the DCD7304 Cable STB into the battery compartment.
Step 4: Connect the supplied power adaptor to the "DC IN" on the DCD7304 Cable STB
and plug the adaptor in the wall socket. Turn your TV ON. You will see the light indicator
appeared on the front panel of the DCD7304 tuner. TV will display Volia logo and first
installation menu at the screen.
Quick start guide
Initial setup:
Step 1: The first time you power on the DCD7304 set top
box, you will be invited to select your preferred language,
time zone and TV shape. Use the
keys on the remote control to make your selection and
then press
.
OK
Step 2: To enter the Channel Search menu, select
"Search" by using the
press
.
OK
Step 3: Once entered the Channel Search menu, press
red colored button on the remote control to start auto
search .
Step 4: On completion of channel search you can exit the
menu and system will display the first channel found. You
can exit the process anytime by pressing
remote control.
To set up channels after the initial setup, please refer
to the details below:
Press the
button on the remote control to enter Main
MENU
Menu. Use the ► button to select Search Menu. You have
three options for channel search: Auto Search, Manual
Search and Network Search.
Note: You have three options for the channel search, the
default channel search mode is "Network", this is recom
mended.
Remote control
1
4
7
8
10
12
14
16
20
21
22
25
1.
POWER – press to switch the set top
box to standby mode. To completely
switch the power off, disconnect the
set top box from the power supply.
2.
16:9 – press to set your Television
ratio.
3.
MUTE – press to mute the volume.
Press this key again to restore the
volume.
4.
Page+/ – press to navigate to the
next/previous page.
5.
TXT – press to display teletext informa
Adaptor
tion.
6.
TV/RADIO – press to switch between
TV and radio mode.
7.
Numeric keys (0...9) – press to select
channels in the program view mode
and to input numbers in the menu.
Service terms
Do not attempt to repair or reconstruct the set top box yourself, as serious electric shock
may occur. Unauthorized changes to the set top box lead to void warranty. If an operational
problem occurs, an authorized service technician must be consulted to address the problem.
Warranty
12 months from date of purchase.
▲,▼ ,
◄ and ► arrow
▼
button on the remote control and
button on the
EXIT
2
8.
MENU – press to display main menu
or to return one step back in the
3
submenu.
5
9.
FAV – press to display the favorite list
6
menu.
10. EPG – press to display the electronic
program guide.
11. EXIT – press to completely exit from
the menu.
9
▲ ▼
◄ ► – press to navigate up
12.
and down, left and right and to select
11
submenus.
13. OK – press to move to the additional
13
menu of the selected item or to confirm
the selected parameter. Press to
15
display channel list for quick navigation
17
in the program view mode.
14. INFO – press to display the channel
19
information and see information on the
18
following two programs.
15. BACK – press to return to the previous
channel.
24
16. VOL+ and VOL – press to regulate
23
volume.
26
17. CC press to select close captions (not
supported at the moment).
18. SUB press to select subtitles.
19. CH+ and CH – press to switch be
tween channels.
20. Color buttons: Different purpose in
different menu. If use description in
each menu.
A: RED BUTTON
press to select between
audio mode STEREO MONO LEFT RIGHT.
B: GREEN BUTTON
press to PAUSE in
channel play mode .
21.
– press this key to start Time shift.
Or use this button for start / pause of
recorded file and multimedia file.
22.
– press to stop record program,
or to stop play a recorded file and
multimedia file.
23.
– press to record program.
24. AUDIO – press to select audio track.
25.
– fast forward / backward.
26.
– press to switch to previous/
next file when play recorded file and
multimedia file.
ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ
Уважно прочитайте цю інструкцію з
експлуатації, щоб пересвідчитися у
тому, що ви вірно розумієте правила
експлуатації пристрою.
ЦИФРОВИЙ КАБЕЛЬНИЙ ТВ ТЮНЕР DCD7304
Виробник: АксессХД Лімітед
Адреса: Гонконг, Ванчай, Харбор Роуд 26, Чайна
Ресорсес Білдінг, офіс 4304
Термін придатності: 3 роки
Правила безпеки
Не відкривати кришку ТВ тюнера – це може призвести до
серйозного ураження електричним струмом.
Цей цифровий ТВ тюнер був виготовлений відповідно до міжнародних стандартів
безпеки. Для забезпечення надійної роботи ТВ тюнера дотримуйтесь заходів
безпеки в експлуатації пристрою.
Щоб уникнути ураження електричним струмом, дотримуйтесь наступних
рекомендацій:
Цей пристрій працює від мережі з напругою від 100 до 240В, 50/60Гц. Для
живлення пристрою використовуйте стандартну розетку. Не використовуйте
джерело постійного струму для живлення пристрою. Пам'ятайте, що ураження
електричним струмом від мережі 110 220В може закінчитися летальним
результатом.
Перед включенням ТВ тюнера в мережу живлення переконайтеся, що всі
підключення виконані вірно. Завжди відключайте живлення пристрою перед тим,
як підключити або відключити будь які кабелі.
При підключенні пристрою до джерела живлення завжди підключайте блок
живлення до роз'єму на тильній панелі пристрою перед підключенням блоку
живлення до джерела живлення.
При відключенні пристрою від джерела живлення завжди відключайте блок
живлення від джерела живлення перед відключенням блоку живлення від роз'єму
на тильній панелі пристрою.
Батарейки не повинні піддаватися надмірному впливу тепла.
Не допускайте потрапляння вологи на корпус пристрою. Якщо це сталося, негайно
вимкніть блок живлення від мережі.
Пристрій не повинен бути під впливом крапель або бризок рідин. Не допускайте,
щоб на пристрої стояли предмети, наповнені водою.
Шнур живлення і штепсельна розетка повинні залишатися легкодоступними.
ВІРНО:
√
Вимкнути пристрій і звернутися за допомогою до кваліфікованого фахівця,
якщо всередину корпусу пристрою потрапив сторонній предмет.
√
Забезпечити достатню вентиляцію пристрою для уникнення перегріву. Не
розміщуйте пристрій поряд з батареями опалення або іншими джерелами
тепла. Не блокуйте вентиляційні отвори пристрою.
НЕВІРНО:
×
Піддавати пристрій впливу прямих сонячних променів, високих температур і
високої вологості.
×
Розміщувати сторонні предмети на корпусі пристрою.
×
Розміщувати пристрій на легкозаймистих поверхнях (килимах, скатертинах
тощо).
Технічні характеристики
•
Процесор Ali M3715P
•
Висока роздільна здатність
•
Модуль системи умовного доступу Conax
•
Повна сумісність зі стандартом DVB C
•
Констеляція: 64, 128, 256 QAM
•
DVB субтитри і телетекст
•
Батьківський контроль
•
Мови меню: українська, російська, англійська
Підключення
Connect to Cable Outlet
Audio System
Cable Outlet
HDMI Cable
RCA Cable
Крок 1: Під'єднайте кабель телемережі ВОЛЯ до роз'єма RF IN на тильній панелі
ТВ тюнера DCD7304 за допомогою IEC конектора.
Крок 2: Підключіть кабельний ТВ тюнер до телевізора за допомогою кабелю типу
RCA чи HDMI (входить у комплект): одним кінцем – до відповідних роз'ємів AV
OUT або HDMI на тильній панелі ТВ тюнера, а іншим – до роз'ємів RCA чи HDMI
телевізора.
Крок 3: Відкрийте кришку батарейного відсіку з тильного боку пульта дистанційного
керування і вставте 2 батарейки типу AAA, що входять до комплекту ТВ тюнера
DCD7304.
Крок 4: Підключіть блок живлення (входить у комплект) до роз'єма DC IN на тильній
панелі ТВ тюнера DCD7304 і вставте блок живлення в розетку. Увімкніть телевізор.
Вы увидите световой индикатор на фронтальной панели ТВ тюнера. На екрані
телевізора з'явиться лого Воля і початкові налаштунки ТВ тюнера DCD7304.
Adaptor
