7. S
PECIFICATION
Model
Output Power
Input Voltage / Frequency
Output Voltage Range (AC mode)
Output Voltage and Frequency (Battery mode)
Transfer Time
Battery Voltage
Charging Current
Output Waveform (Battery mode)
Operation Temperature
Operation Humidity
Overload alarm
Dimensions
Net Weight

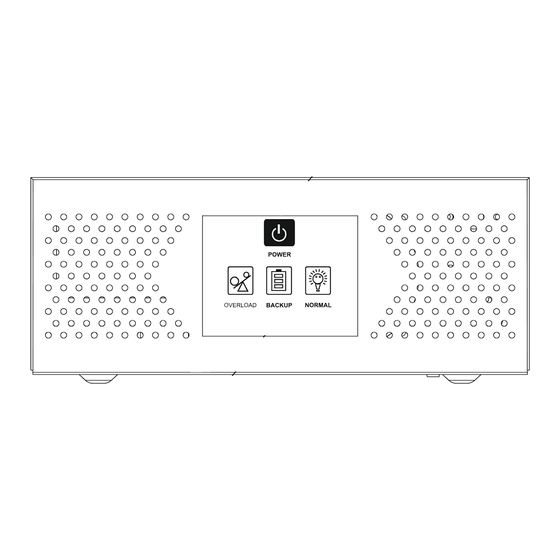

8. F
P
RONT
ANEL
1
2
9. B
ACK VIEW
CO-SinusUPS-400W
500VA/400W
155 ÷ 290VAC ± 7VAC; 50Hz
200 ÷ 250VAC ± 7VAC
220VAC ± 10VAC / 50Hz
max. 10ms
12VDC
max. 6A
Sine Wave
0 ÷ 40°C
30 ÷ 95%
460W ± 50W
206 x 246 x 104mm
6kg
1. Main control button.
2. LEDs of operation status.
1. Power cord.
2. Breaker
3. Battery Connector (12VDC)
4. Output Socket
5. Cooling Fan
4
SINE WAVE INVERTER
CO-SinusUPS-400W
MODEL:
A
:
PPLICATIONS
Heating and warm utility water systems,
solar systems, household appliances such as Home Theater,
TV, VCD, DVD, Lamp, Fan, etc.
U
SER
Please read and save this manual!
This manual is an important instruction that you should follow during
installation and maintenance of the inverter. Please read all instructions
before using the equipment and save this document for future reference.
CO-sinusUPS-400W-manual-R3, 20.03.10
M
ANUAL
1
Advertisement
Table of Contents
Summary of Contents for Adler Power CO-SinusUPS-400W
- Page 1 This manual is an important instruction that you should follow during 3. Battery Connector (12VDC) installation and maintenance of the inverter. Please read all instructions 4. Output Socket before using the equipment and save this document for future reference. 5. Cooling Fan CO-sinusUPS-400W-manual-R3, 20.03.10...
- Page 2 1. I NTRODUCTION Blue LED Red Dioda LED Yellow Dioda LED Alarm / Mode Status NORMAL BACKUP OVERLOAD This product is an advanced line-interactive pure sine wave inverter that provides backup power for your equipment. Buzzer Unlike the traditional off-line inverter, this series is also characterized by low harmonic distortion and has a very short transfer time when the input AC fail occurs.
- Page 3 Niniejszy dokument jest instrukcją, której należy przestrzegać w trakcie 3. Złącze akumulatora (12VDC) instalacji i użytkowania urządzenia. Zapoznaj się z zawartymi w niej informacjami 4. Gniazdo wyjściowe przed uruchomieniem urządzenia i zachowaj niniejszą instrukcję do wykorzystania w przyszłości. 5. Wentylator CO-sinusUPS-400W-manual-R3, 20.03.10...
- Page 4 1. W PROWADZENIE Niebieska Dioda Czerwona Dioda Żólta Dioda LED Alarm Tryb pracy Status NORMAL BACKUP OVERLOAD Niniejsze urządzenie to zaawansowany inwerter liniowy, z przebiegiem wyjściowym w postaci czystej sinusoidy. W dźwiękowy przeciwieństwie do tradycyjnego inwertera off-line, zapewnia również niskie zniekształcenia harmoniczne i charakteryzuje się...
