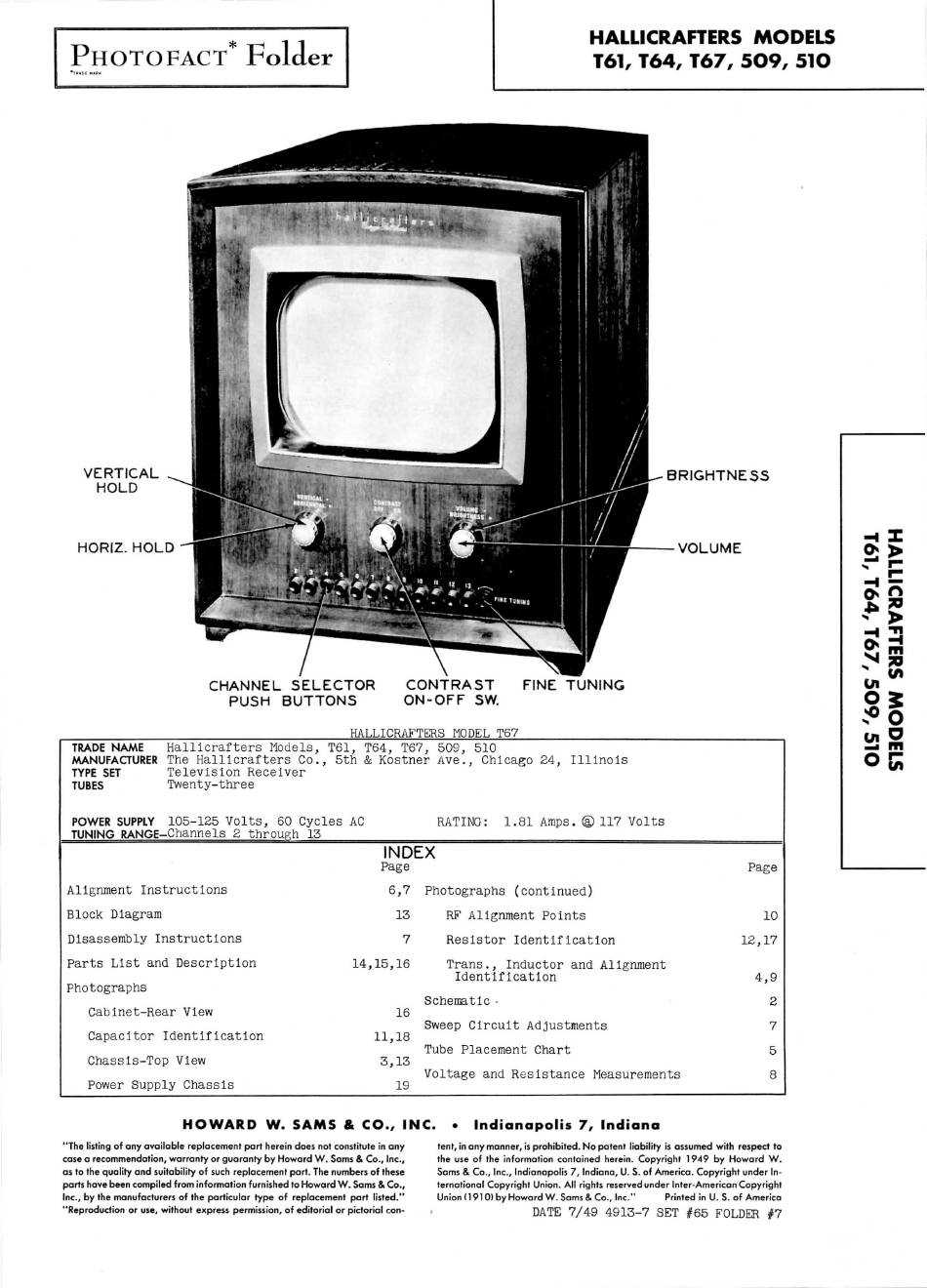

PHOTO FACT* Folder
HALLICRAFTERS MODELS
T61, T64, T67, 5O9, 51O
VERTICAL
HOLD
HORIZ. HOLD
BRIGHTNESS
VOLUME
CHANNEL SELECTOR
PUSH BUTTONS
CONTRAST
ON-OFF SW.
FINE TUNING
HALLICRAFTERS MODEL T67
TRADE NAME Halllcrafters Models, T61, T64, T67, 509, 510
MANUFACTURER The Hallicrafters Co., 5th & Kostner Ave., Chicago 24, Illinois
TYPE SET Television Receiver
TUBES Twenty-three
POWER SUPPLY 105-125 Volts, 60 Cycles AC
TUNING RANGE-Channels 2 through 12
RATING: 1.81 Amps. @ 117 Volts
Alignment Instructions
Block Diagram
Disassembly Instructions
Parts List and Description
Photographs
Cabinet-Rear View
Capacitor Identification
Chassis-Top View
Power Supply Chassis
INDEX
Page
6,7 Photographs (continued)
13
7
14,15,16
16
11,18
3,13
19
RF Alignment Points
Resistor Identification
Trans., Inductor and Alignment
Identification
Schematic •
Sweep Circuit Adjustments
Tube Placement Chart
Voltage and Resistance Measurements
Page
10
12,17
4,9
2
7
5
-I X
(^ ^
SE
o> o
* >
-• 3
S3
in *"
HOWARD W. SAMS & CO., INC. • Indianapolis 7, Indiana
"The listing of any available replacement part herein does not constitute in any
case a recommendation, warranty or guaranty by Howard W. Sams & Co., Inc.,
as to the quality and suitability of such replacement part. The numbers of these
parts have been compiled from information furnished to Howard W. Sams & Co.,
Inc., by the manufacturers of the particular type of replacement part listed."
"Reproduction or use, without express permission, of editorial or pictorial con-
tent, in any manner, is prohibited. No patent liability is assumed with respect to
the use of the information contained herein. Copyright 1949 by Howard W.
Sams & Co., Inc., Indianapolis 7, Indiana, U. S. of America. Copyright under In-
ternational Copyright Union. All rights reserved under Inter-American Copyright
Union (1 91 0) by Howard W. Sams & Co., Inc." Printed in U. S. of America
DATE 7/49 4913-7 SET #65 FOLDER #7
