INNOVAPLAS 9075-RGB-R User Manual

LIGHT FIXTURE # 9075-RGB-R
THIS GUIDE CONTAINS IMPORTANT SAFETY INSTRUCTIONS.
WARNING
Before installation, carefully
read the warnings and
installation instructions.
Risk of electrical shock.
Failure to follow the safety
instructions and warnings
TABLE OF CONTENTS
A) Light installation on the step.
B) Securing and instaling the
electrical cord and IR receiver.
C) Before plugging in the product.
D) Bulb replacement.
E) Winter storage.
F) Safety instructions.
TOOLS REQUIRED
Conforms to CSA C22.2 no.89
REV. 15/06/10
SAVE THESE INSTRUCTIONS.
A

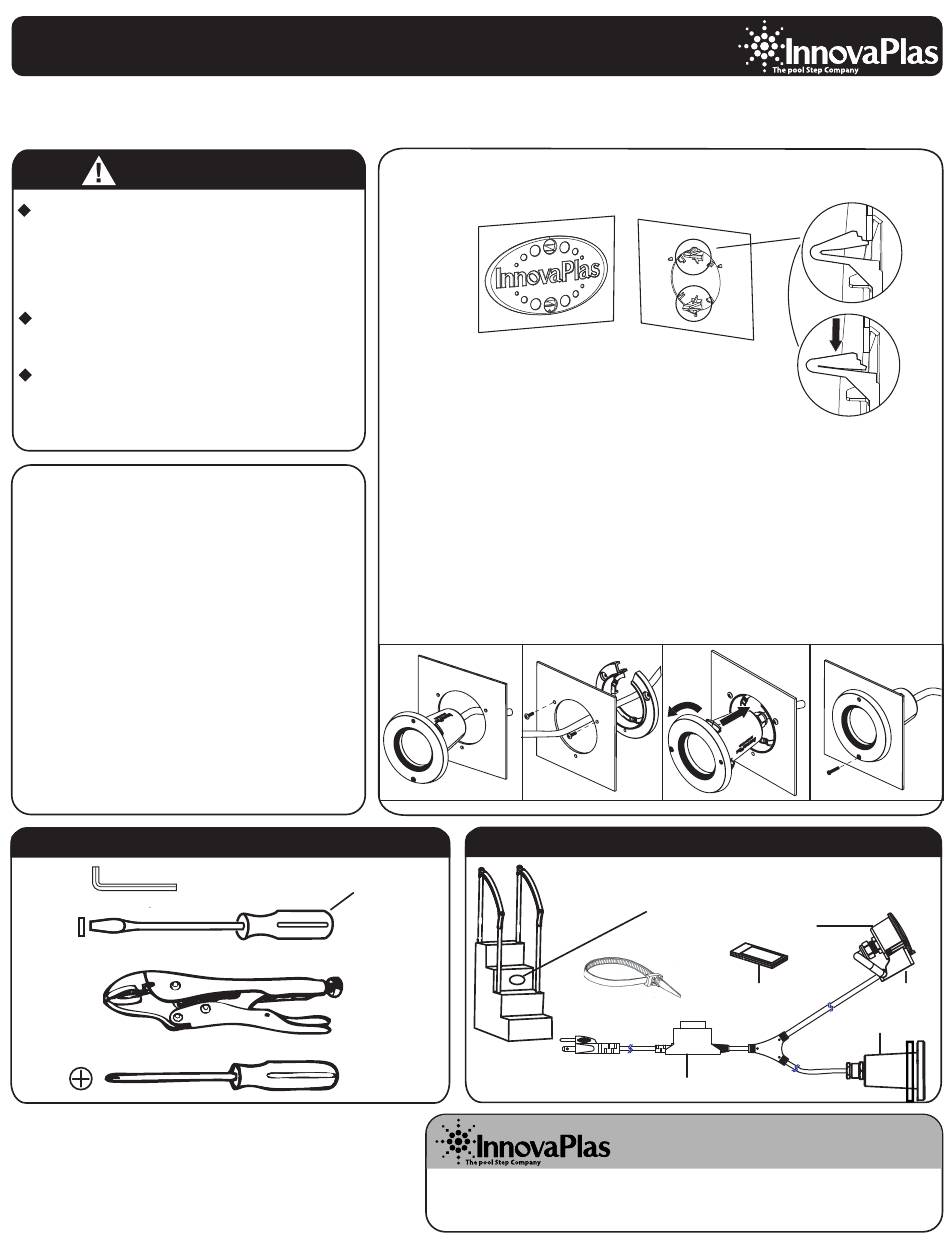

LIGHT INSTALLATION ON THE STEP
1) Assemble the step according to enclosed instructions. Keep
step dry during installation. Make sure transformer stays dry at
all times.
2) Remove the Innovaplas round cap from the step by
compressing the 2 clips at the back.
3) Insert the lighting fixture from the outside of the step.
4) Pass mounting ring through front of hole and fasten using the 2 screws provided.
5) Insert light fixture by aligning the ring and turning 1/4 turn towards left.
6) Apply locking screw. Plug it in.
IMPORTANT: Use supplied tie-wraps to attach electric cord to a post as shown.
Make sure transformer is located outside the pool.
3
(Not Included)
for light bulb
replacement
MANUFACTURER
4
REQUIRED FOR SKU # 9075-RGB-R
COMPATIBLE WITH ANY INNOVAPLAS STEP
CONTAINING THE INNOVAPLAS NAMEPLATE
90 days on the water tight seal and
manufacturer defects. Replacement only.
WARRANTY
2
5 6
Receiver
x 3
Remote
Transformer
LIMITED WARRANTY
Receiver
base
Light
