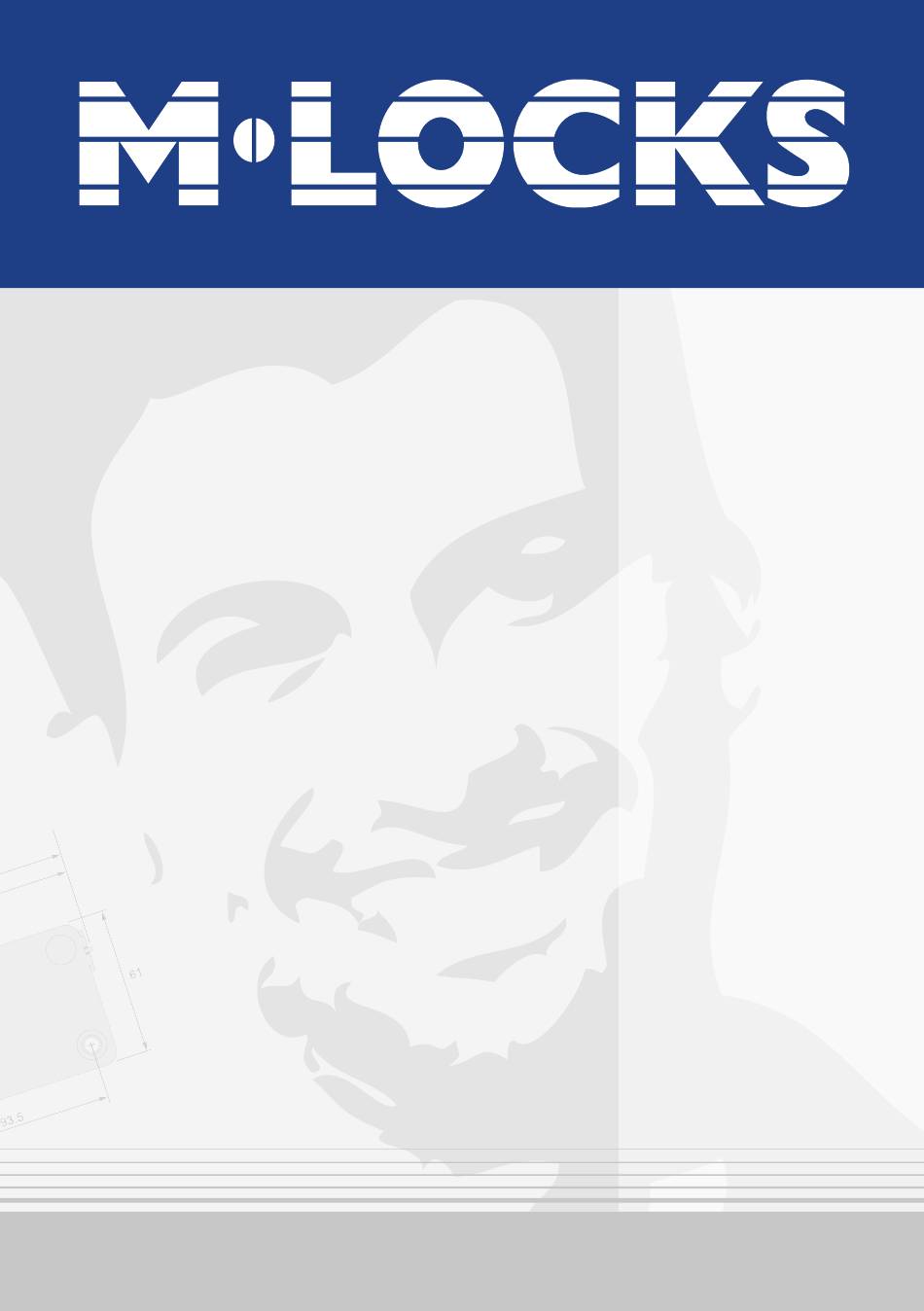

- Page 1 Echo Mounting instructions V02 EN M•LOCKS BV Vlijtstraat 40 • 7005 BN Doetinchem • The Netherlands • www.m-locks.com...
- Page 2 Metal housing mat chrome, white front with hard plastic keyboard with integrated battery compartment and Dallas reader. The Echo can be mounted both fixed and turnable. The angled housing with ribbed edges provides excellent grip, when turning the keyboard. The integrated battery compartment in the bottom of the...
- Page 3 Echo housing opens with a slider. The connection cable to the lock is approximately 30 cm. The entry unit is delivered with two springs and two pins. Use the metal pin for fixed mounting. The plasic pin has to be...
- Page 4 Rotate the housing clockwise until it locks into 12:00 o’clock position. Attention: The Echo entry unit can no longer be removed! MOUNTING INSTRUCTIONS FOR TURNABLE MOUNTING The diameter of the door opening for the connection cable should be minimum 9 mm , maximum 12 mm.
- Page 5 Echo Hold the base plate against the mounting surface so that the ‘T’ (upside down) is to be read at the bottom. Fasten the plate hand-tight with the two supplied moun- ting screws. We recommend thread-locking fluid (eg Loctite) for securing the screws. Please grease those parts where friction is expected lightly.
- Page 6 The lock can be opened by turning the input unit housing clockwise, and closing it counterclockwise. Attention: The Echo entry unit can no longer be removed! Connect the battery to the battery clip, carefully store the battery in the battery compartment on the bottom of the housing and then close it with the slide.
- Page 7 Echo www.m-locks.com...
- Page 8 M•LOCKS BV Vlijtstraat 40 • 7005 BN Doetinchem • The Netherlands • www.m-locks.com...
