Summary of Contents for Veltia BTTS

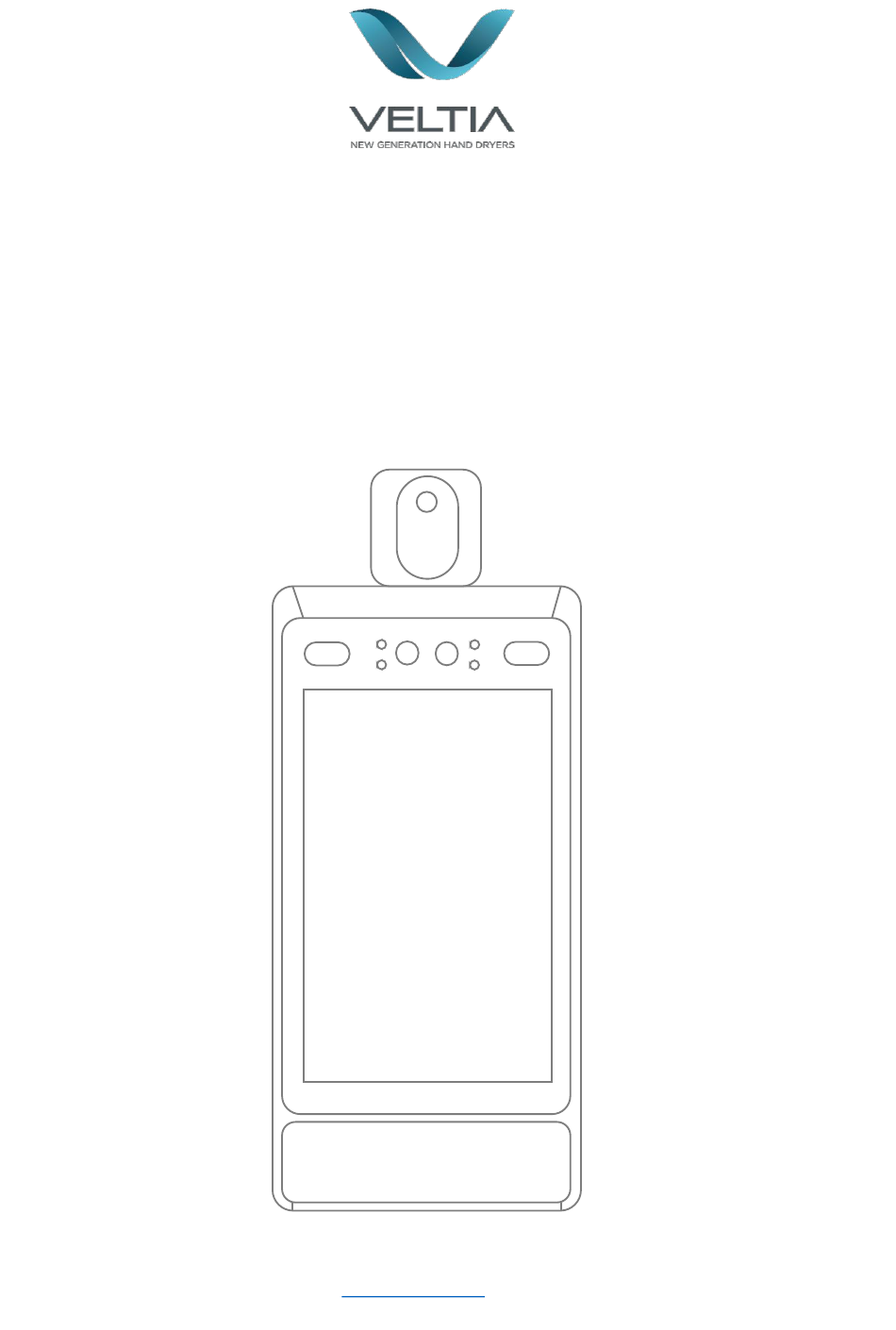

- Page 1 INSTRUCTIONS MANUAL Thermal detector IR + Facial recognition system VELTIA BTTS Mod. www.veltia.com...
- Page 2 DETAIL: Thermal imaging product Fill light Camera Touch screen Card reader NFC Digital speaker Reset key USB reader Wiring terminals SIM card slot...
-
Page 3: Content Box
CONTENT BOX: 1 x Terminal 1 x Power adapter 1 x Instructions Manual 2 x Terminal cables 1 x Conversion cable (OPTIONAL) Note: Before using the device, make sure all accessories are included in the box. DESCRIPTION OF THE TERMINALS: GROUP FUNCTION COLOR... -
Page 4: Terminal Connection
TERMINAL CONNECTION Note: These figures are for reference only. -
Page 5: Sim Card Installation
SIM CARD INSTALLATION: • Put the SIM card correctly in the slot. • Make sure the SIM card is in the right direction. STARTING THE SYSTEM: • Connect the cable to the terminals of the device. • Connect the power cable to the terminal cable. •... -
Page 6: Wall Mount
WALL MOUNT: • Drill holes in the wall where you want to install the terminal, taking into account the distance between holes in the mounting plate. • Use the supplied self-tapping screws to fix the bracket plate to the wall. •... - Page 7 MOUNTING ON ACCESS TURNSTILE: • Pass the cable through the turk, and through the hole of the turnstile holder and guide it through the holder. • Plug the wiring terminals into the device. • Stand upright and make sure the stand and top panel of the pedestal are vertical. •...
