Installation Guide and
Product Specifications

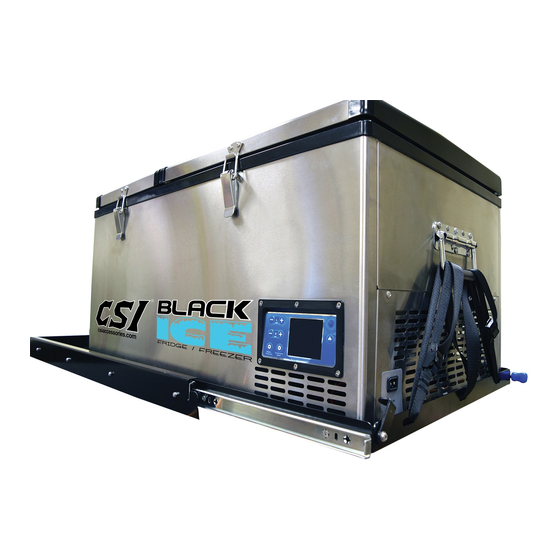

CSI REFRIGERATOR/FREEZER SLIDE
PART#W57 AND #W58
IMPORTANT
Read instructions before operation
(For California Residents)
WARNING: These products can expose you to chemicals including LEAD and DEHP which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to
www.P65WARNINGS.CA.GOV. Wash hands following installation or handling.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for CSI W57
- Page 1 Installation Guide and Product Specifications CSI REFRIGERATOR/FREEZER SLIDE PART#W57 AND #W58 IMPORTANT Read instructions before operation (For California Residents) WARNING: These products can expose you to chemicals including LEAD and DEHP which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to...
- Page 2 PLEASE READ ALL INSTRUCTIONS AND THE SAFETY SECTION CAREFULLY BEFORE USING YOUR REFRIGERATOR/FREEZER SLIDE. KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. PART#W57 Vehicle Mount with slide for #W53 Refrigerator/Freezer PART#W58 Vehicle Mount with slide for #W55 Refrigerator/Freezer What’s Included in the box: •...
- Page 3 PART#W57/#W58 VEHICLE MOUNT WITH SLIDE FOR REFRIGERATOR/FREEZER Installation Instruction: 1. Mount the slide to a solid surface, press the lock and pull slide to the middle to access mounting holes 2. Use a minimum of 4 mounting holes 3. Tighten all fasteners 4.
- Page 4 PART#W57 1 Slide Dimension: 31”L x 18”W x 2.5”H VEHICLE MOUNT WITH SLIDE FOR REFRIGERATOR/FREEZER DIMENSIONS 2.5” Screw Hole 8.6” 8.6” 8.6” PART#W58 2 Slide Dimension: 37”L x 23.5”W x 2.5”H VEHICLE MOUNT WITH SLIDE FOR REFRIGERATOR/FREEZER DIMENSIONS 2.5” Screw Hole 10.2”...
