ETBAC Installation Guide

Requirements:

• PC with web browser
• CAT5 Crossover cable
or
Ethernet HUB or Switch
Access the ETBAC configuration screen using your internet browser as follows:
1. Connect the crossover cable to the ETBAC, or plug it directly into the Ethernet HUB or
switch.
2. Connect the ETBAC to a 12-30VAC/VDC power supply.
3. Plug in the PC or laptop to the hub (or directly to the ETBAC if using a crossover cable).
NOTE: Many modern Ethernet ports on PCs have auto-crossover detection and it may be
possible to use a standard CAT5 cable in this case, although it is not guaranteed.
4. Ensure that there is only one PC attached the the HUB in this small LAN.
5. Observe the lights on the hub and ETBAC to ensure that a link is made. The upper-left
LED on the RJ-485 connector will light green when a link is made. This may take a few
seconds after power up, as the device needs to boot up.
6. Set your PC's IP Address to 192.168.88.90, with a subnet mask of 255.255.255.252.
Refer to your operating system specifics as to how to set a static IP Address. A good
reference is available here:
http://www.elkor.net/articles/static_ip
7. Open your web browser to the following URL:
http://192.168.88.89

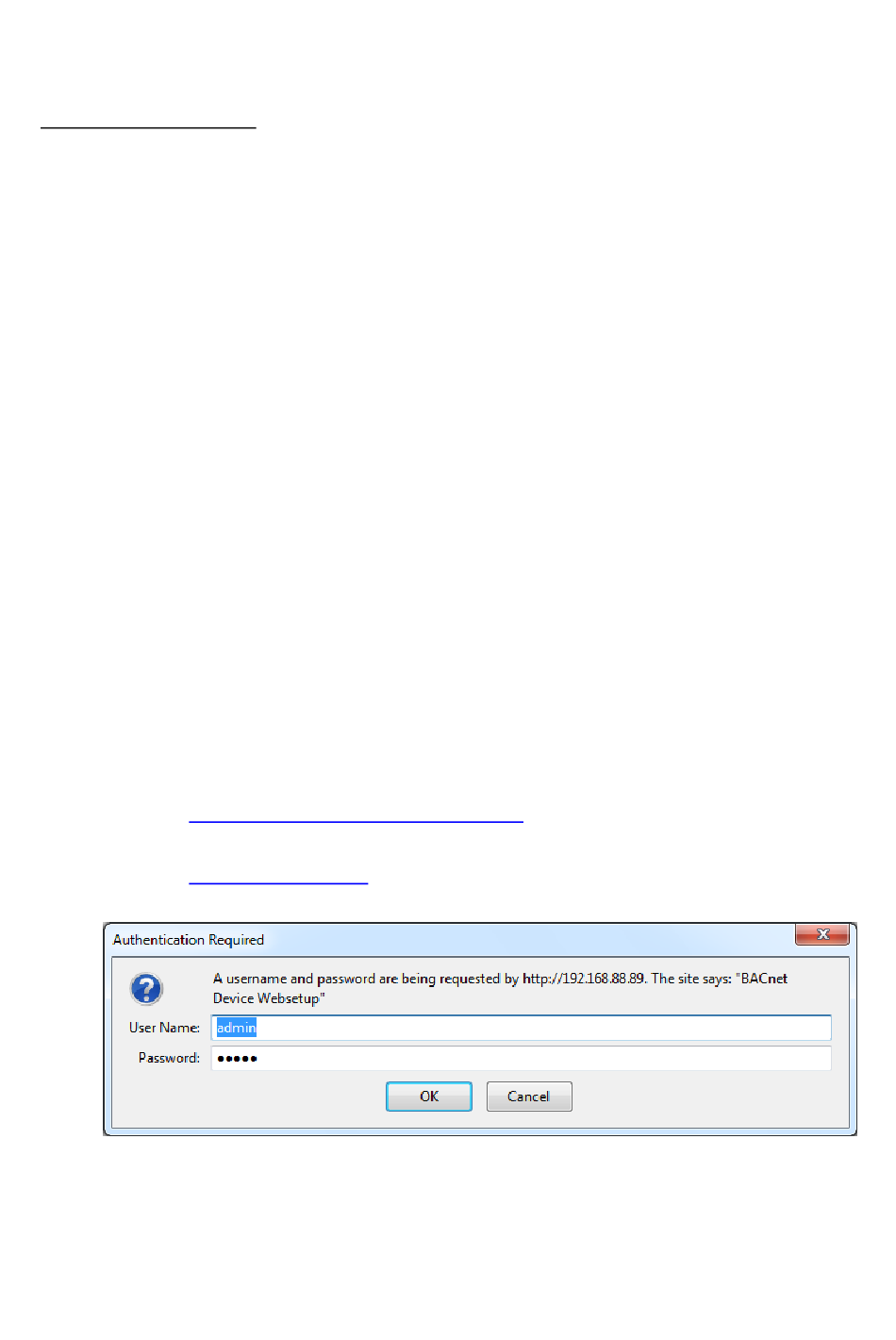

8. You will be prompted to login to the device "BACnet Device Websetup"
9. The default user is admin and the default password is admin
10. From the browser interface, you can change the IP configuration using the "BACnet/IP
Settings" menu.
The ETBAC module must be configured before use!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ETBAC and is the answer not in the manual?

Questions and answers

Summary of Contents for ELKOR ETBAC

  • Page 1 2. Connect the ETBAC to a 12-30VAC/VDC power supply. 3. Plug in the PC or laptop to the hub (or directly to the ETBAC if using a crossover cable). NOTE: Many modern Ethernet ports on PCs have auto-crossover detection and it may be possible to use a standard CAT5 cable in this case, although it is not guaranteed.
  • Page 2 Once settings have been changed, you much Activate Configuration for the changes to take place. 11. Once the settings have been activated, the device will reboot. You may place the device on the intended LAN/subnet. Ensure you can ping the device from a command prompt. Additionally, the configuration web page may now be accessed via the newly assigned IP address (provided it is on the same LAN).
