solexx Garden Master G-512 Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
ADAPT8, INC - MAKERS OF SOLEXX™ GREENHOUSES

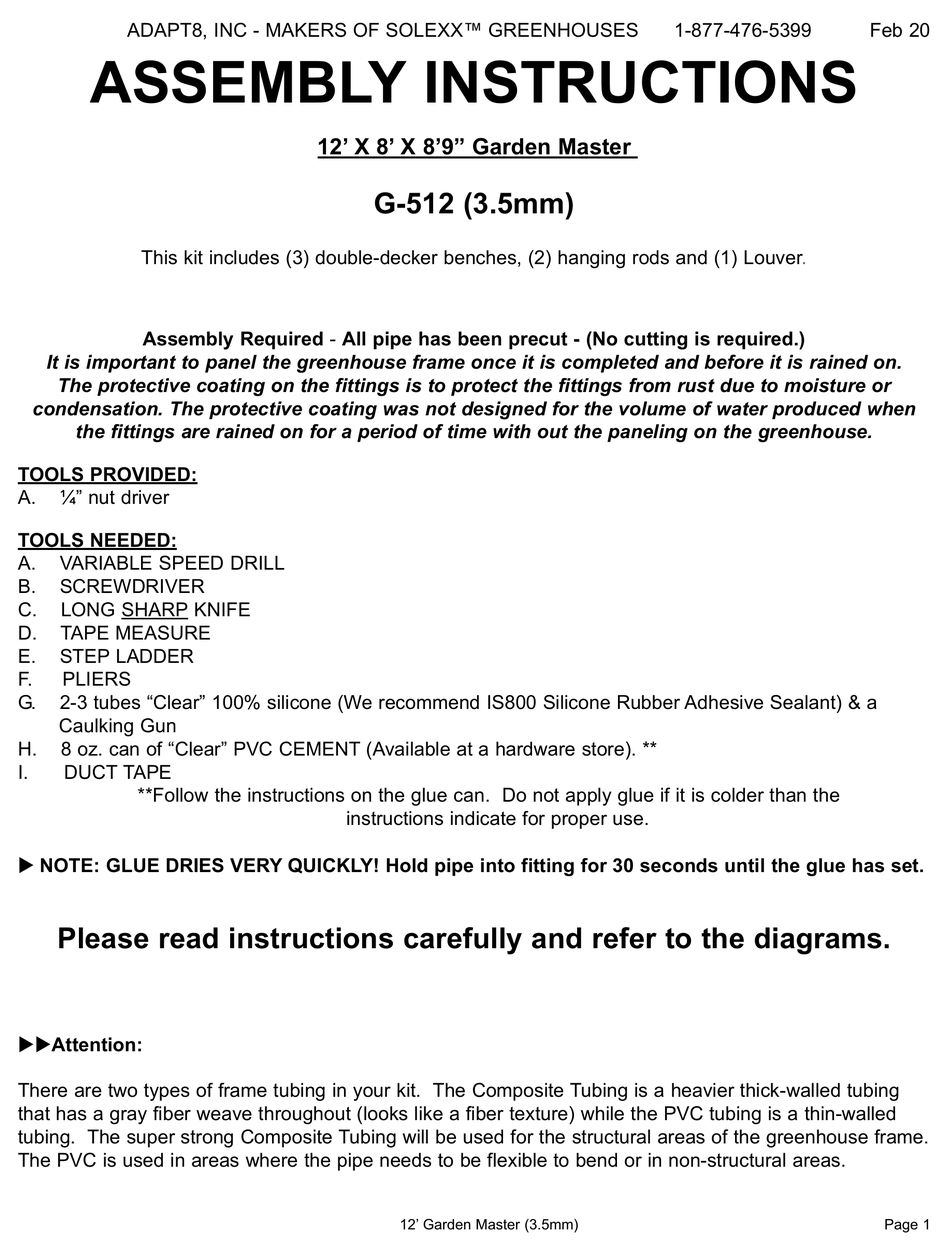

ASSEMBLY INSTRUCTIONS
This kit includes (3) double-decker benches, (2) hanging rods and (1)
Assembly Required - All pipe has been precut - (No cutting is required.)
It is important to panel the greenhouse frame once it is completed and before it is rained on.
The protective coating on the fittings is to protect the fittings from rust due to moisture or
condensation. The protective coating was not designed for the volume of water produced when
the fittings are rained on for a period of time with out the paneling on the greenhouse.
TOOLS PROVIDED:
A.
¼" nut driver
TOOLS NEEDED:
A.
VARIABLE SPEED DRILL
B.
SCREWDRIVER
C.
LONG SHARP KNIFE
D.
TAPE MEASURE
E.
STEP LADDER
F.
PLIERS
G.
2-3 tubes "Clear" 100% silicone (We recommend IS800 Silicone Rubber Adhesive Sealant) & a
Caulking Gun
H.
8 oz. can of "Clear" PVC CEMENT (Available at a hardware store). **
I.
DUCT TAPE
**Follow the instructions on the glue can. Do not apply glue if it is colder than the
u NOTE: GLUE DRIES VERY QUICKLY! Hold pipe into fitting for 30 seconds until the glue has set.
Please read instructions carefully and refer to the diagrams.
uuAttention:
There are two types of frame tubing in your kit. The Composite Tubing is a heavier thick-walled tubing
that has a gray fiber weave throughout (looks like a fiber texture) while the PVC tubing is a thin-walled
tubing. The super strong Composite Tubing will be used for the structural areas of the greenhouse frame.
The PVC is used in areas where the pipe needs to be flexible to bend or in non-structural areas.
12' X 8' X 8'9" Garden Master
G-512 (3.5mm)
instructions indicate for proper use.
12' Garden Master (3.5mm)
1-877-476-5399
Louver.
Feb 20
Page 1
