Track-Vision TRV10300 Owner's Manual

Heavy duty waterproof 7" monitor
Hide thumbs

Advertisement

Quick Links

Download this manual
HEAVY DUTY
WATERPOOF 7'' MONITOR

Advertisement

loading
Need help?

Need help?

Do you have a question about the TRV10300 and is the answer not in the manual?

Questions and answers

Related Manuals for Track-Vision TRV10300

Summary of Contents for Track-Vision TRV10300

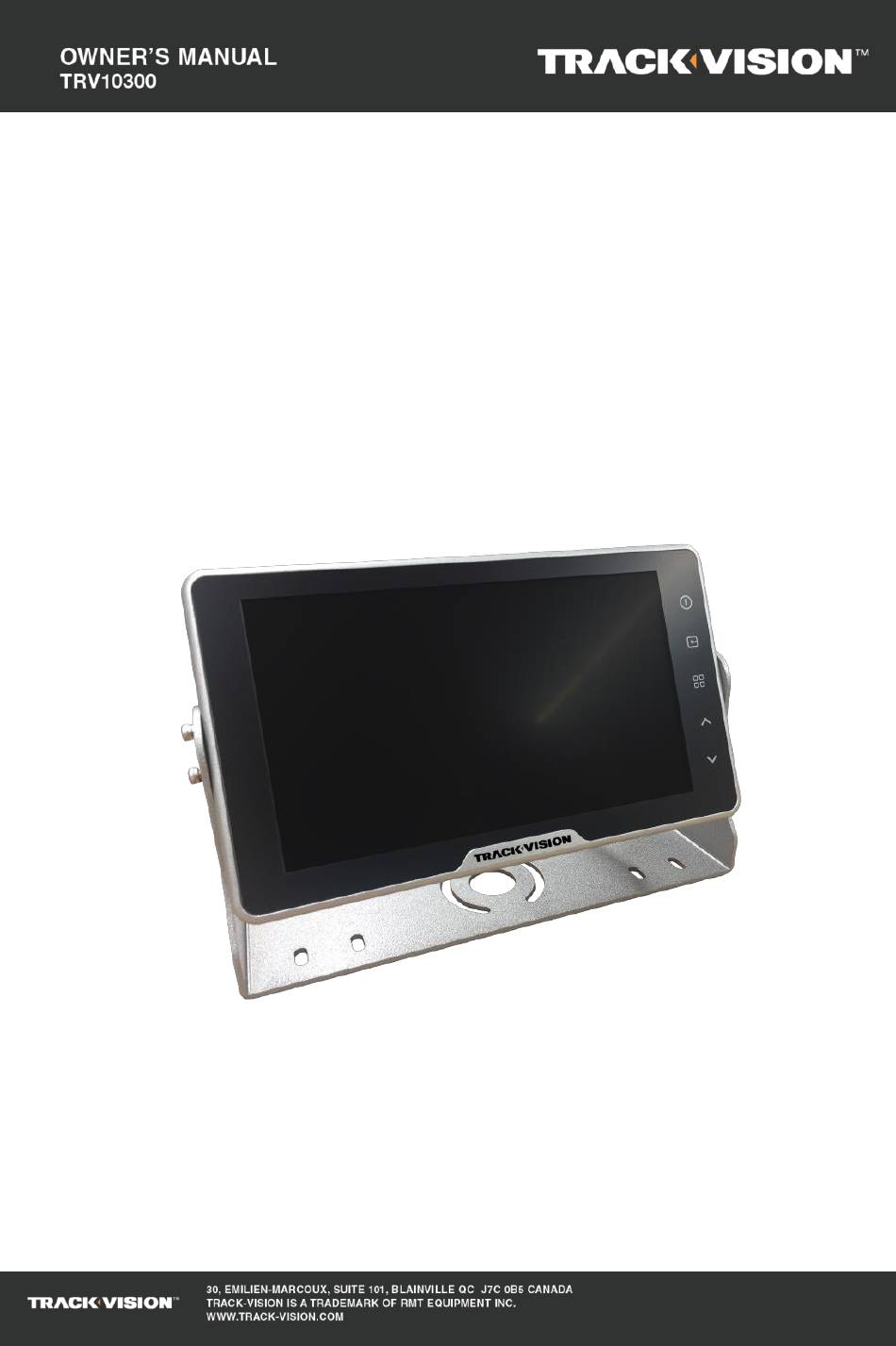

  • Page 1 HEAVY DUTY WATERPOOF 7’’ MONITOR...
  • Page 2 Safety Instructions Do not use a damaged or loose connector.  This may cause an electric shock, short circuit or fire Do not pull the connector by the wire or touch the connector with wet hands  This may cause an electric shock, short circuit or fire Do not place the monitor face down.

  • Page 3: Key Functions

    1. TRACK-VISION MONITOR ① LCD SCREEN: WVGA (800x480) ② DAYLIGHT SENSOR: Automatic brightness control sensor ③ TOUCH KEYS: Power, Enter, Menu, Up, Down 2. KEY FUNCTIONS ④ POWER • Press button to turn the monitor on / off. ⑤ ENTER •...

  • Page 4: Display Menu

    • Press to switch as below steps. DISPLAY MENU : BRIGHT -> CONTRAST -> COLOR -> SHARPNESS -> TINT-> (Marker width) -> (Marker height) • Press to switch as below steps in the setting menu. SETTING MENU: CAMERA1 -> CAMERA2 -> CAMERA3 -> CAMERA4 ->...

  • Page 5: Setting Menu

    4. SETTING MENU • Press button to enter setting menu (hold the button few seconds). • Press to switch as below steps in the setting menu. SETTING MENU: CAMERA1 -> CAMERA2 -> CAMERA3 -> CAMERA4 -> SPLIT1 -> SPLIT2 -> SPLIT3 -> SYSTEM CONIFG. •...
  • Page 6 ④ TRIGGER SUSTAIN: 0~20 sec Each trigger’s delay time is adjustable from 0sec to 20sec. ⑤ MARKER DISPLAY: Off/ Trigger/ Always TRIGGER: Distance line display when trigger signal input. ALWAYS: Display always distance line. ⑥ MARKER TYPE: Type A / Type B Type A Type B ⑦...
  • Page 7 2) SPLIT SETTING MENU ■ SPLIT1 SETTING ▣ SPLIT MODE :QUAD ▣ SPLIT TYPE :TypeA ▣ AUDIO SEL :CAM1 ▣ CH1 :CAM1 ▣ CH2 :CAM2 ▣ CH3 :CAM3 ▣ CH4 :CAM4 ① SPLIT MODE : DUAL/ TRIFORM/ QUAD DUAL: Split screen TRIFORM : Triple screen QUAD : Quad screen ②...
  • Page 8 TRIFORM QUAD ③ AUDIO SEL: Off/ CAM1/ CAM2 CAM1: Audio source is CAM1. CAM2: Audio source is CAM2.
  • Page 9 3) SYSTEM CONFIG MENU ■ SYSTEM CONIFG ▣ AUTO POWER ▣ AUTO DIMMER :OFF ▣ AUTO SWITCHING :OFF ▣ SPEED SWITCH :OFF ▣ LANGUAGE :ENGLISH ▣ FACTORY RESET :Ver1.0 ① AUTO POWER: On/ Auto/ Off ON: When power is input, screen is displayed automatically. AUTO: Follow last selected condition.
  • Page 10 4) SPEED SWITCH SETTING (OPTION) ■ SPEED SWITCH SETTING ▣ FREQUENCY(Hz) ▣ CH for UNDER FREQUENCY :CAM1 ▣ OVER FREQUENCY ACTION :OFF ▣ CH for OVER FREQUENCY :CAM2 • When speed switch is ON in system config, user can set sub item value in speed switching setting.

  • Page 11: Specifications

    SPECIFICATIONS Power Input DC 10V~32V Power Consumption Max. 12 Watt Video System NTSC / PAL compatible Panel 7" Diagonal Resolution 800 (H) x 480 (V) x 3 (RGB) Format 16:9 or 4:3 wide Camera input(4CH) Mini DIN 4P, 1Vp-p 75Ω -30 ℃...
